CRL 90º Hold Open Size 3 Spring Heavy Weight Floor Mounted Door Closer
CRL 90º Hold Open Size 3 Spring Heavy Weight Floor Mounted Door Closer
Regular price
$483.13 CAD
Regular price
Sale price
$483.13 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8534
Shipping Weight: 13.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 13.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Auxiliary | Stop Recommended Yes |

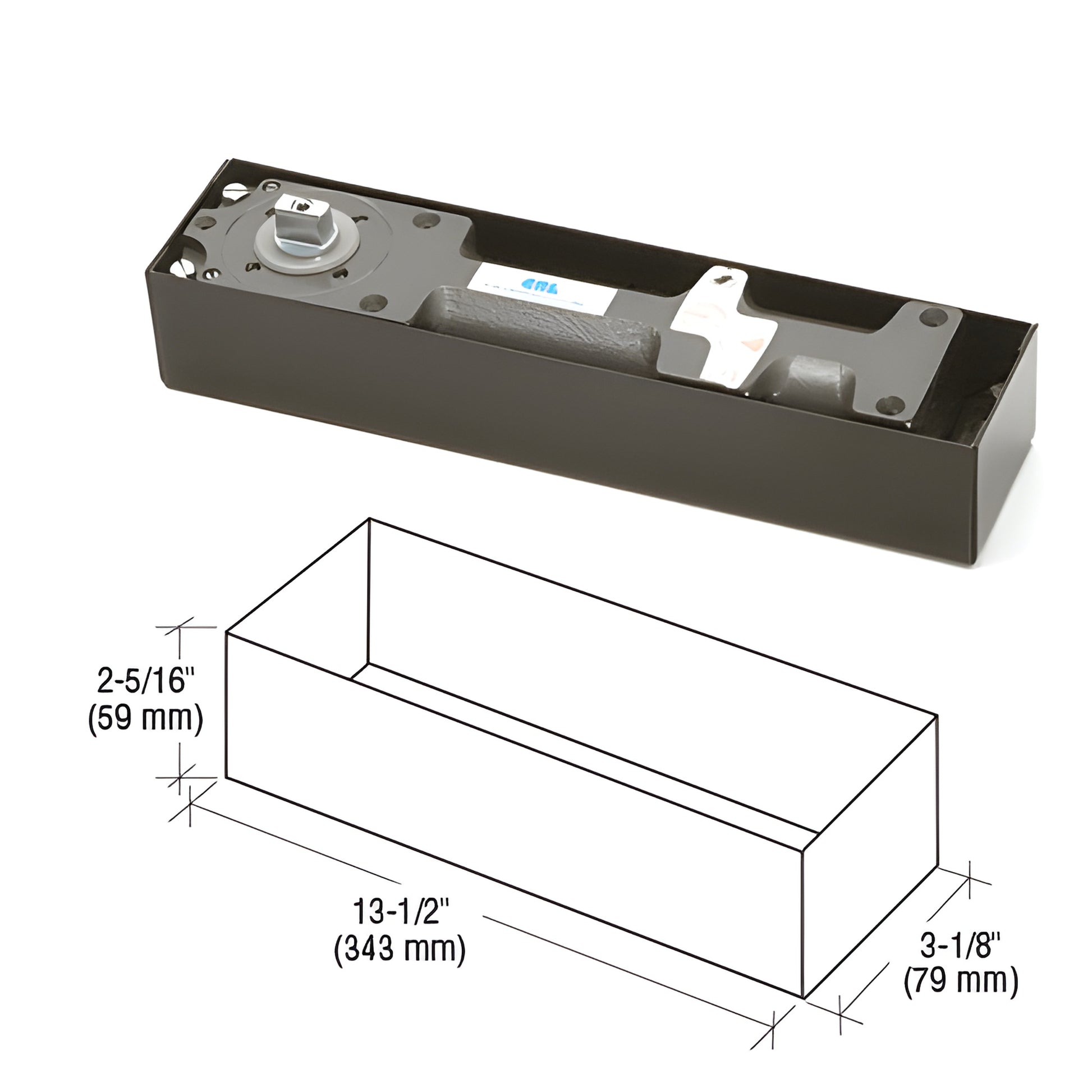

| Body Height | 2-5/16 |
| Body Length | 13-1/2 |
| Body Width | 3-1/8 |
| Closer | Body With Box Yes |
| Closer | Type Floor Closer |
| Door Height | 96 |
| Handing | Double Acting |
| Hold Open | 90° |
| Includes CRL | 85CB, CRL9040S3 |
| Independent | Closing and Latching Valves Yes |
| Interchangeable | Spindles Yes |
| Interior | Or Exterior Doors Yes |
| Maximum Door Width - Exterior 36 in. | (0.96 m) |
| Maximum Door Width - Interior 42 in. | (1.07 m) |
| Maximum Weight Center Hung | 800 Pounds |
| Opening Degree | 90 |
| Recommended | Door Type Aluminum, Hollow Metal |
| Replacement Parts CRL | 85CB, CRL9040S3 |
| Similar CRL | 846, J993HOD |
| Spindle | Included Yes |
| Spring Size | 3 |
| U | L Listed Yes |
Overview
The CRL8500 Series Floor Mounted Door Closer is the ideal solution for enhancing CRL's Door Rail System, featuring interchangeable spindle heights and independent closing and latching speed adjustments.
Designed to handle doors weighing up to 800 lbs (363 kg), this door closer comes in 90º or 105º Hold Open or No Hold Open models and offers three spring sizes for versatile installation.
With a 5-year limited warranty and UL listing, the device includes a standard 1/8" (3 mm) collar height spindle, easily swapped with other spindles to match various floor heights.
Accessories such as cover plates, pivots, and center-hung and offset arms are available, making it a comprehensive choice for any entryway.
Note: For optimal performance and to prevent damage, an auxiliary floor or overhead door stop is recommended.
Designed to handle doors weighing up to 800 lbs (363 kg), this door closer comes in 90º or 105º Hold Open or No Hold Open models and offers three spring sizes for versatile installation.
With a 5-year limited warranty and UL listing, the device includes a standard 1/8" (3 mm) collar height spindle, easily swapped with other spindles to match various floor heights.
Accessories such as cover plates, pivots, and center-hung and offset arms are available, making it a comprehensive choice for any entryway.
Note: For optimal performance and to prevent damage, an auxiliary floor or overhead door stop is recommended.
