CRL Size 4 Heavy-Duty Floor-Mounted Spring Door Closer 90Β° Hold-Open
CRL Size 4 Heavy-Duty Floor-Mounted Spring Door Closer 90Β° Hold-Open
Regular price
$539.64 CAD
Regular price
Sale price
$539.64 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8544
Shipping Weight: 13.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Auxiliary Stop Recommended
Yes

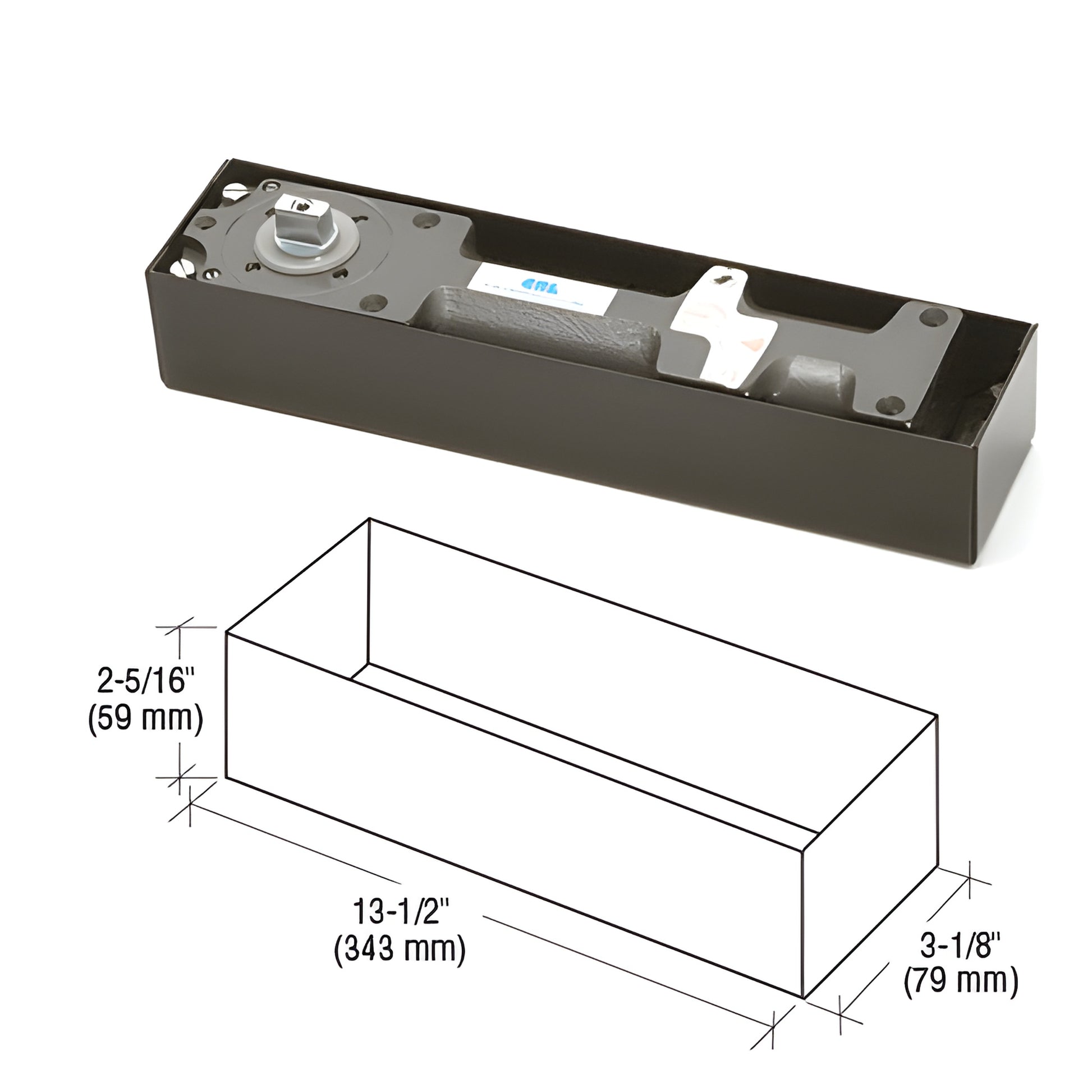

Body Height
2-5/16
Body Length
13-1/2
Body Width
3-1/8
Closer Body With Box
Yes
Closer Type
Floor Closer
Door Height
96
Handing
Double Acting
Hold Open
90Β°
Includes
CRL85CB, CRL9040S3
Independent Closing and Latching Valves
Yes
Interchangeable Spindles
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
42 in. (1.07 m)
Maximum Door Width - Interior
48 in. (1.2 m)
Maximum Weight Center Hung
800 Pounds
Opening Degree
90
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL85CB, CRL9040S3
Similar
CRL8462, J993HOD
Spindle Included
Yes
Spring Size
4
UL Listed
Yes
Overview
- Perfect floor-mounted door closer compatible with CRL's Door Rail System
- Interchangeable spindle heights for different finished floor clearances
- Independent closing and latching speed adjustments for precise control
- 5 Year Limited Warranty
- UL Listed for code-compliant installations
The CRL8500 Series Floor Mounted Door Closer (SKU: CRL8544) is a heavy-duty, floor-mounted door closer engineered for high-traffic commercial entrances and doors up to 800 lbs. (363 kg). Available in 90ΒΊ or 105ΒΊ Hold Open or No Hold Open models and three spring sizes, it accommodates most standard installations where a robust 800 lb door closer is required.
The supplied 1/8" (3 mm) collar-height standard spindle is interchangeable with optional spindles to match different finished floor heights. AccessoriesβCover Plates, Pivots, Center-Hung and Offset Armsβare available to customize installation and integrate with CRL's Door Rail System.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent damage from over-extension of the maximum allowable door swing.
SPECIFICATIONS:
Maximum Door Weight: 800 lbs. (363 kg)
Maximum Interior Door Width: 48" (1.2 m)
Maximum Exterior Door Width: 42" (1.07 m)
