CRL Size 5 Spring Heavy-Duty Floor-Mounted Door Closer 90Β° Hold-Open
CRL Size 5 Spring Heavy-Duty Floor-Mounted Door Closer 90Β° Hold-Open
Regular price
$516.91 CAD
Regular price
Sale price
$516.91 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8554
Shipping Weight: 13.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Auxiliary Stop Recommended
Yes

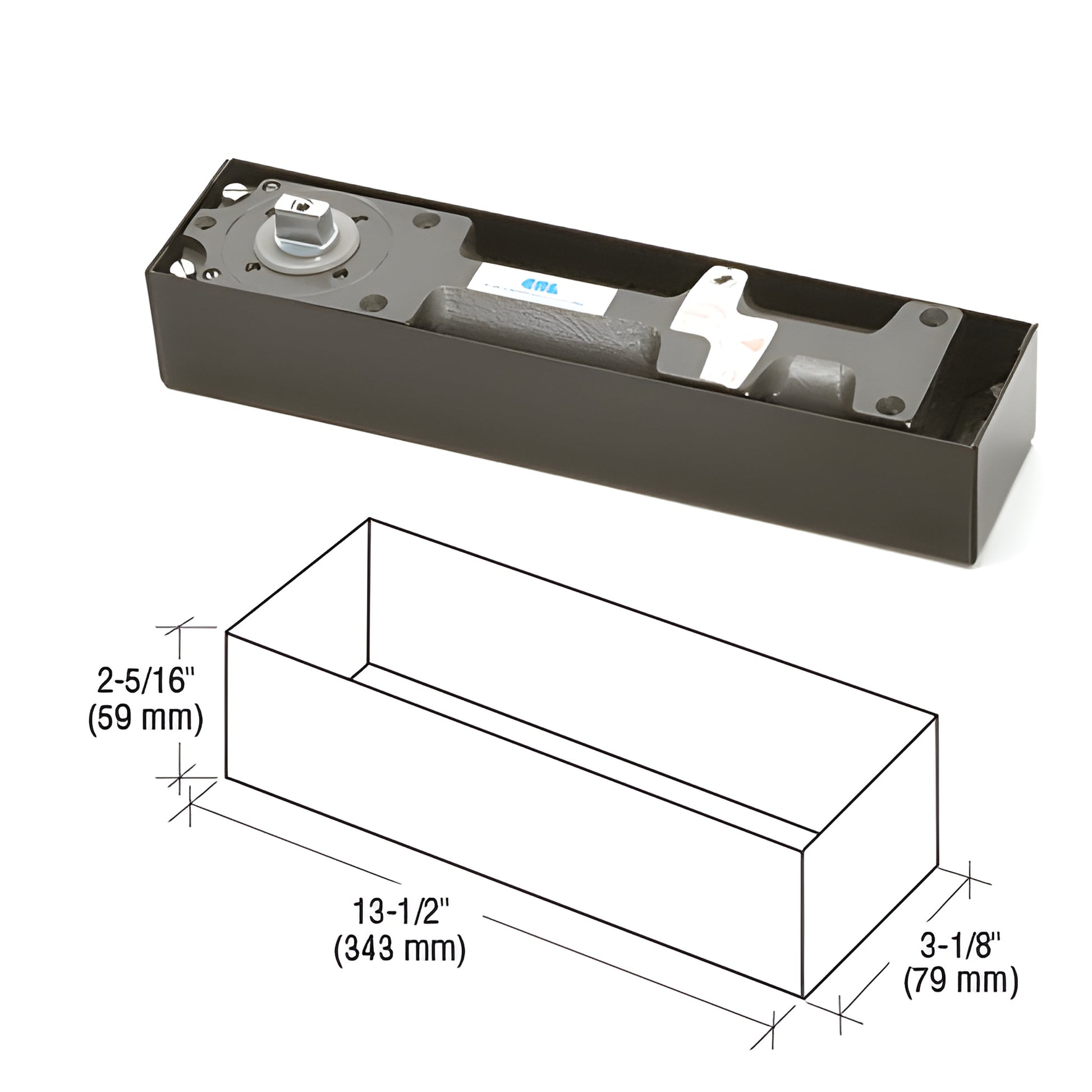

Body Height
2-5/16
Body Length
13-1/2
Body Width
3-1/8
Closer Body With Box
Yes
Closer Type
Floor Closer
Door Height
96
Handing
Double Acting
Hold Open
90Β°
Includes
CRL85CB, CRL9040S3
Independent Closing and Latching Valves
Yes
Interchangeable Spindles
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
48 Inches
Maximum Door Width - Interior
54 Inches
Maximum Weight Center Hung
800 Pounds
Opening Degree
90
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL85CB, CRL9040S3
Similar
CRL8420, CRL8462, J993HOD
Spindle Included
Yes
Spring Size
5
UL Listed
Yes
Overview
- Perfect floor-mounted door closer for CRL's Door Rail System (SKU: CRL8554)
- Interchangeable spindle heights for varied finished floor conditions
- Independent closing and latching speed adjustments for precise door control
- Available 90Β° or 105Β° hold-open or no-hold-open models
- Heavy-duty capacity β handles doors up to 800 lb (363 kg)
- 5 Year Limited Warranty β’ UL Listed
The CRL8500 Series Floor Mounted Door Closer (model reference CRL8554) is a heavy-duty floor-mounted door closer engineered for commercial and high-traffic doors. Designed to integrate with CRL's Door Rail System, it offers interchangeable spindle heights, independent closing and latching speed adjustments, and multiple hold-open options to suit most standard installations.
The supplied 1/8" (3 mm) collar-height standard spindle is interchangeable to accommodate different finished floor heights. Accessories available include cover plates, pivots, center-hung and offset arms. For durability and safety, an auxiliary floor or overhead door stop is recommended to prevent over-extension of the door and potential damage to the closer or entryway.
SPECIFICATIONS:
Maximum Door Weight: 800 lbs. (363 kg)
Maximum Interior Door Width: 54" (1.37 m)
Maximum Exterior Door Width: 48" (1.22 m)
Order the CRL8500 Series heavy-duty floor mounted door closer (CRL8554) today to upgrade your commercial entrywayβcontact CRL Customer Service for installation guidance and accessory options.
