CRL GE 90Β° Concealed Overhead Door Closer - Adjustable, No Hold-Open
CRL GE 90Β° Concealed Overhead Door Closer - Adjustable, No Hold-Open
Regular price
$281.16 CAD
Regular price
Sale price
$281.16 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8762GE
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1-1/2
Bottom Pivot Type
Threshold Mount Pivot
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
CRL6762, CRL8010FS, CRL8010S, CRL8010GE
Material
Aluminum
Maximum Door Weight
200
No Hold Open
90Β°
Package Type
Side Load GE
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Similar
CRL8962GE
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for doors 36" to 42" to meet A.D.A. opening force requirements
- Adjustable side-load bottom pivot set for threshold mounting
- 5 Year Limited Warranty
- UL Listed
The CRL Adjustable Spring Power Overhead Concealed Door Closer (SKU: CRL8762GE) is a concealed overhead door closer designed for A.D.A. door opening force compliance. Offered as a body-only retrofit with mounting clips or as a complete package that includes the door closer body, mounting clips, Type "S" side-load arm or Type "A" end-load arm, and a "DP" adjustable dual-purpose bottom pivot set or "GE" pivot set. This concealed door closer features independent dual-action valves for precise control of closing and latching speeds, and is available in 90Β° and 105Β° hold-open or no hold-open models. Closer bodies fit standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions. Additional spring sizes and hardware options are available to match door weight and site conditions.

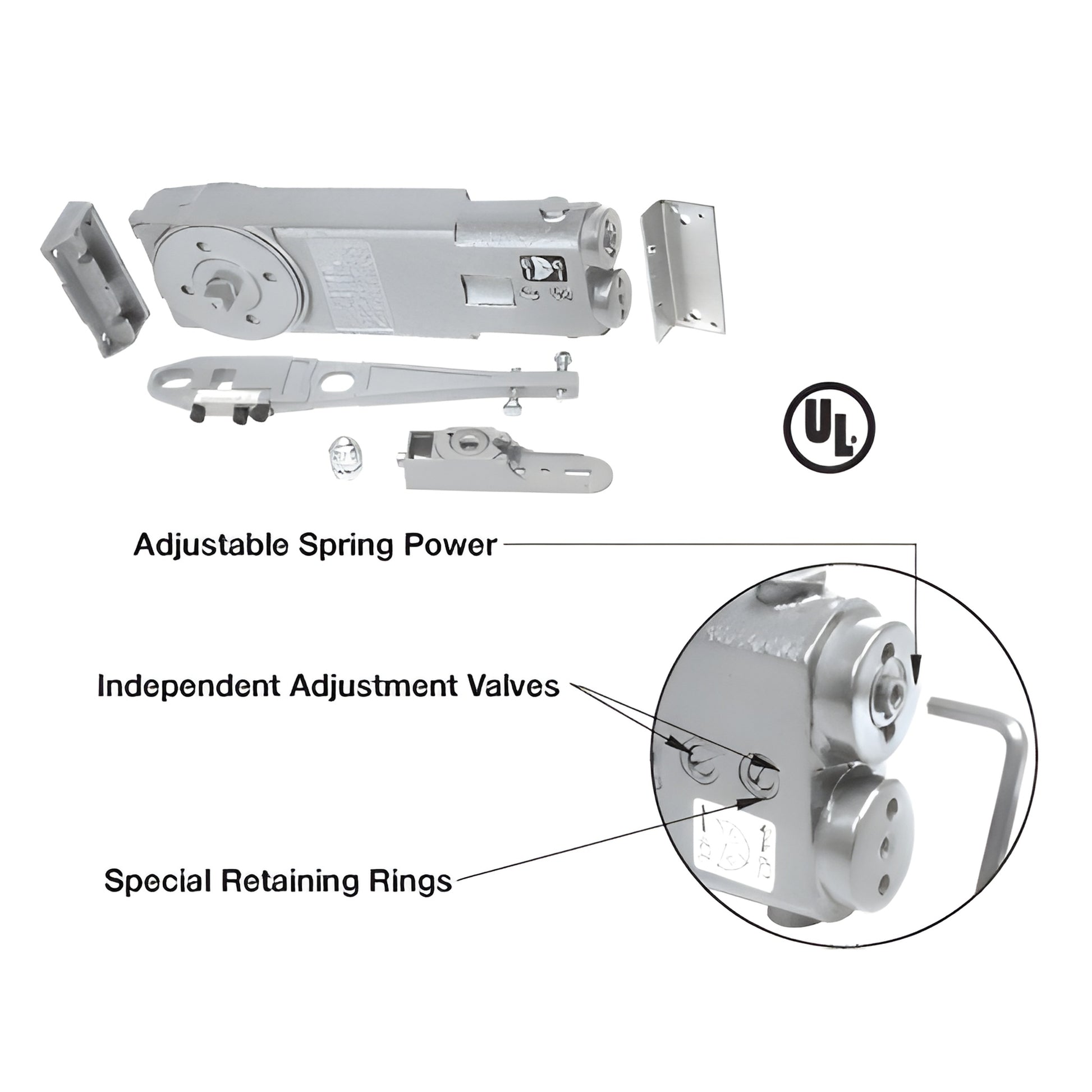

Adjustable Spring Power
Adjust spring tension from a minimum 8-1/2 lb. opening force up to medium spring sizes to accommodate site conditionsβideal for ADA door closer retrofits and adjustable concealed overhead applications.
Independent Adjustment Valves
Non-critical valves independently control Closing Speed and Latching Speed for reliable, adjustable operation.
Special Retaining Rings
Retaining rings prevent adjustment valve screws from being backed out of the door closer body, improving long-term reliability.
NOTE: Install an auxiliary floor or overhead door stop to prevent damage from over-extension of maximum allowable door swing.
Product Warning:
Closers set to comply with A.D.A. opening force requirements may not provide sufficient spring power to control and close larger or unusually heavy doors depending on site conditionsβverify spring size and hardware before installation.
