CRL ADA 5 lb Concealed Overhead Door Closer, 105° Hold-Open, Body Only

• Interchangeable with all Jackson® style overhead concealed door closers
• 20 models available
• Conveniently packaged with mounting clips, templates, and instructions
• 5-year limited warranty
• UL listed

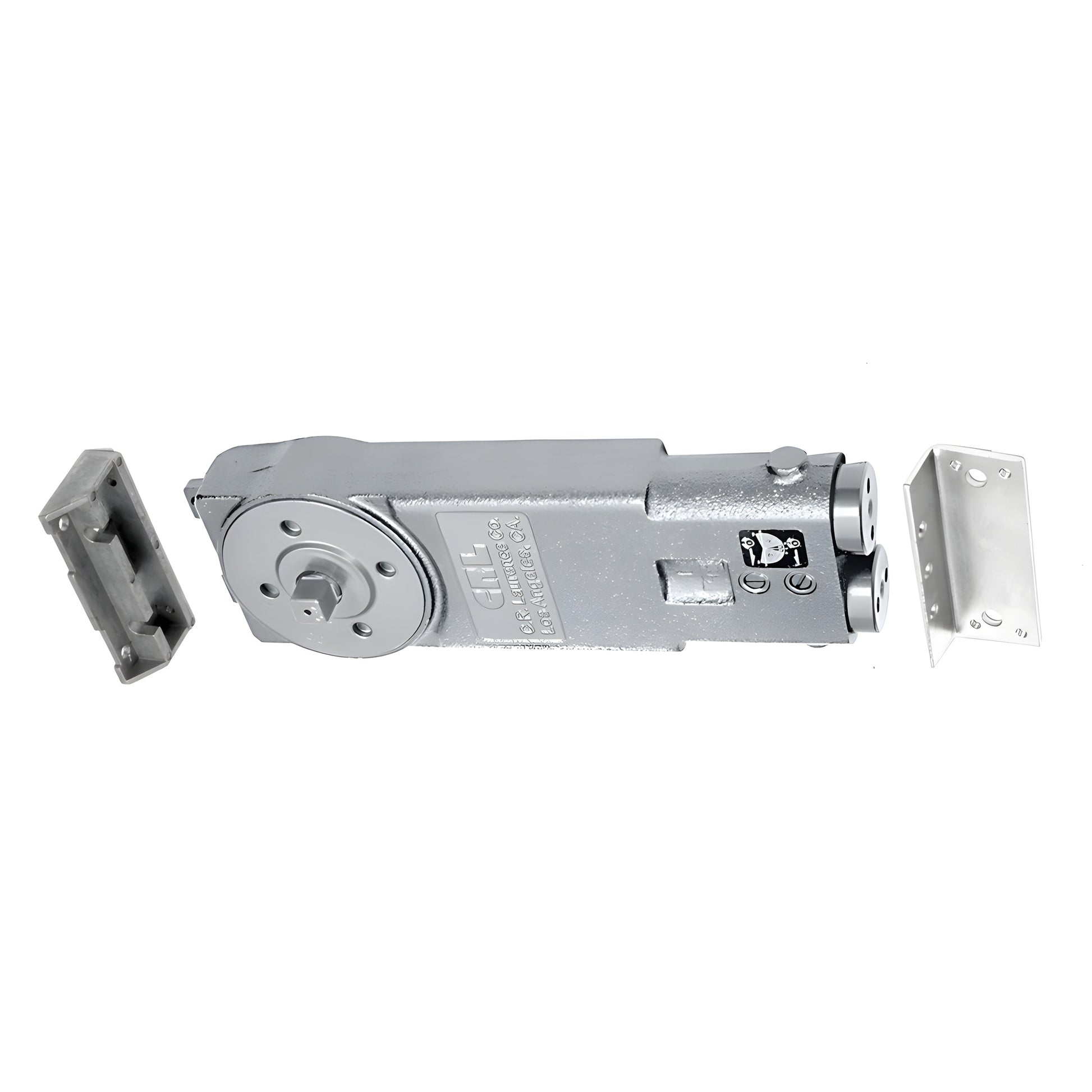

There are two advantages to buying our Door Closer Bodies with Mounting Clips (SKU: CRL6870). First, replacing a worn-out door closer body reduces cost by eliminating unnecessary hardware. Second, adding accessories lets you build the exact overhead concealed door closer package you need—select a door closer body and add pivots, arms, and other parts. Each unit ships with mounting clips, templates, and instructions for easy installation.

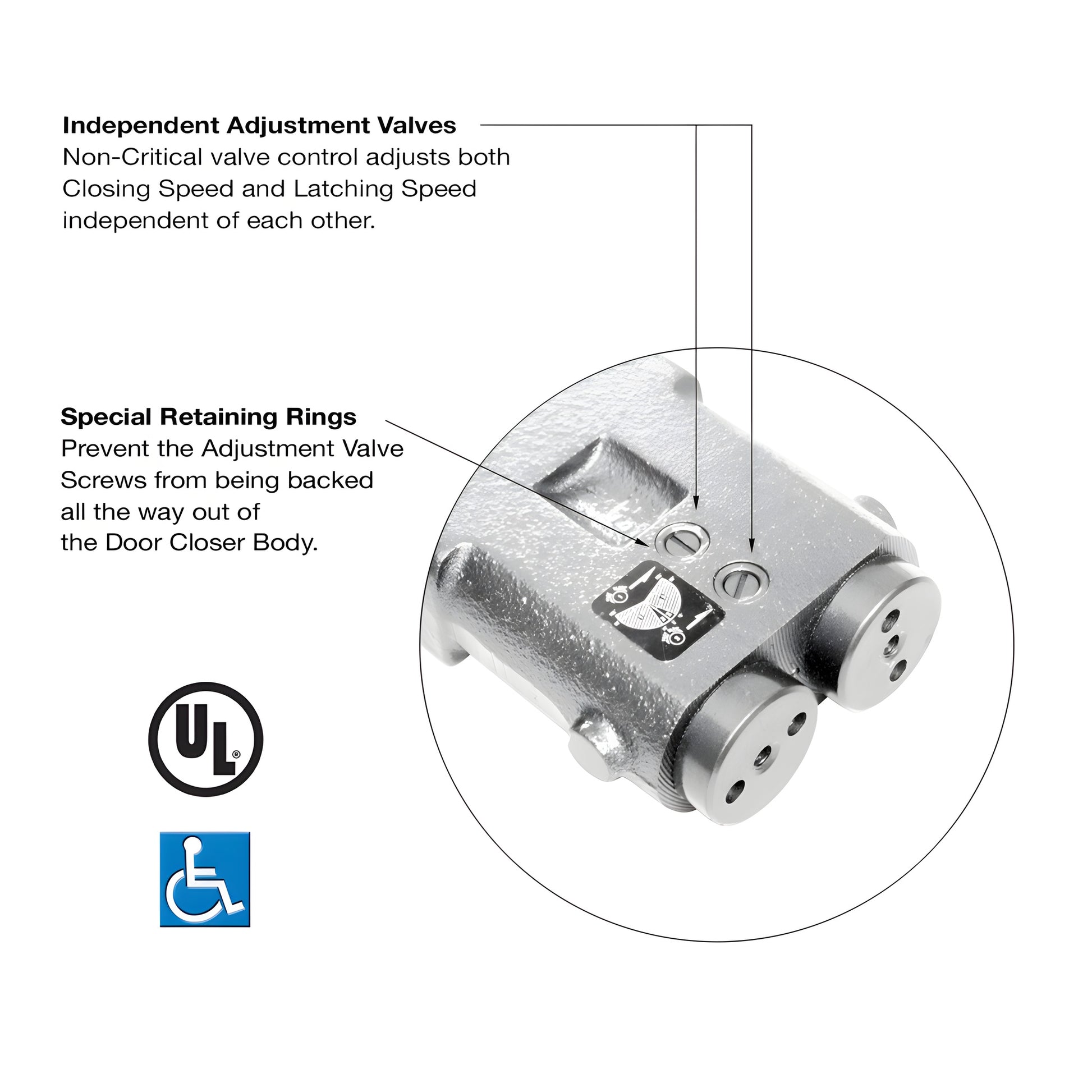

Independent Adjustment Valves
Non-critical valve control adjusts both closing speed and latching speed independently for precise door performance.

Special Retaining Rings
Prevent adjustment valve screws from backing out of the door closer body, improving durability and serviceability.

Installation Note
An auxiliary floor or overhead door stop is recommended to prevent damage from over-extension of the door swing.

Weight and Size Limitations
Door weight: 200 lbs. (91 kg)
Exterior door width: 42" (1.07 m)
Interior door width: 48" (1.22 m)
All door height: 96" (2.44 m)

ADA Compliance Advisory
Although A.D.A. series door closers comply with A.D.A. specified opening forces, they may not provide adequate spring power to control and close the door under all site conditions and door sizes. Closers set to meet A.D.A. opening forces might require supplemental hardware or a different closer strength to ensure proper closing.

Product Warning
Closers adjusted to A.D.A. opening forces might not have sufficient spring power to control and close the door due to varying site conditions and door size.

Shop CRL6870 door closer bodies with mounting clips now — add accessories to customize your concealed overhead door closer package.
