CRL A.D.A. 8.5 lb Exterior Concealed Overhead Closer Body Only - 105°

• Interchangeable with All Jackson® Style Overhead Concealed Door Closers
• 20 Models Available
• Conveniently Packaged with Templates and Instructions
• 5 Year Limited Warranty
• UL Listed

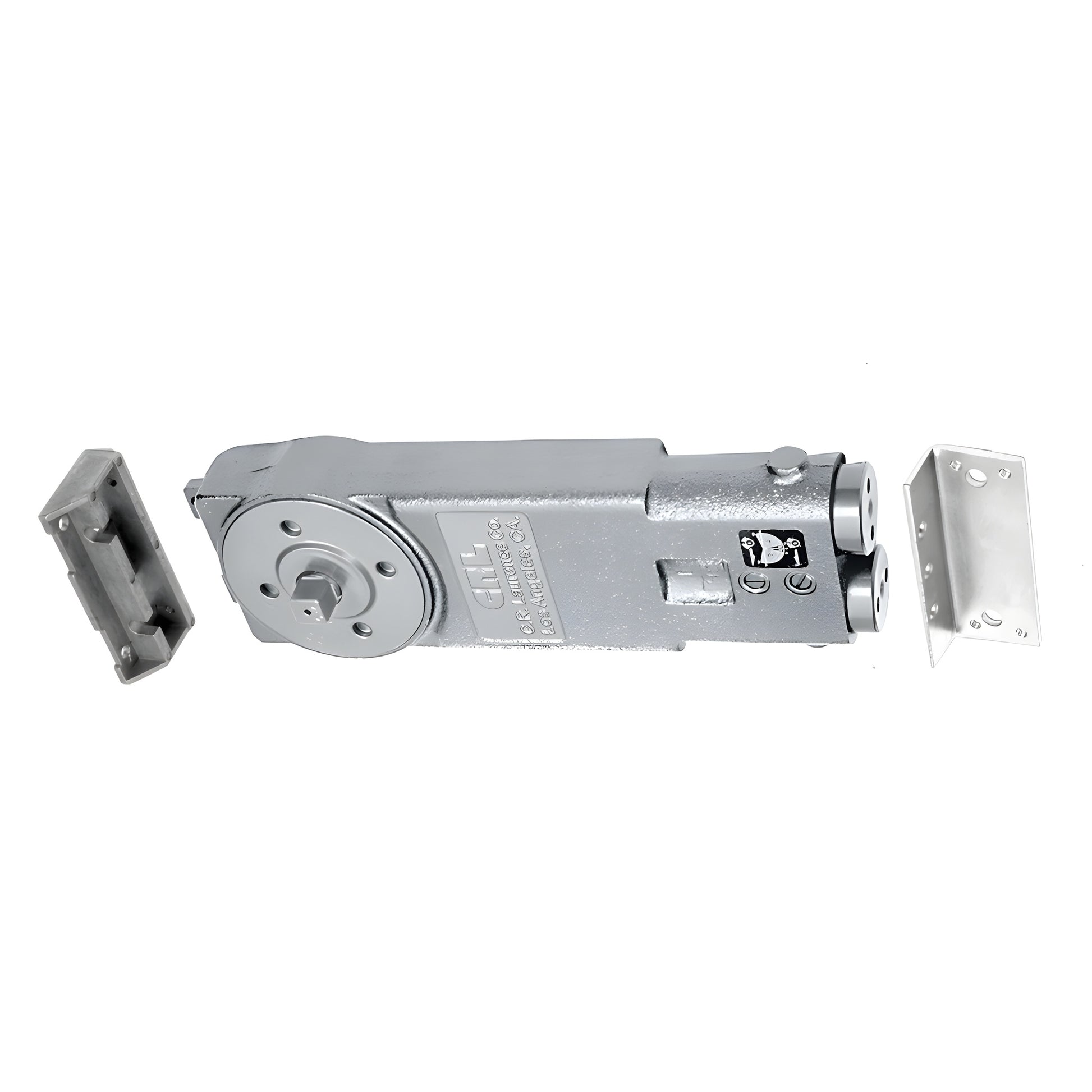

SKU: CRL6970 — Replacement Jackson®-style overhead concealed door closer body with mounting clips. Buy the closer body only to reduce costs when replacing a worn unit, or mix-and-match accessories (pivots, arms, etc.) to build a custom door closer package for your job. Each closer body ships with mounting clips, templates, and installation instructions.

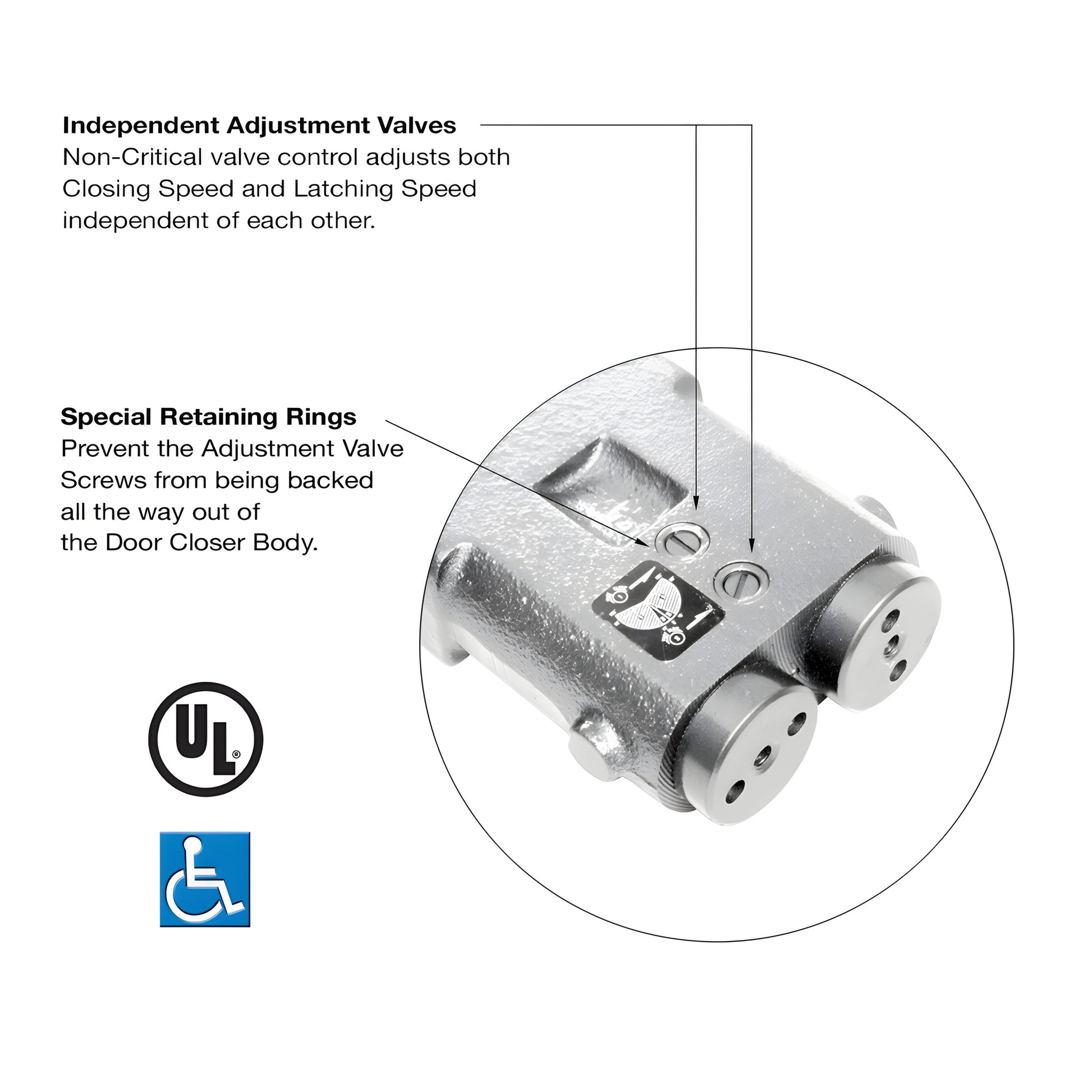

Independent Adjustment Valves
Non-critical valve control allows independent adjustment of Closing Speed and Latching Speed for fine-tuned performance.

Special Retaining Rings
Prevent adjustment valve screws from being backed out of the closer body.

Note: Use an auxiliary floor or overhead door stop to prevent damage from over-extension of maximum door swing.

Weight and Size Limitations
Door Weight: 200 Lbs. (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)

Note: Although A.D.A. Series door closers comply with A.D.A. specified opening forces, they may not provide adequate spring power to control and close the door under all site conditions or door sizes.

Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.

For a direct replacement or to build a tailored Jackson-style concealed door closer package, order CRL6970 or contact CRL Customer Service today.
