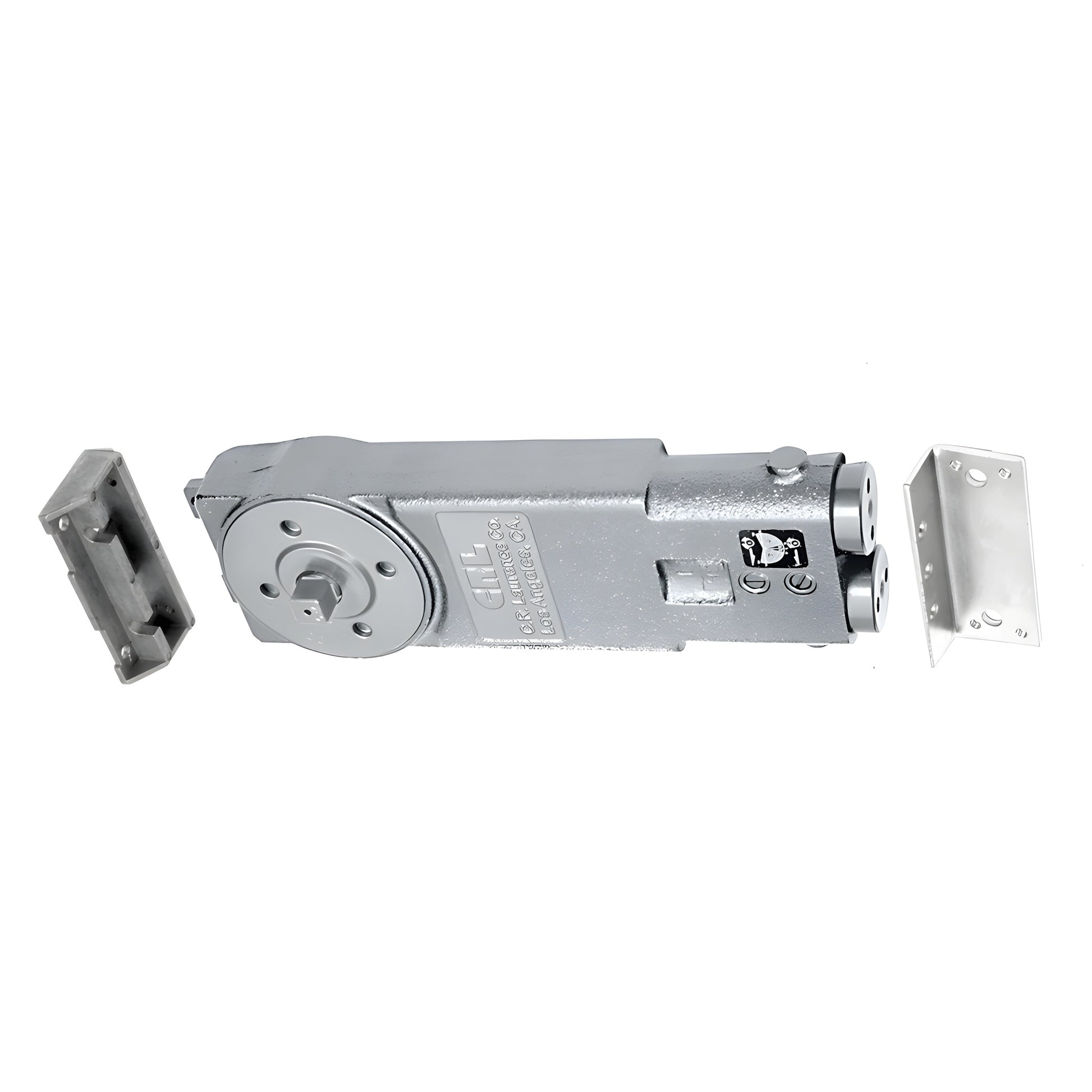

CRL ADA 8.5 lb 90° Hold-Open Overhead Concealed Closer Body

• Interchangeable with all Jackson® style overhead concealed door closers
• 20 models available
• Conveniently packaged with mounting clips, templates, and instructions
• 5 year limited warranty
• UL Listed

There are two advantages to buying our Door Closer Bodies with Mounting Clips (SKU: CRL6960). First, if you're replacing a worn or damaged closer body, you lower costs by avoiding unnecessary hardware. Second, you can build a custom door closer package—select a Door Closer Body and add the exact accessories you need (pivots, arms, etc.). Each unit ships with mounting clips, templates, and installation instructions for quick retrofit or new installations.

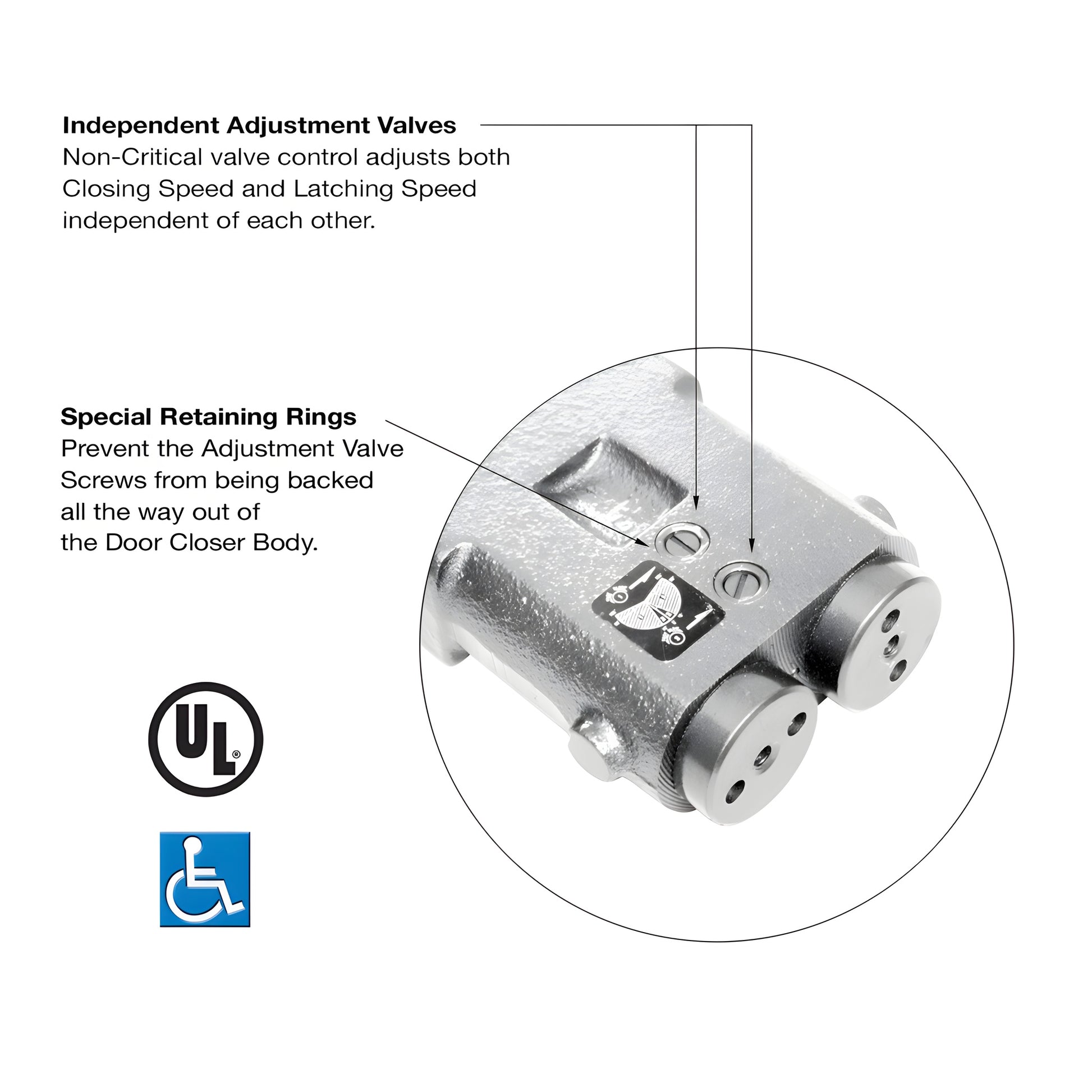

Independent Adjustment Valves
Non-critical valve control lets you adjust closing speed and latching speed independently for precise performance.

Special Retaining Rings
Retaining rings prevent adjustment valve screws from being backed out of the door closer body, improving reliability on high-traffic doors.

NOTE: An auxiliary floor or overhead door stop is recommended to prevent damage to the door closer or entryway from over-extension of the maximum allowable door swing.

Weight and Size Limitations
Door weight: 200 lbs (91 kg)
Exterior door width: 42" (1.07 m)
Interior door width: 48" (1.22 m)
All doors height: 96" (2.44 m)

NOTE: Although A.D.A. Series door closers comply with A.D.A. specified opening forces, site conditions and door size may affect spring power and closing control.

Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.

Need the exact replacement for Jackson® style overhead concealed door closers? Order SKU CRL6960 today or contact CRL Customer Service for help selecting compatible pivots and arms.
