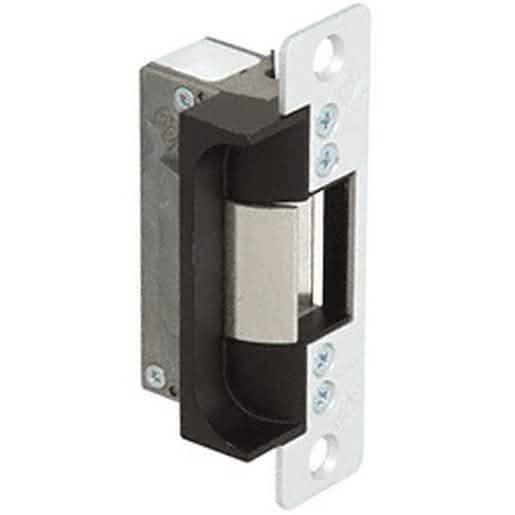

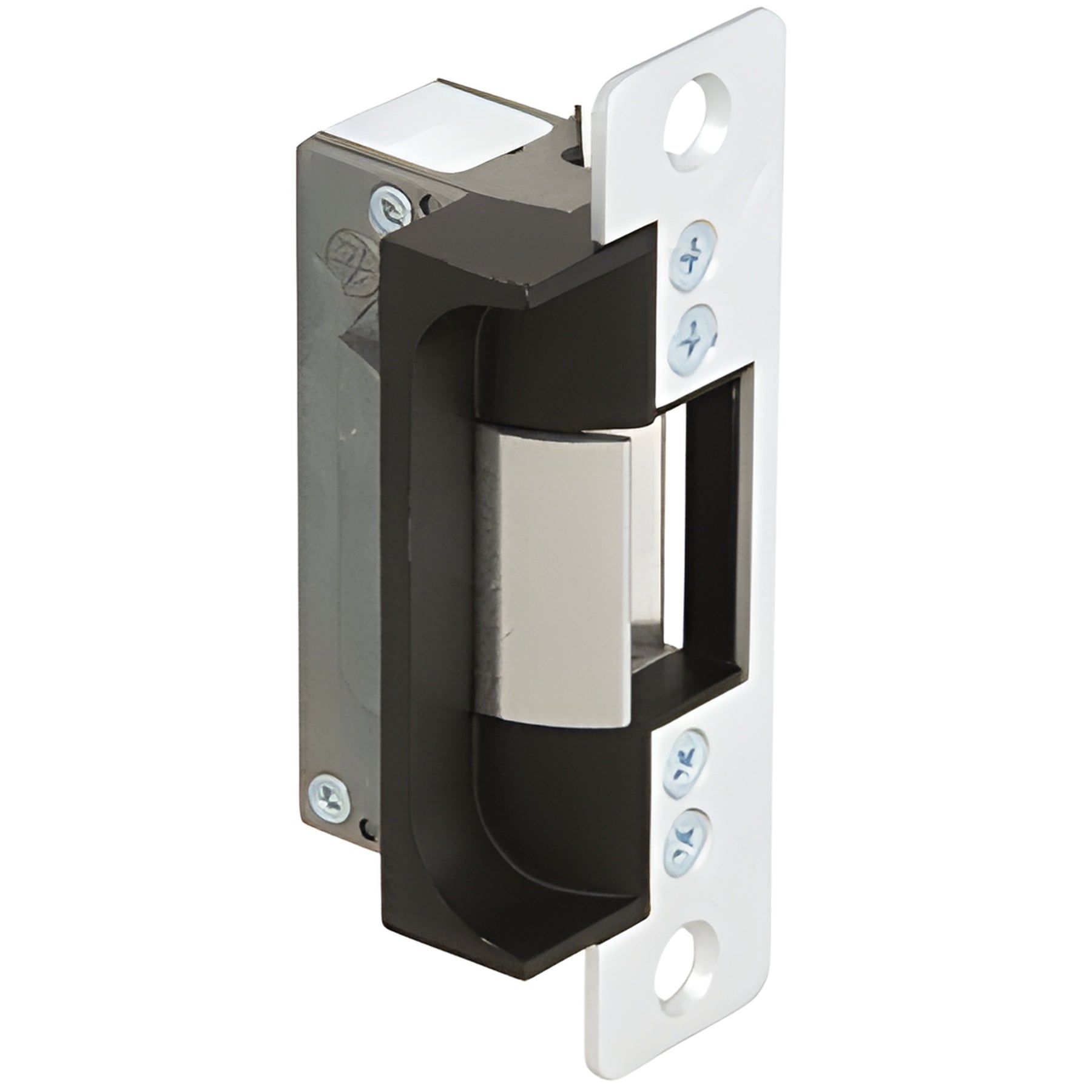

CRL Adams Rite® Aluminum 24V DC Electric Strike

Item # 7160510A

$414.03 CAD

Finish (2)

Overview

SKU7160510A
Sold As1 Each
BrandAdams Rite
Case Depth1-7/8 in. (48 mm)
Case Height3-3/8 in. (86 mm)
Case Width1 in. (25 mm)
Finish/ColorAluminum
HandingNon Handed
Input24 Volts DC
Projection3/4 in. (19 mm)
Series7160
Strike Opening Height1-7/16 in. (37 mm)
Strike Opening Width3/4 in. (19 mm)
TypeElectric Strike
UL ListedYes

Description

  • For Use with Mortise and Cylindrical Latch with 3/4" (19 mm) Projection
  • Field Convertible from Fail-Secure to Fail-Safe
  • UL Listed for Burglary Resistance

This Adams Rite® 7160 Electric Strike provides for remote electrical actuation to unlock the strike jaw and release the latch bolt for entry without operating the latch. The mortised strike is intended for use with mortise and cylindrical latches with 3/4" (19 mm) projection without deadbolt latches. The standard strike is supplied in fail-secure mode, but is field convertible to fail-safe.


SPECIFICATIONS:
Input: 24 Volts DC
Current Draw: 170mA
Dimensions: Faceplate - Flat = 1-1/4" x 4-7/8" (32 x 124 mm), Case: 1" x 3-3/8" x 1-7/8" (25 x 86 x 48 mm), Strike Opening: 3/4" x 1-7/16" x 5/8" (19 x 37 x 16 mm)

Shipped as Fail-Secure Lock: Requires Power to Unlock. Field Convertible to Fail-Safe Mode.
