CRL 135° Right-Hand Aluminum Sidelite Patch w/ 1NT300 Insert
CRL 135° Right-Hand Aluminum Sidelite Patch w/ 1NT300 Insert
Regular price
$379.78 CAD
Regular price
Sale price
$379.78 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH43RA
Shipping Weight: 2.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Handing
Right Hand
Insert Type
1NT300
Mounting Type
Sidelite
Profile
135°
With Insert
Yes
Overview
- Works with 2-9/16" (65 mm) pivot setback door patch fittings
- For 3/8" (10 mm) tempered glass
- Left and right hand versions available

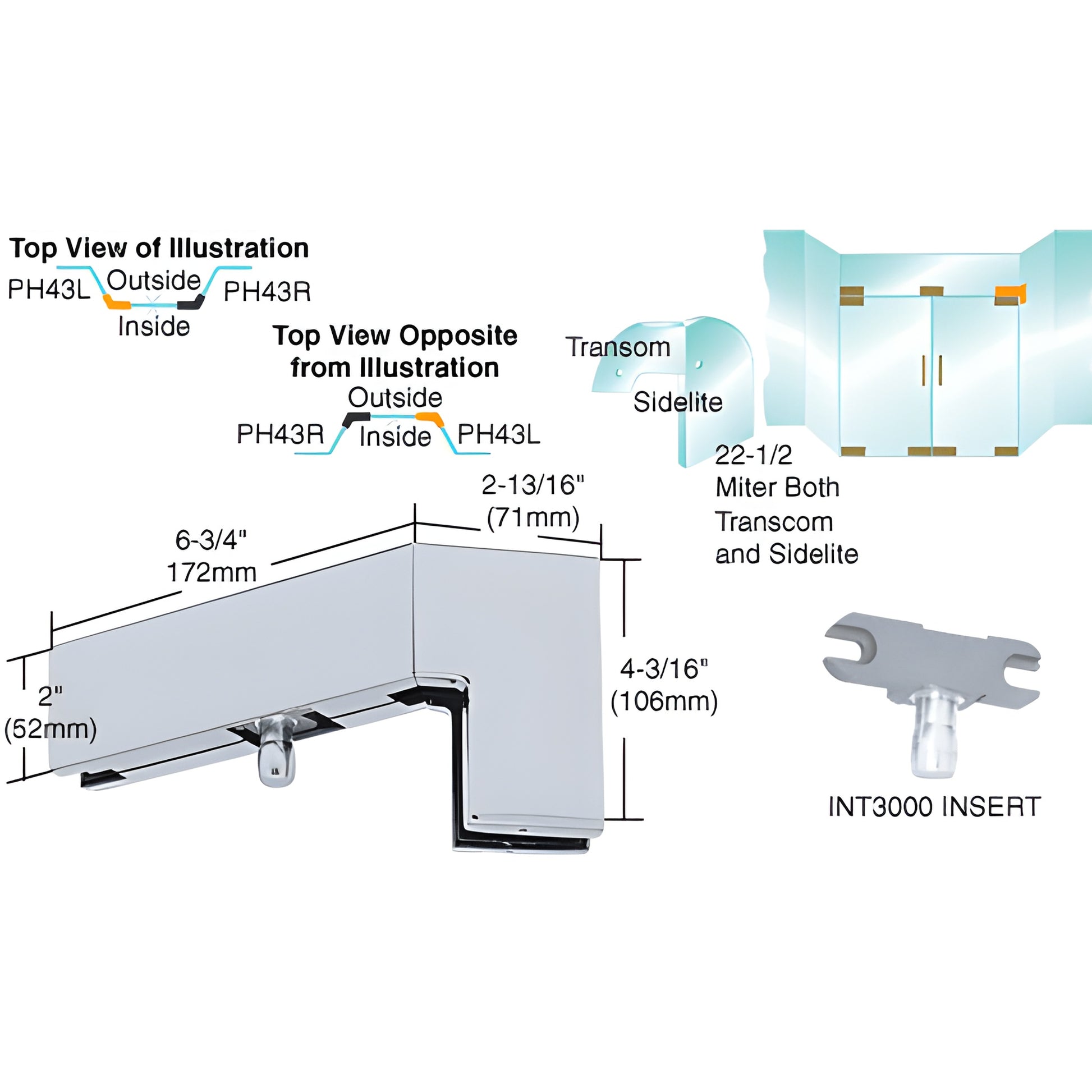

CRL 135° Left Hand Sidelite-Mounted Transom Patch (SKU: PH43RA) is a sidelite-mounted transom patch for supporting a transom from a sidelite glass panel. Includes an INT300 insert to mount a door using CRL's PH21A top door patch fitting. The insert can be positioned on the non-hinged side for a double-swing door. Use the INT306 transom patch door stop insert to create a one-way door.
Glass & glass door fabrication required:
Three 3/4" (19 mm) diameter holes and one corner notch. Door is square cut. Sidelite and transom require 22-1/2° miters. These specifications are for 3/8" (10 mm) glass applications.
Includes:
Template and installation instructions.
Product Warning:
NOTE: These fittings are not for use with laminated glass.
Order the PH43RA sidelite-mounted transom patch for reliable 135° transom support — contact CRL or add to cart to get started.
