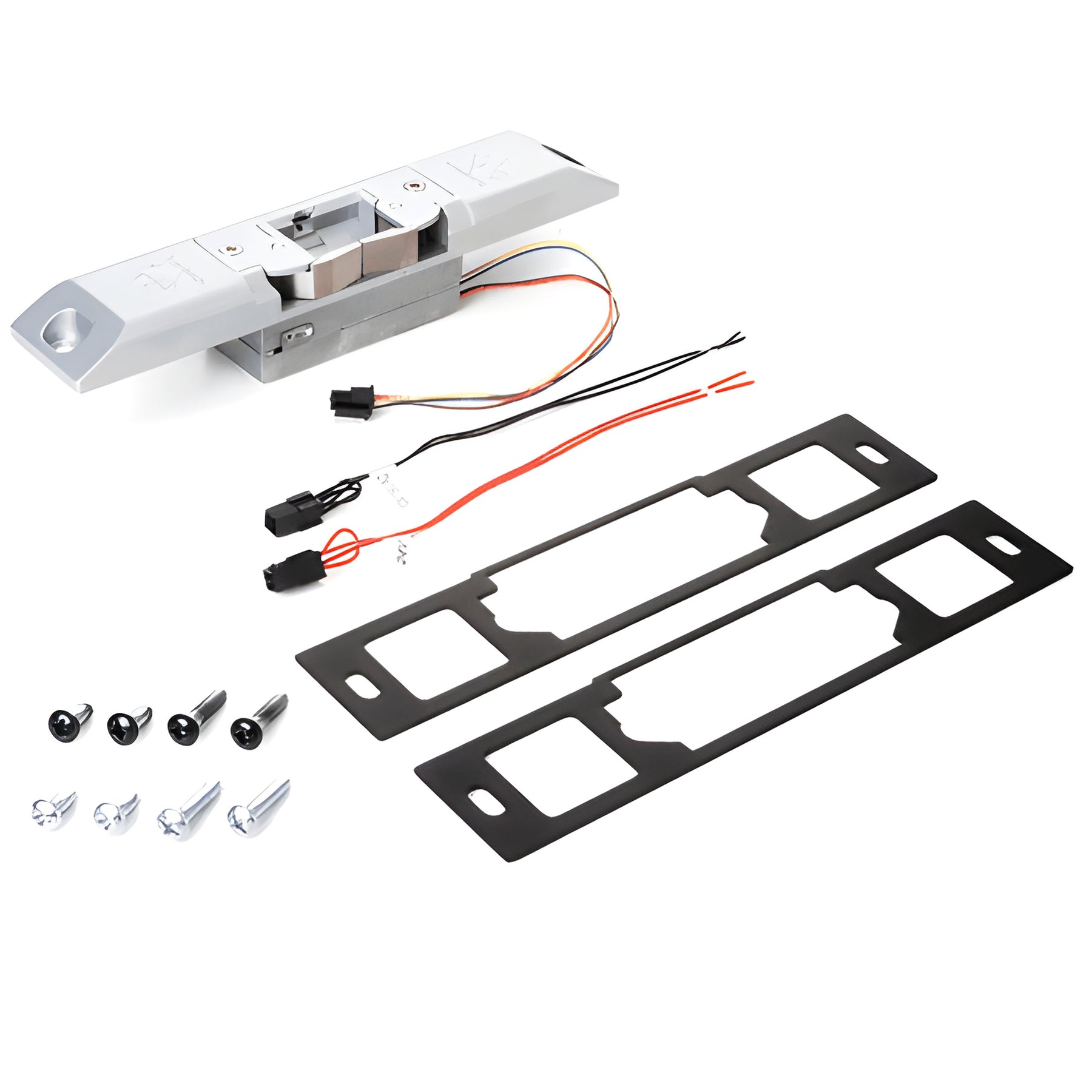

Adams Rite® 74R1 Electric Strike for Aluminum Doors - CRL

• For use with rim panic device up to 3/4" (19 mm) Pullman-type latch
• Field-selectable 12/24 Volts AC/DC input
• Field-convertible from fail-secure to fail-safe
• UL Listed for burglary resistance

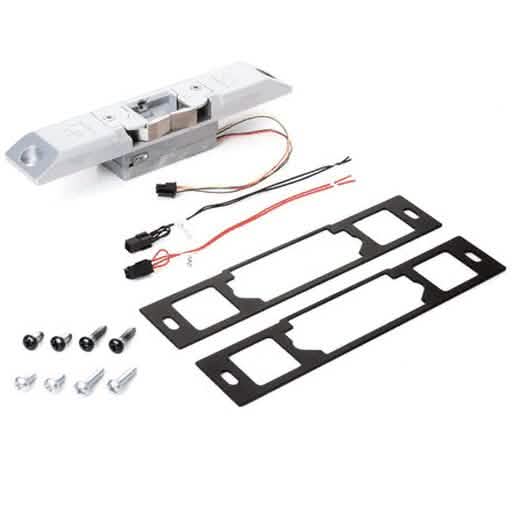

This Adams Rite® 74R1 Electric Strike (SKU: AR74R1A) delivers remote electrical actuation to unlock the strike jaw and release the latchbolt without operating the rim exit device. Designed for rim panic devices with up to a 3/4" (19 mm) Pullman-type latch, this semi-mortised, non-handed electric strike features an ultra-compact stainless steel split-jaw and provides over 2400 lbs. of holding force—ideal for high-security perimeter and commercial door applications. Supplied standard in fail-secure mode and easily convertible in the field to fail-safe operation for flexible access control setups.

SPECIFICATIONS:
Input: Field-selectable 12 V AC/DC or 24 V AC/DC (contact Technical Sales for 16 V AC/DC or AC-only special orders)
Current Draw: 440 mA @ 12 V DC, 160 mA @ 12 V AC, 230 mA @ 24 V DC, 80 mA @ 24 V AC
Dimensions: Case: 1" x 3-3/8" x 1-1/16" deep (25 x 86 x 27 mm); Strike opening: 5/8" x 1-7/16" x 9/16" (16 x 37 x 14 mm)

Default Mode: Shipped as fail-secure (requires power to unlock). Field-convertible to fail-safe if needed.

Product Warning:
This strike is supplied as fail-secure and can be converted in the field to fail-safe. Standard unit is 12 V DC; AC versions available by special order—contact Technical Sales for a quotation.

Choose the Adams Rite 74R1 electric strike for compact, high-holding-force rim panic device installations—contact us to order or request a quote
