CRL B5S Series Mill Aluminum 120" Square Base Shoe Extrusion Only Undrilled for 1/2" Glass

CRL B5S Series Mill Aluminum 120" Square Base Shoe Extrusion Only Undrilled for 1/2" Glass

$1,322.78 CAD
$1,322.78 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# B5S10
Shipping Weight: 84.466 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

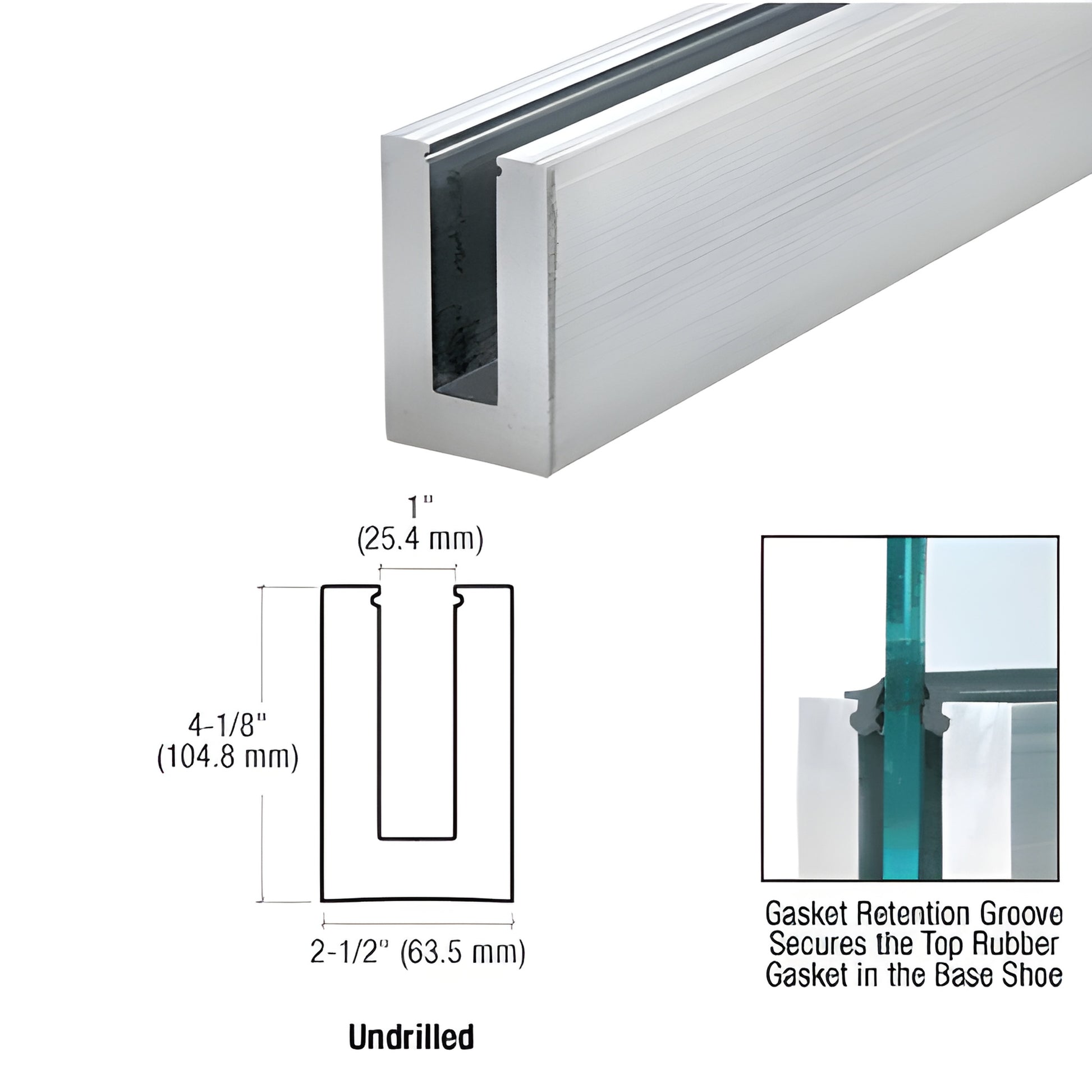

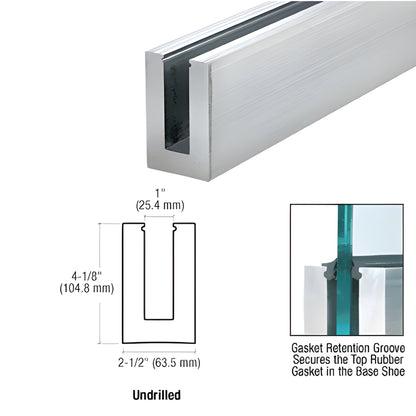

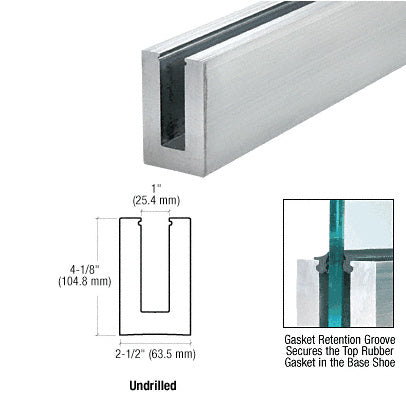

Product Information

Description

Finish/ColorMill
Glazing Thickness1/2 in. (13 mm)
GlazingType Monolithic
Height 4-1/8 in.(105 mm)
Length 120 in.(3048 mm)
MaterialAluminum
ProfileUndrilled
Width 2-1/2 in.(64 mm)

Overview

The CRL B5S Series Standard Square Base Shoe is an essential component for glass railing systems, designed for use with 1/2" (12 mm) monolithic tempered glass.
Ideal for enhancing glass railing systems or windscreens, this square base shoe meets NBC load requirements when installed according to ICC-3269.
Available in six architectural finishes, it offers custom cutting and mitering services, ensuring a perfect fit for your project.
To maintain the integrity of the base shoe, CRL recommends using powder-coated cladding rather than direct powder coating.
For detailed instructions and specifications, contact CRL Customer Service.
