CRL Birmingham Series 3 Panel Bi-Folding Door Kit - 118"

• For 3/8" or 1/2" (10 or 12 mm) Tempered Glass
• Brushed Stainless Steel Patches
• Satin Anodized Top Track and Bottom Guide Channel

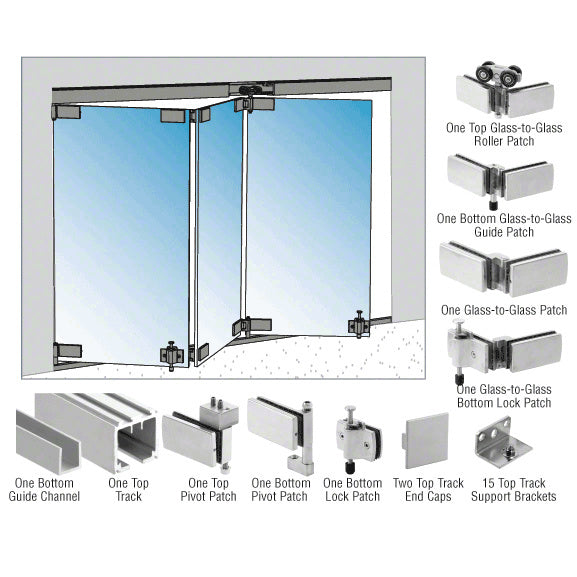

This configuration of the CRL Birmingham Series Bi-Folding Slider provides all the hardware needed to create a bi-folding three panel entrance. All panels bi-fold to one side, giving you a large unobstructed opening. Hardware can be easily reversed in the field to allow for opposite handing.


For openings taller than 104" (2.6 m), additional Cat. No. B1R14 Glass-to-Glass Patches must be used at panel height midpoints to ensure safe operation of the system (ordered separately).

Maximum panel weight of 110 lbs. (50 kg), with a maximum width of 29" (737 mm) and maximum height of 118" (3 m). Fittings can accommodate 3/8" or 1/2" (10 or 12 mm) tempered glass and require two holes per door, per fitting, and notches for the center lock housings. The top and bottom tracks come in 118" (3 m) lengths.

The CRL Birmingham Bi-Folding Top Hung Door System features corner patches to create a modern and elegant look. It can accommodate from two to twelve panels that can be bi-folded to one side or bi-part, with a maximum of six panels to a side. The systems are easy-to-install and a cost effective solution for commercial or residential interior applications.

There are three kits available from stock: 2 x 2 Bi-Folding, a three panel Bi-Folding, and a four panel Bi-Folding. All with everything you need to complete the installation, except for the glass and the fasteners going into the substrate. However, the combinations do not stop there, you can easily add additional fittings to create the desired configuration of your choice, providing it meets system limitations.

Panels are hinged together with alloy 304 stainless steel patches and suspended from the satin anodized aluminum top track by heavy-duty rollers. Similar patches are used at the midpoint of the panels to ensure safe operation on openings taller than 104" (2.6 m).

Matching bottom patches with guide pins slide inside a floor mounted continuous channel maintaining proper alignment of the panels as they fold open and closed.

Maximum panel weight of 110 lbs. (50 kg), with a maximum width of 29" (737 mm) and maximum height of 118" (3 m). Fittings can accommodate 3/8" or 1/2" (10 or 12 mm) tempered glass and require two holes per door, per fitting, and notches for the center lock housings. The top and bottom tracks come in 118" (3 m) lengths.

Optional Slim Line Locking Handles and Receiver Handles are available.


Product Warning:

STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
