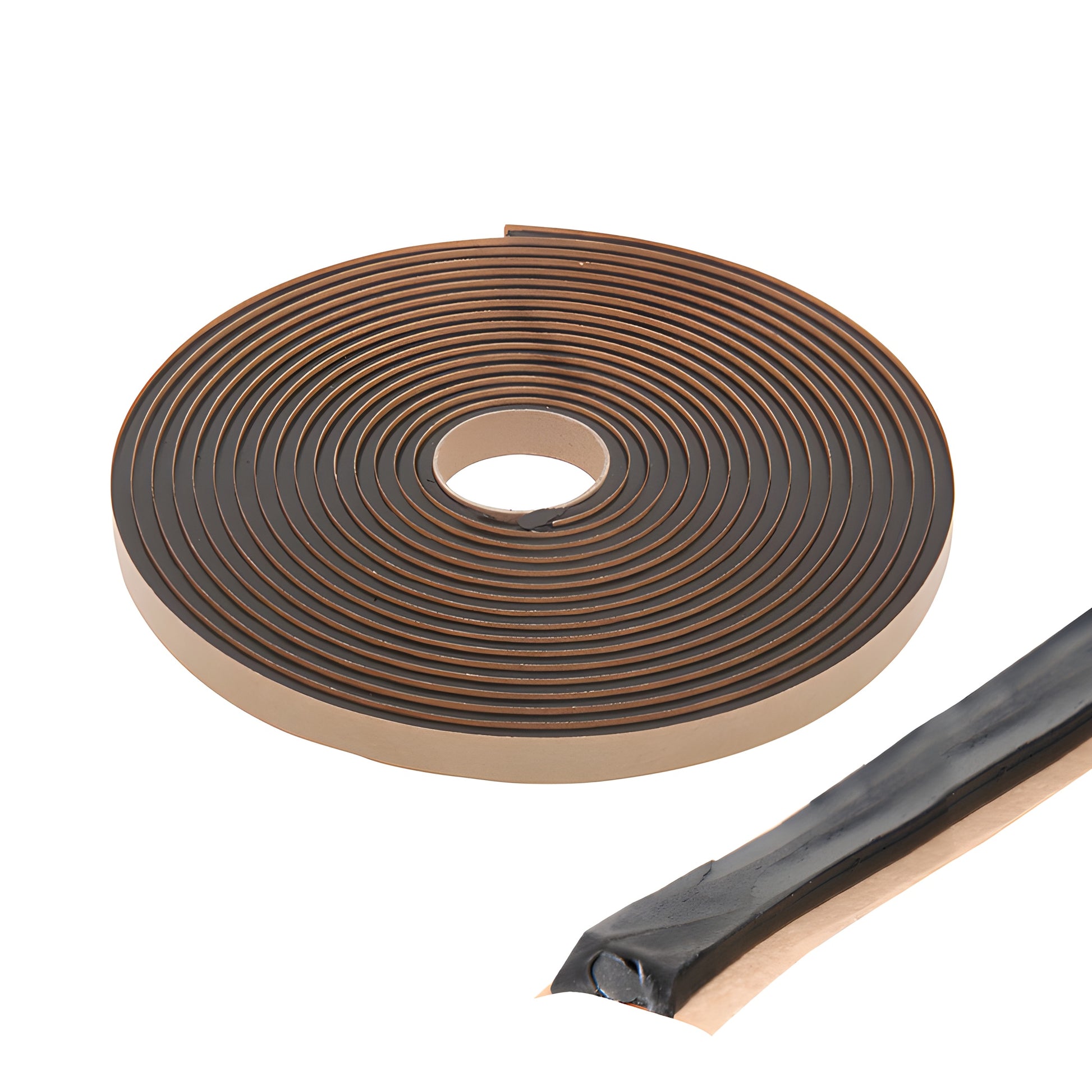

CRL Tremco POLYshim II 3/16 x 3/8 Butyl Architectural Seal Tape
CRL Tremco POLYshim II 3/16 x 3/8 Butyl Architectural Seal Tape
Regular price
$47.27 CAD
Regular price
Sale price
$47.27 CAD
Shipping calculated at checkout.
Quantity
Increments of 20Minimum of 20
Couldn't load pickup availability
Item# 7241YP3
Shipping Weight: 1.37 Pounds
Shipping Limitations: None
Minimum Order Quantity: 20
Unit of Measure: Roll
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.37 Pounds
Shipping Limitations: None
Minimum Order Quantity: 20
Unit of Measure: Roll
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Tremco
Case Quantity
20 Rolls
Finish/Color
Black
Roll Length
25 ft.(8 m)
Thickness
0.215 in. (5 mm)
Type
Butyl
Width
3/8 in. (10 mm)
Overview
- Continuous Integral EPDM Shim
- 100% Solids Content
- Used in Compression Glazing Systems
- Meets AAMA 800-92, 804.3, 806.3, and 807.3
- Black Color

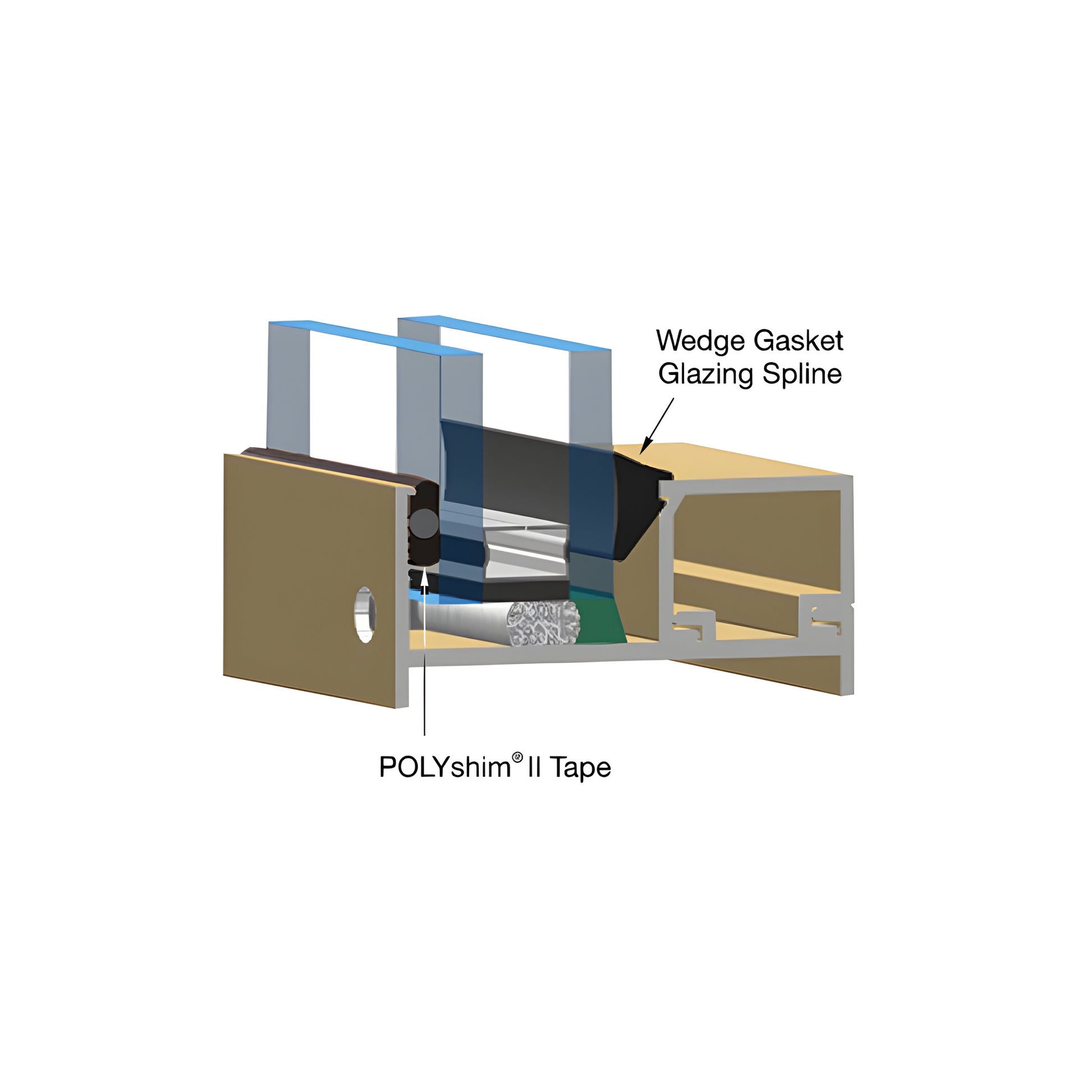

CRL Tremco® POLYshim™ II Tape (SKU: 7241YP3) is a 100% solids, highly adhesive, elastic, cross-linked preformed butyl tape designed for compression glazing systems. Ideal for high-performance glazing of curtain wall, unitized curtain walls, punched and ribbon window systems, and sloped glazing, this pre-shimmed glazing tape doubles as a continuous rubber shim to prevent sealant squeeze-out and reduce glass breakage by eliminating pressure points.
The continuous shim design removes the need to preshim the lite before tape installation. POLYshim™ II offers strong adhesion, heat resistance, sealant compatibility, and excellent weathering resistance, making it suitable for many glazing system applications and long-run commercial storefront and curtainwall projects.
Typical Physical Properties
Base Polymer: cross linked butyl rubber (polyisobutylene); Solids Content: 100% by weight. Hardness: 57 durometer Shore "00". Temperature Range: Application 20°F (-7°C) to 120°F (49°C); Service -65°F (-54°C) to 200°F (93°C). Weathering: Unaffected by Ultraviolet through glass. Remains flexible at low temperatures.
Applicable Standards
POLYshim™ II Tape meets the requirements of AAMA 800-92 Specifications 804.3, 806.3, and 807.3.
Limitations
Not for use in joints subjected to continuous water immersion or temperatures exceeding 200°F (93°C). Do not compression glaze glass with POLYshim™ II Tape having less than a 1/8" (3 mm) shim.
Order POLYshim™ II Tape (SKU: 7241YP3) for reliable compression glazing performance — add to cart or contact CRL for specifications and availability.
