CRL

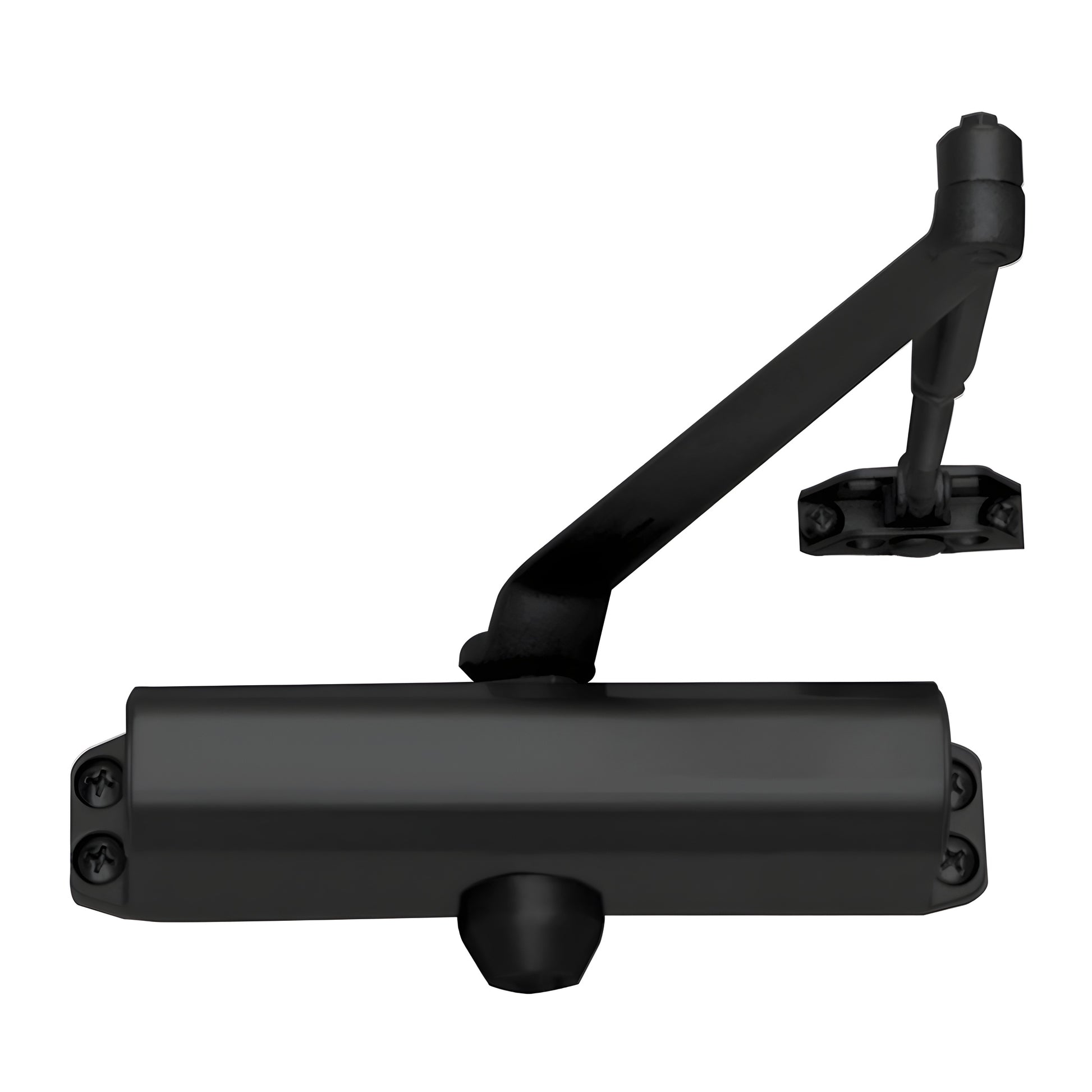

CRL Black Size 4 Spring Surface Mount Door Closer ANSI Grade 1
CRL Black Size 4 Spring Surface Mount Door Closer ANSI Grade 1
Regular price
$90.87 CAD
Regular price
Sale price
$90.87 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DC54BLK
Shipping Weight: 9.408 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.408 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Length
9-3/4
Case Quantity
10
Certification
ANSI A156.4 Grade 1
Closer Type
Surface Mount
Finish/Color
Black
Door Weight
143-187
Horizontal Mounting Holes
9-1/16
Maximum Door Width - Exterior
42 Inches
Maximum Door Width - Interior
48 Inches
Product Details
Dual Valve Closing and Latching Speed Control
Spring Size
4
UL Listed
Yes
Vertical Mounting Holes Center To Center
3/4
Overview
- Engineered for Commercial and Residential Use
- Dual Valve Closing and Latching Speed Control
- Reversible for Standard, Top-Jamb, and Parallel Arm Installations on Aluminum, Metal, and Wood Doors
- Aluminum and Dark Bronze Finishes
- Custom Colors Available
- ANSI A156.4 Grade 1
- UL Listed
The CRL DC54 Size 4 Surface Mount Door Closer (SKU: DC54BLK) is a heavy-duty surface-mount door closer ideal for commercial and residential projects. The Size 4 spring is specified for interior doors up to 48" (122 cm) and exterior doors up to 42" (107 cm), handling door weights approximately 143–187 lbs (65–85 kg). Features include an adjustable back check to protect doors and hardware from wind or violent swings, and independently adjustable closing and latching speeds for smooth, compliant operation. Designed for universal installation, each closer ships with a Parallel Arm Bracket and mounting hardware for regular, top-jamb, or parallel arm applications. All CRL surface mounted closers are UL listed and meet ANSI A156.4 Grade 1 performance standards, backed by a 10-year warranty. Optional accessories, such as Drop Plates and Hold Open Arms, are available for specialized installations.
Increase brand recognition with customized private labeling — CRL DC53, DC54 and DC55 models ship in plain boxes and are ready for Private Label programs. To discuss program details and pricing, contact CRL Technical Sales.
Order the CRL DC54 (SKU: DC54BLK) today for reliable, ANSI Grade 1 commercial door control.
Specifications
Warranty
