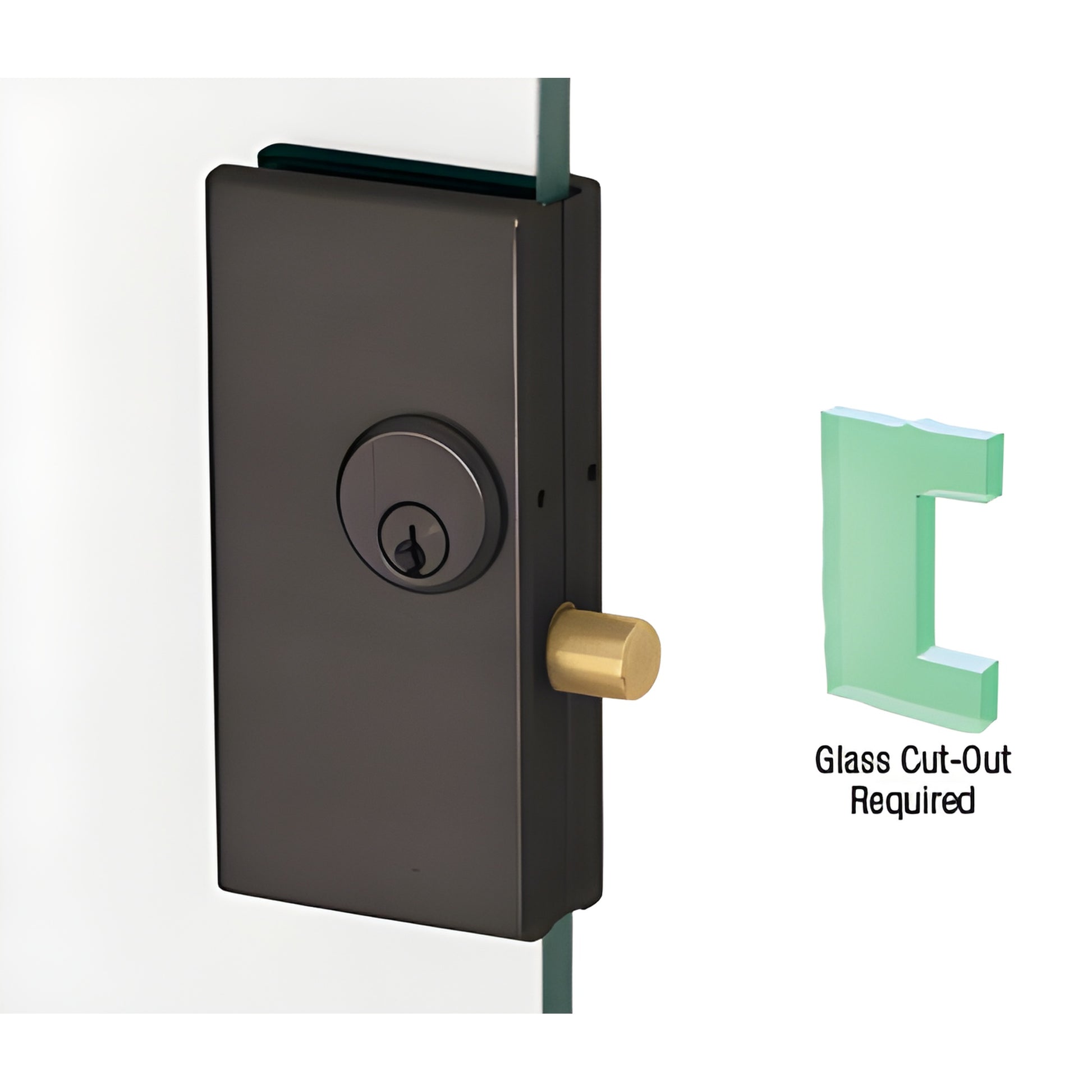

CRL Black Bronze Anodized 2-3/4 x 5-5/8 Deadthrow Center Window Lock
CRL Black Bronze Anodized 2-3/4 x 5-5/8 Deadthrow Center Window Lock
Regular price
$212.88 CAD
Regular price
Sale price
$212.88 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DT36DU
Shipping Weight: 12.16 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 12.16 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized
Glazing Thickness
1/2 in. (12 mm)
Height
5-5/8 in. (143 mm)
Width
2-3/4 in. (70 mm)
Overview
- Small size complements our low profile door rail line
- Uses our standard thumbturns and keyed cylinders (ordered separately)
- Non-handed
- Use with monolithic tempered glass
The CRL 2-3/4" x 5-5/8" (70 x 143 mm) Low Profile Center Lock (SKU: DT36DU) provides a sleek, low-profile locking solution for frameless and rail-mounted tempered glass doors. Designed to pair with our Low Profile Door Rails, the compact housing accepts standard thumbturns and keyed cylinders in any combination. Fits 3/8" (10 mm) and 1/2" (12 mm) monolithic tempered glass and includes a 777SP Series fixed jamb strike plate. For locking to a glass sidelite, order a Glass Keeper separately.
Key differentiators:
- Low-profile design ideal for modern storefronts and interior glass doors
- Non-handed—installs on either left or right door
- Compatible with standard CRL thumbturns and keyed cylinders for flexible security options
- Fits both 3/8" and 1/2" tempered glass—no adapter required
Product Warning:
NOTE: When used on a pair of doors, one door must have a rail lock engaging into the floor for maximum security.
Order the DT36DU Low Profile Center Lock today for a clean, secure lock solution for tempered glass doors.
Specifications
Templates
