CRL Polished Stainless Low-Profile Deadthrow Center Lock 2-3/4x5-5/8
Item# DT36PS
Shipping Weight: 15.36 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 15.36 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Height
5-5/8 in. (143 mm)
Width
2-3/4 in. (70 mm)
- Small size complements our Low Profile Door Rail line
- Uses CRL standard thumbturns and keyed cylinders (ordered separately)
- Non-handed for left or right swing doors
- For use with monolithic tempered glass

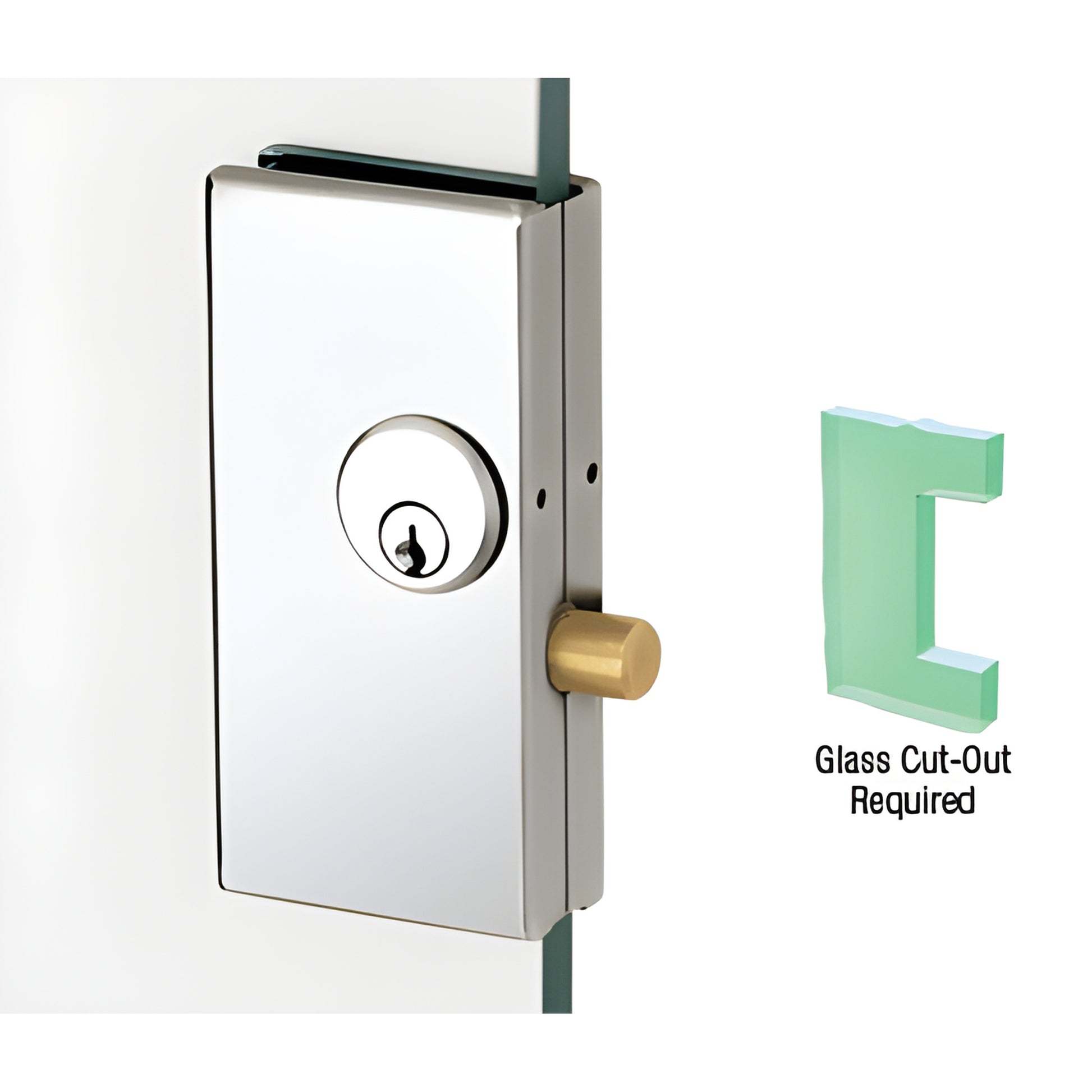

The CRL 2-3/4" x 5-5/8" (70 x 143 mm) Low Profile Center Lock (SKU: DT36PS) is a compact, low-profile center lock engineered for tempered glass doors and Low Profile Door Rails. The sleek housing accepts our standard thumbturns and keyed cylinders in any combination. Fits both 3/8" (10 mm) and 1/2" (12 mm) tempered glass and includes a 777SP Series fixed jamb strike plate. For locking to a glass sidelite, order a Glass Keeper separately.
Key differentiators: non-handed design for easy installation, compatibility with CRL thumbturns/keyed cylinders, two glass thickness fits (3/8" and 1/2"), and included 777SP strike plate for secure mounting.
Product Warning:
NOTE: When used on a pair of doors, one door must have a rail lock engaging into the floor for maximum security.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors may vary depending on your monitor settings.
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section below.
Ready to order the DT36PS low profile center lock for tempered glass doors? Contact CRL or add to cart now.
Cleaning & Maintenance
