CRL Brushed Stainless Low-Profile Deadthrow Center Lock 2-3/4 x 5-5/8
CRL Brushed Stainless Low-Profile Deadthrow Center Lock 2-3/4 x 5-5/8
Regular price
$299.04 CAD
Regular price
Sale price
$299.04 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DT36BS
Shipping Weight: 7.36 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.36 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. (12 mm)
Height
5-5/8 in. (143 mm)
Width
2-3/4 in. (70 mm)
Overview
- Compact low profile center lock for tempered glass doors
- Compatible with standard thumbturns and keyed cylinders (ordered separately)
- Non-handed design for universal mounting
- Fits 3/8" (10 mm) and 1/2" (12 mm) tempered glass

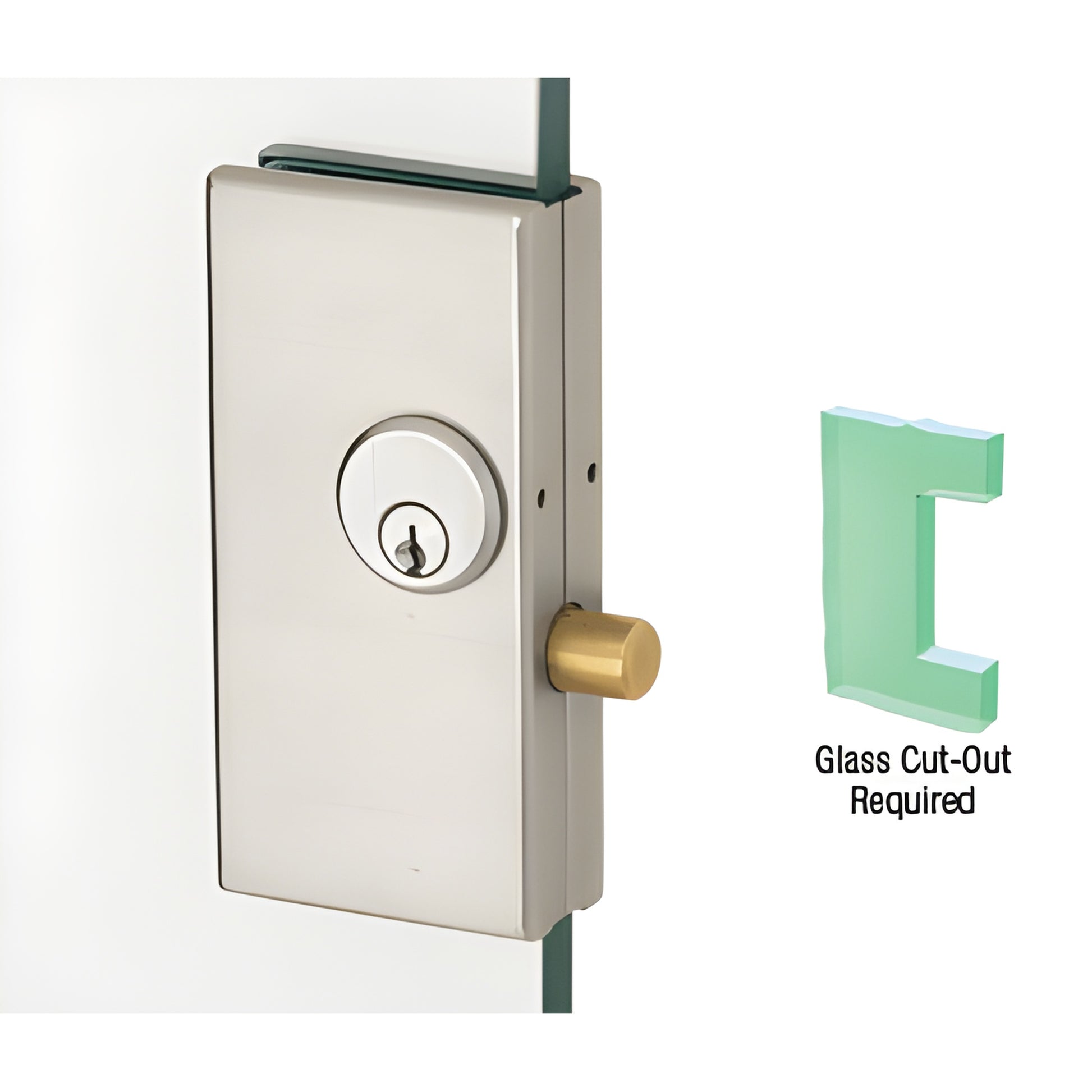

The CRL 2-3/4" x 5-5/8" (70 x 143 mm) Low Profile Center Lock (SKU: DT36BS) is a compact, low profile center lock designed for use with our Low Profile Door Rails. The sleek housing accepts our standard thumbturns and keyed cylinders in any combination (ordered separately). Fits both 3/8" (10 mm) and 1/2" (12 mm) tempered glass and includes a 777SP Series fixed jamb strike plate. For locking to a glass sidelite, a Glass Keeper must be ordered separately.
Product Warning:
NOTE: When used on a pair of doors, one door must have a rail lock engaging into the floor for maximum security.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not rust- or stain-proof. CRL recommends periodic maintenance to help maintain the factory finish. For more information, view the Stainless Steel Disclaimer in the Technical References section below.
Order the DT36BS Low Profile Center Lock for a streamlined glass door locking solution—contact CRL or your local distributor to purchase.
