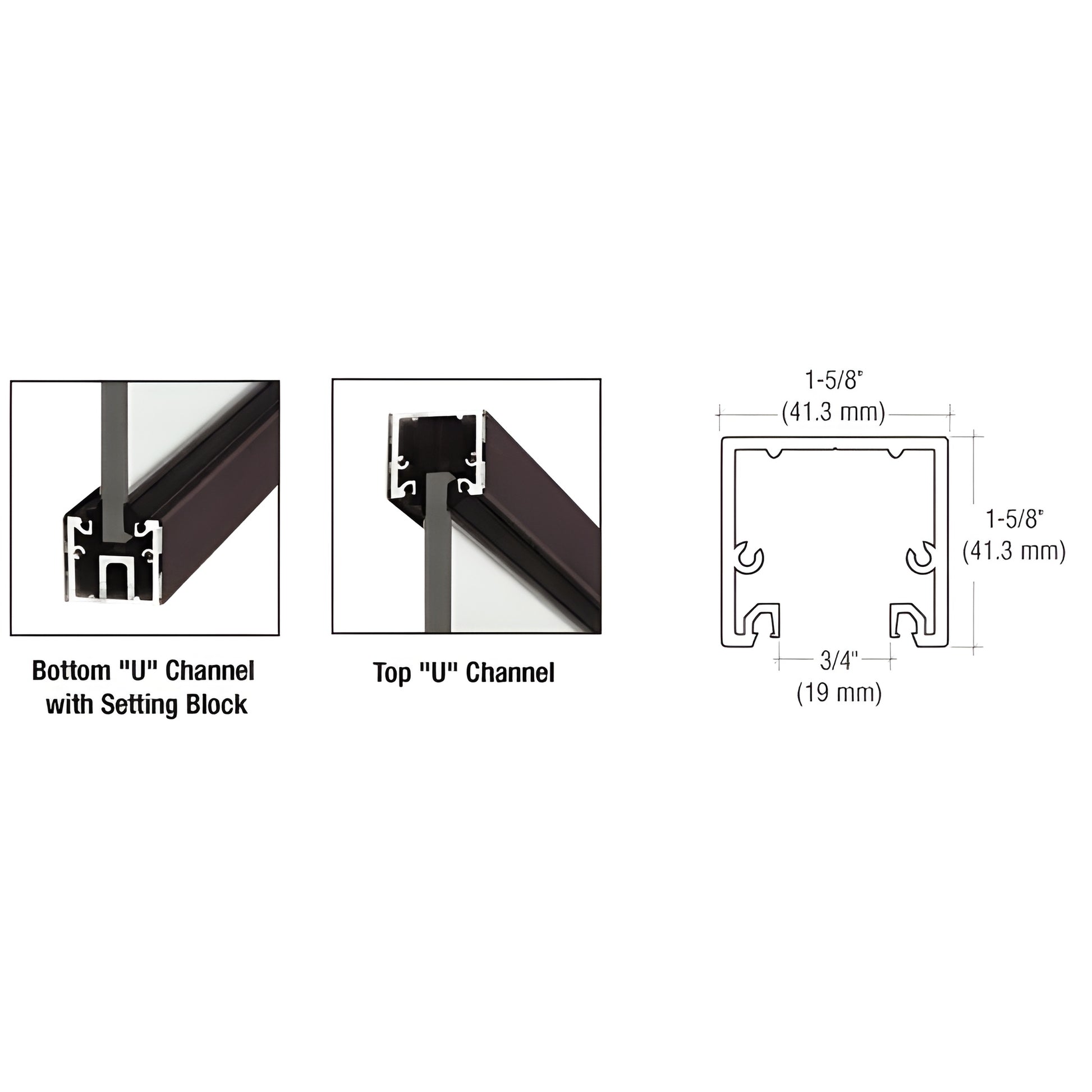

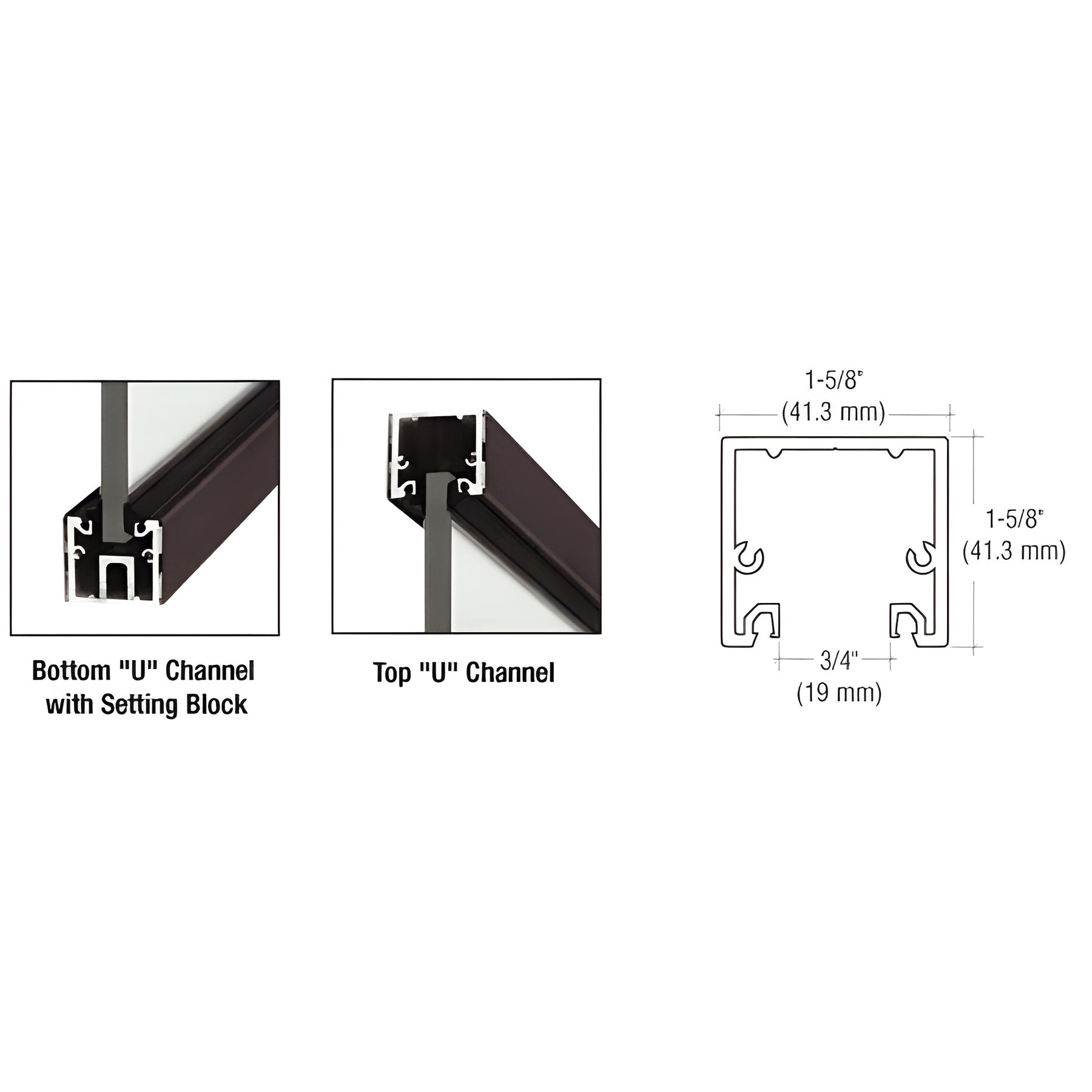

CRL 240" Black Bronze Anodized U-Channel with Roll-In Top-Load Gasket
Item# UCDU3812240
Shipping Weight: 15.6 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 15.6 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Black Bronze Anodized
Glazing Thickness
3/8 in. (10 mm)
Height
1-5/8 in. (41 mm)
Length
240 in. (6096 mm)
Width
1-5/8 in. (41 mm)
- Top-loading roll-in glazing gasket compatible with 3/8" (10 mm) and 1/2" (12 mm) glass
- Designed for ceiling or floor installations
- Use with monolithic tempered glass
- Nine standard architectural finishes
- Custom finishes, powder painting, and custom lengths available
CRL Regular U-Channel with Top Load Roll-In Glazing Gasket (SKU: UCDU3812240) was designed for use with CRL patch hardware, or with our header for overhead door closers with fixed sidelites and door rail systems. The U-channel installs surface- or recessed-mounted, while the top-load roll-in glazing gasket secures the glass for a clean, commercial-grade finish.
NOTE: The roll-in glazing gasket is included with packages for 1/2" (12 mm) glass. For 3/8" (10 mm) glass, the gasket must be ordered separately.
Most shipping weights are approximate and have not been verified. If exact weight or shipping costs are required to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on monitor settings.
Durable, adaptable U-channel for glass doors and sidelites—available in multiple finishes and custom lengths. Order SKU UCDU3812240 or contact CRL for custom options and installation guidance.
CAD Drawings - dwg
