CRL 240" Satin Anodized Aluminum U-Channel w/ Roll-In Top-Load Gasket
CRL 240" Satin Anodized Aluminum U-Channel w/ Roll-In Top-Load Gasket
Regular price
$497.31 CAD
Regular price
Sale price
$497.31 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# UCSA3812240
Shipping Weight: 16.5 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 16.5 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

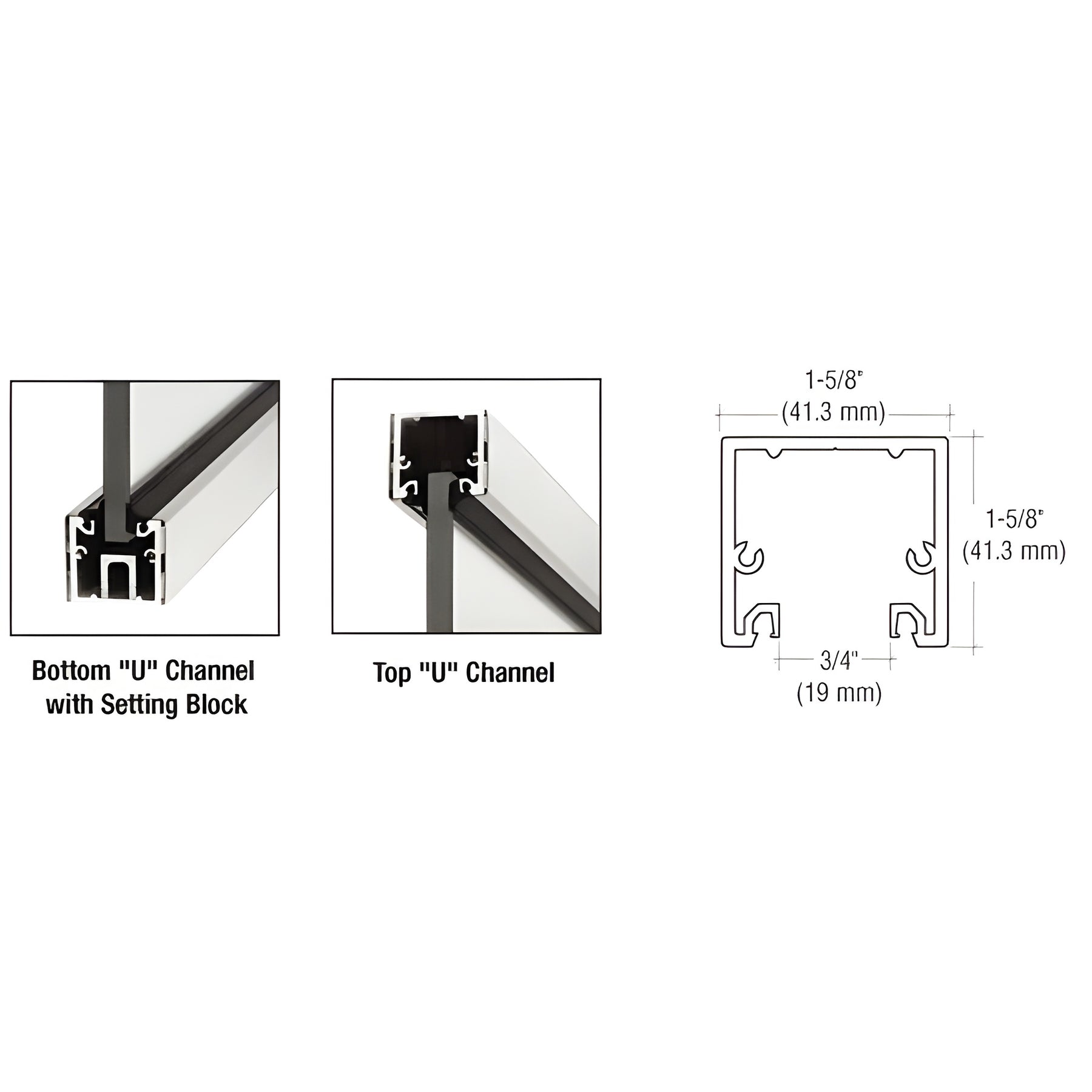

Description
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in. (10 mm)
Height
1-5/8 in. (41 mm)
Length
240 in. (6096 mm)
Width
1-5/8 in. (41 mm)
Overview
- Top-loading roll-in glazing gasket for 3/8" and 1/2" (10 and 12 mm) glass
- Ideal for ceiling or floor installations — surface or recessed mountable
- For use with monolithic tempered glass
- Nine standard architectural finishes; custom finishes and powder painting available
- Custom lengths available
CRL Regular U-Channel with Top Load Roll-In Glazing Gasket (SKU: UCSA3812240) is engineered for glass door and sidelite systems, and is compatible with our patch hardware, header for overhead door closers with fixed sidelites, and door rail systems. The top-load roll-in glazing gasket secures the glass while allowing quick installation, making this U-channel ideal for high-quality frameless glass installations and architectural glass storefronts.
NOTE: The roll-in glazing gasket is included when using 1/2" (12 mm) glass. For 3/8" (10 mm) glass the roll-in glazing gasket must be ordered separately.
Order the U-channel for glass doors (SKU: UCSA3812240) or contact CRL for custom finishes and lengths.
Specifications
CAD Drawings - dwg
