CRL Black Bronze Anodized European Patch Door Kit - With Lock

Item # PHE1LDU

$414.03 CAD

Finish (3)

Overview

SKUPHE1LDU
Sold As1 Each
ConfigurationSingle
Door TypeF Style Glass Door
Finish/ColorBlack Bronze Anodized
Glazing Thickness3/8 in. or 1/2 in. (10 mm or 12 mm)
Pivot Setback2-9/16 in. (65 mm)

Description

  • For 3/8" or 1/2" (10 or 12 mm) Tempered Glass
  • Available With or Without Locks

CRL PHE1 European Patch Door Kits come with all the hardware to complete a single free-swinging door (except the glass). Pivot setback is 2-9/16" (65 mm). Floor closers with tapered spindles (ordered separately) may be used with this Kit.

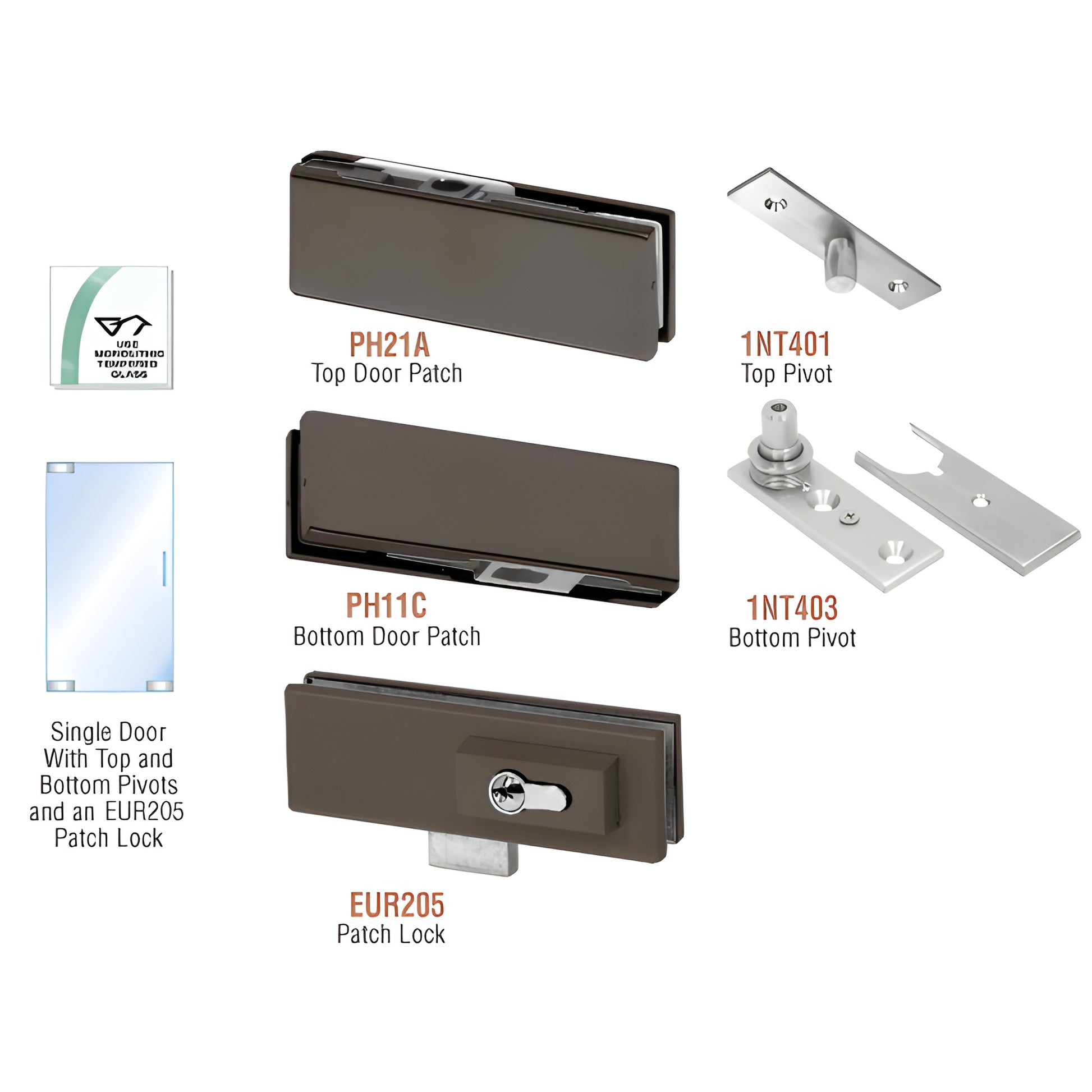

Kit Contains:
  • 1 - PH21A Top Door Patch
  • 1 - PH11C Bottom Door Patch
  • 1 - 1NT401 Top Pivot
  • 1 - 1NT403 Bottom Pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass. (Holes and notches are required in the glass.)

    Kits with lock also come with one each Cat. No. EUR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately.

    NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
