CRL Brushed Stainless Patch Door Kit with Lock for Frameless Glass
CRL Brushed Stainless Patch Door Kit with Lock for Frameless Glass
Regular price
$452.60 CAD
Regular price
Sale price
$452.60 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHE1LBS
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Single
Door Type
F Style Glass Door
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-9/16
Overview
- For 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks
CRL PHE1 European Patch Door Kits (SKU: PHE1LBS) include all hardware required to complete a single free-swinging glass door (glass sold separately). Pivot setback: 2-9/16" (65 mm). Compatible with floor closers that use tapered spindles (floor closers ordered separately). Ideal for frameless tempered glass doors, including commercial and residential glass door installations.

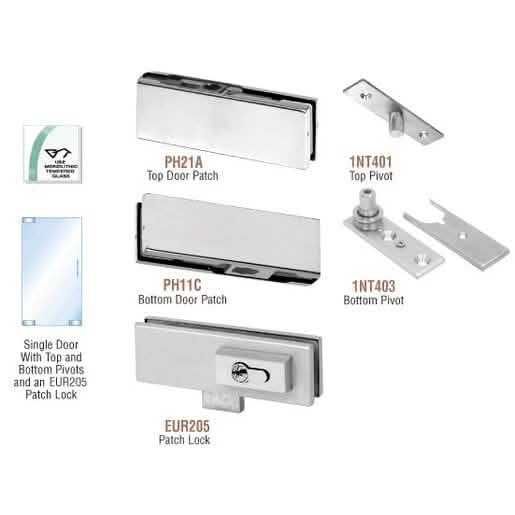

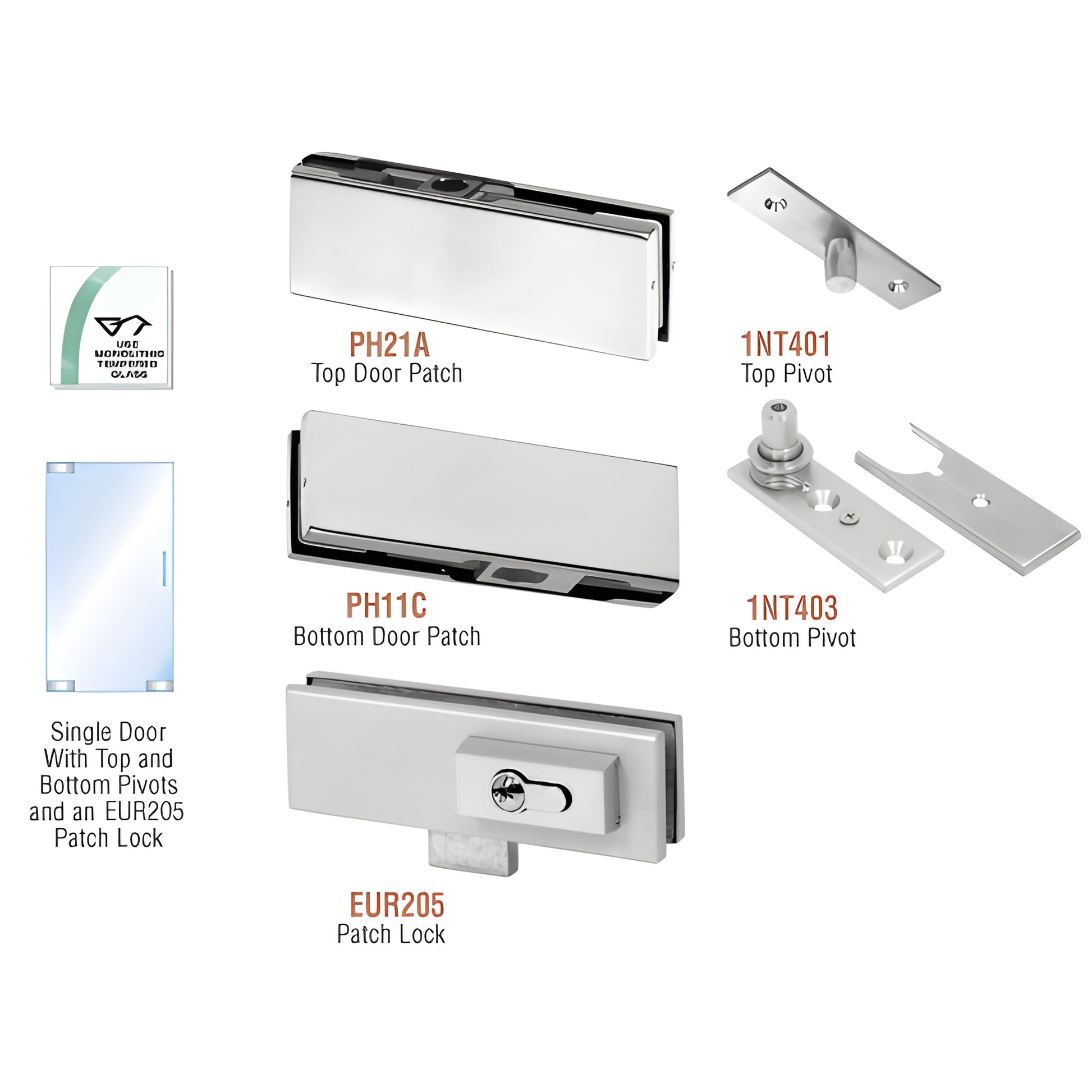

Kit contains:
- 1 - PH21A Top door patch
- 1 - PH11C Bottom door patch
- 1 - 1NT401 Top pivot
- 1 - 1NT403 Bottom pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass requires holes and notches)
Kits with a lock include one EUR205 patch lock; cylinders, thumbturns, and keepers are ordered separately.
NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Choose the CRL PHE1 European Patch Door Kit (PHE1LBS) for reliable, complete hardware for frameless tempered glass doors — order now or contact us for glass cut specifications and compatible floor closers.
