CRL Black Bronze Patch Kit Double Doors w/ Transom+2 Sidelites No Lock

• For 3/8" or 1/2" (10 or 12 mm) tempered glass
• Available with or without locks

CRL PHA8 North American Double Door Kits (SKU: PHA8DU) include all hardware needed to install a pair of free-swinging glass doors with a fixed transom and two sidelites (glass and any extra structural supports for the fixed transom/sidelites are not included). Designed for tempered glass doors, this North American double door patch kit supports pivot setback of 2-3/4" (70 mm). A compatible floor closer with tapered spindle may be used (ordered separately).

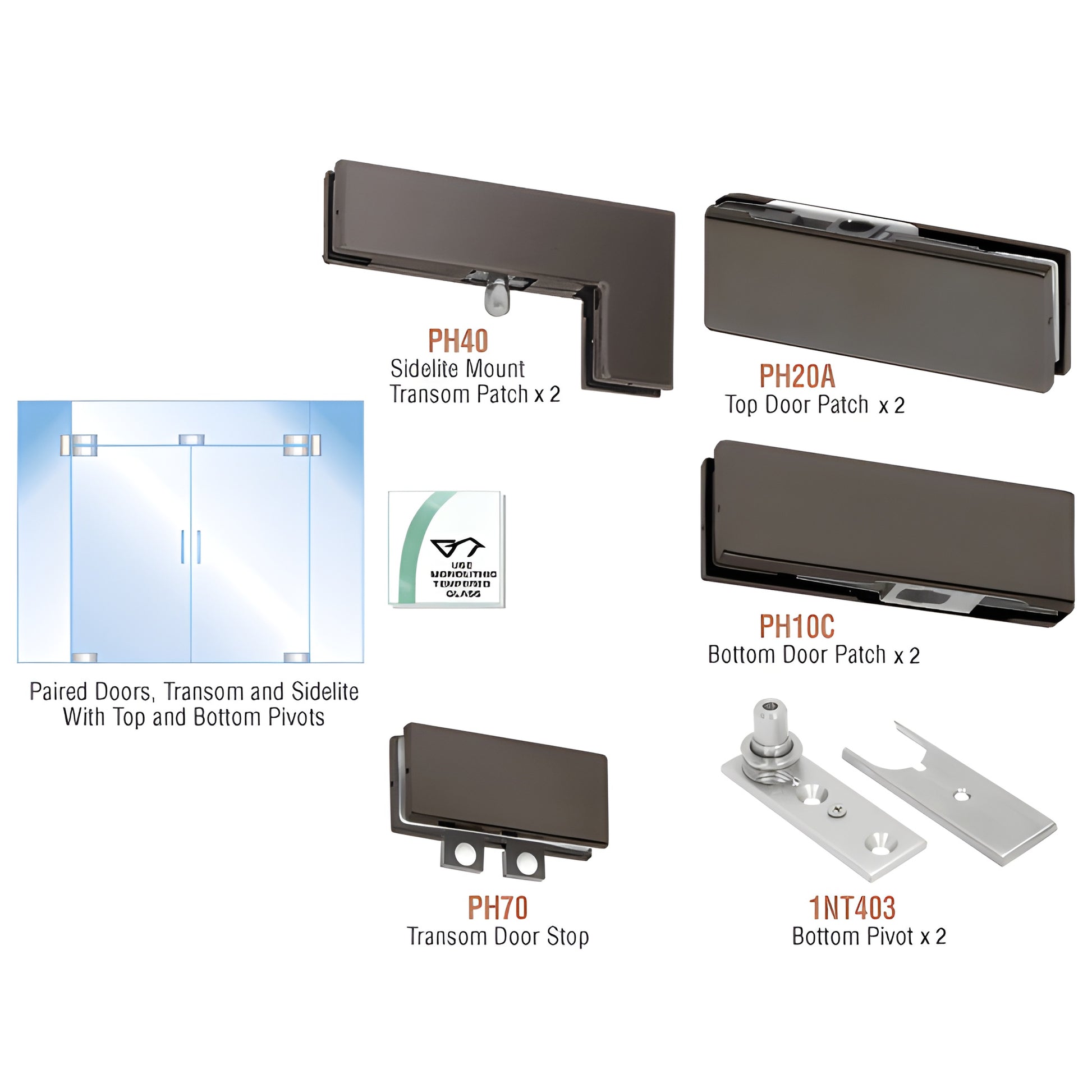

Kit contains:

• 2 × PH40 sidelite mount transom patches
• 2 × PH20A top door patches
• 2 × PH10C bottom door patches
• 1 × PH70 transom door stop
• 2 × 1NT403 bottom pivots
• Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)

Kits with locks also include two Cat. No. AMR205 patch locks; cylinders, thumbturns, and keepers are ordered separately. NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Durable, code-conscious double door patch kit for tempered glass storefronts and interior glass doors — order PHA8DU today.
