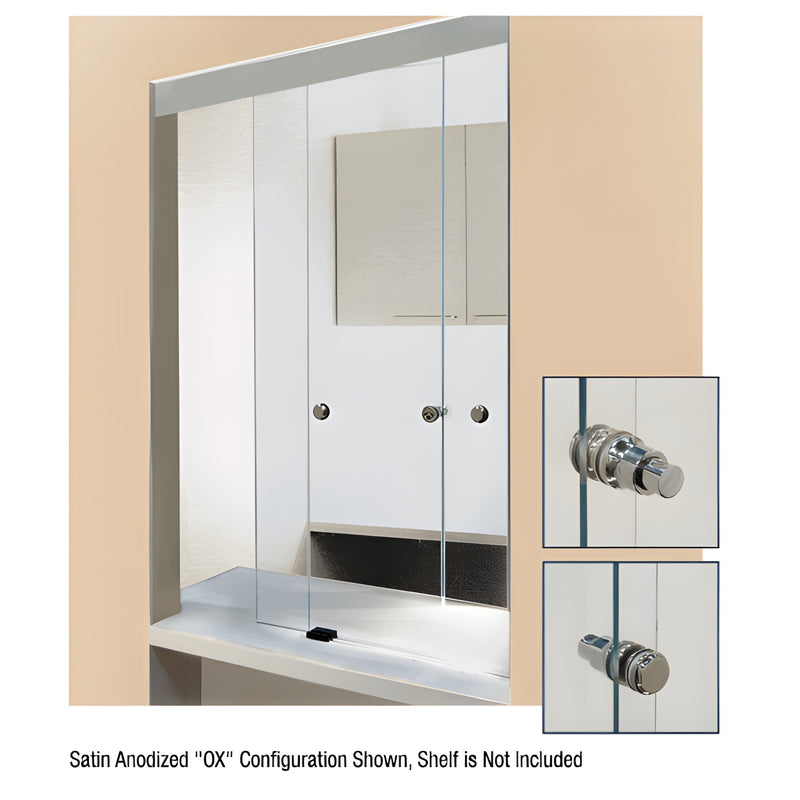

CRL Sharyn 36x48 Frameless Pass-Through Window, Black Bronze Anodized
Item# SH36480XBRZ
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Configuration
OX
Deal Tray Included
No
Finish/Color
Black Bronze Anodized
Frame Depth
2 in. (50.8 mm)
Glazing Type
1/4 in. (6 mm) Clear Tempered Glass
Handle Type
Self Latching
Height
48 in. (1219.2 mm)
Latch Type
LK49
Material
Aluminum
Usage
Interior
Width
36 in. (914.4 mm)
- Modern "Frameless" pass-thru window appearance vs traditional framed pass-thru windows
- No-hole top-hung clamp-on roller assemblies for tool-free installation and approximately 3/16" (5 mm) height adjustability
- Double track header with side walls that discreetly hide roller assemblies—no valance covers required
- Optional fixed lite header insert for fixed-side panels
- Available finishes: Brite Anodized, Satin Anodized, Dark Bronze
- Sized to fit opening: 36" W x 48" H (0.914 m x 1.22 m)
- Configuration: OX clerkside (O = fixed panel, X = sliding panel) — view: clerk side view
The CRL Sharyn Frameless Pass-Thru Window brings a contemporary look to service openings with a true frameless appearance. The "no-hole" clamp-on assemblies match header finishes and provide field height adjustment. The double track header hides top rollers for a clean aesthetic. Available in multiple two-panel sliding/fixed configurations, the Sharyn fits common service conditions and is stocked in a 36" x 48" pre-glazed model for fast turnaround. Stock models include a push-button lock; keyed or thru-glass locks are available for custom orders. Rubber bumpers ensure soft closing.
Stock model details: 36" x 48" (0.914 m x 1.22 m), 1/4" (6 mm) clear tempered glass pre-glazed option; unglazed or custom Quick-Fab windows available with 1/4" (6 mm) clear tempered glass. Header cut at 35-15/16". Height: 48". Bottom guide included.
STOCK WINDOWS INCLUDE: One double track header, 1/4" (6 mm) clear tempered glass (stock pre-glazed models), two top-hung roller assemblies per sliding panel, three bottom guides, one push-button lock with two strikes, and eight rubber bumpers. NOTE: Fixed lite models include one fixed lite header insert and bottom channel.
Most shipping weights are approximate and have not been verified. If you need exact shipping weight or cost, contact CRL Customer Service prior to ordering. Product images are representative; colors may vary by monitor.
SKU: SH36480XBRZ
Order the CRL Sharyn Frameless Pass-Thru Window (36"x48") today for a sleek, low-profile clerkside solution.
CAD Drawings - pdf
