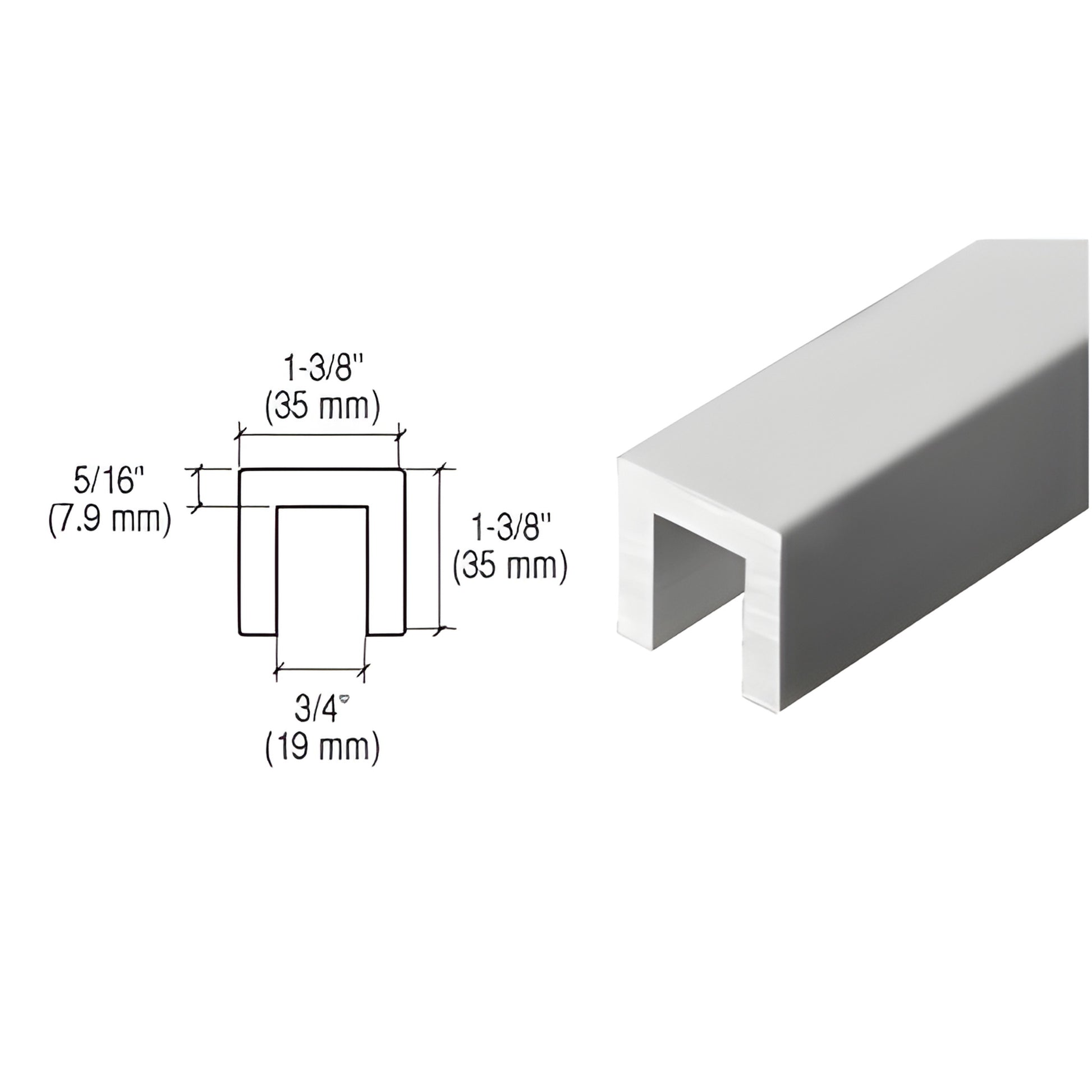

CRL-Blumcraft® Satin Anodized 324 Series 1-3/8" x 1-3/8" Extruded Aluminum Cap Rail
CRL-Blumcraft® Satin Anodized 324 Series 1-3/8" x 1-3/8" Extruded Aluminum Cap Rail
Regular price
$895.27 CAD
Regular price
Sale price
$895.27 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 324SA
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Satin Anodized |
| Glass Pocket Width 3/4 in. | (19 mm) |
| Glazing Insert ST | 302 |
| Glazing Thickness | 5/8 in. (16 mm) |
| Height 1-3/8 in. | (35 mm) |
| ICC ESR Number ESR | 3842 |
| Length 120 in. | (3048 mm) |
| Material | 6063-T5 Aluminum |
| Top of Rail to Top of Glass Pocket | 5/16 |
| Width 1-3/8 in. | (35 mm) |
Overview
CRL-Blumcraft®'s top-quality extruded cap rails are designed for 1/2" (12 mm) glass and crafted from durable 6063-T5 aluminum.
Available in two architectural finishes plus mill aluminum, these cap rails come in 120" (3.05 m) stock lengths or can be custom fabricated.
For installation, stainless steel adapter strips, very high bond cladding tape, and splice pins are essential.
Pre-drilled holes spaced at 24" (610 mm) on center and set screws ensure secure attachment to the adapter strips.
For precise shipping costs and weight inquiries, please contact CRL Customer Service.
Available in two architectural finishes plus mill aluminum, these cap rails come in 120" (3.05 m) stock lengths or can be custom fabricated.
For installation, stainless steel adapter strips, very high bond cladding tape, and splice pins are essential.
Pre-drilled holes spaced at 24" (610 mm) on center and set screws ensure secure attachment to the adapter strips.
For precise shipping costs and weight inquiries, please contact CRL Customer Service.
