CRL-Blumcraft® 324 Series Satin Anodized Extruded 1-3/8" Aluminum Cap Rail
CRL-Blumcraft® 324 Series Satin Anodized Extruded 1-3/8" Aluminum Cap Rail
Regular price
$806.60 CAD
Regular price
Sale price
$806.60 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 324SA
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

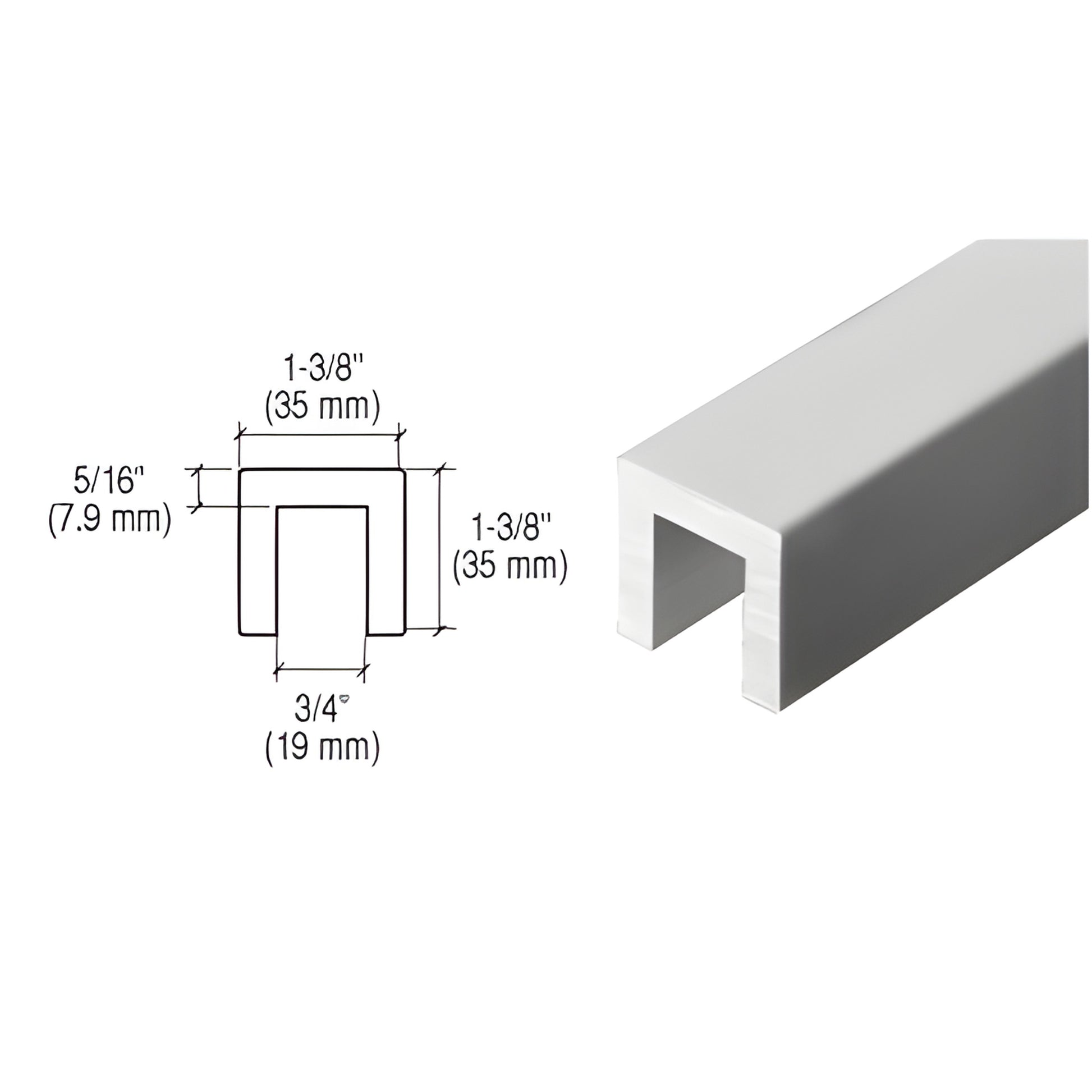

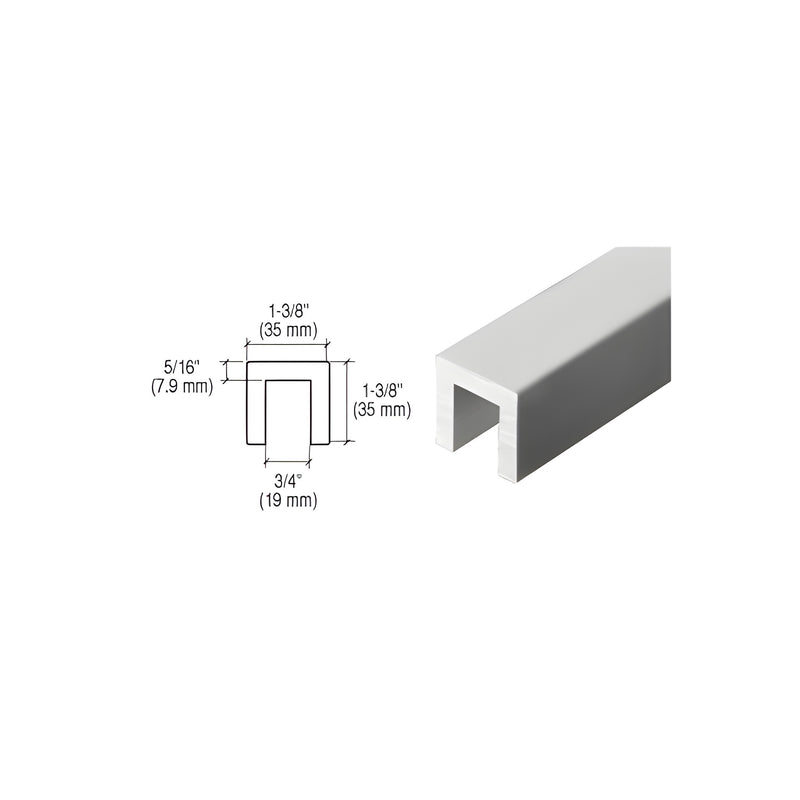

Finish/Color
Satin Anodized
Glass Pocket Width
3/4 in. (19 mm)
Glazing Insert
ST302
Glazing Thickness
5/8 in. (16 mm)
Height
1-3/8 in. (35 mm)
ICC ESR Number
ESR 3842
Length
120 in. (3048 mm)
Material
6063-T5 Aluminum
Top of Rail to Top of Glass Pocket
5/16
Width
1-3/8 in. (35 mm)
Overview
- For 1/2" (12 mm) glass
- Ready-to-Install
- Extruded heavy-duty solid aluminum construction (6063-T5)
- Two architectural finishes, plus mill aluminum available from stock
- Stainless steel adapter strips sold separately
- Sold in 120" (3.05 m) stock lengths or custom fabricated to size
CRL-Blumcraft® Top Quality Extruded Cap Rails — SKU 324SA are engineered for 1/2" glass and manufactured from 6063-T5 aluminum. Available in two architectural finishes plus mill aluminum, these ready-to-install cap rails provide a robust, low-profile finish for glass partitions, railings, and storefront applications. Use stainless steel adapter strips and Very High Bond cladding tape (adapter strips sold separately) with splice pins for a secure installation.
When installing CRL-Blumcraft® 324 and 339 Series Cap Rails, apply stainless steel adapter strips to the glass edge using Very High Bond Tape before sliding on the cap rail to ensure proper adhesion and alignment.
NOTE: Each cap rail includes pre-drilled holes 24" (610 mm) on center and set screws along one side for attachment to the adapter strips.
Order SKU 324SA in 120" stock lengths or request custom fabrication—contact CRL Customer Service to place your order.
