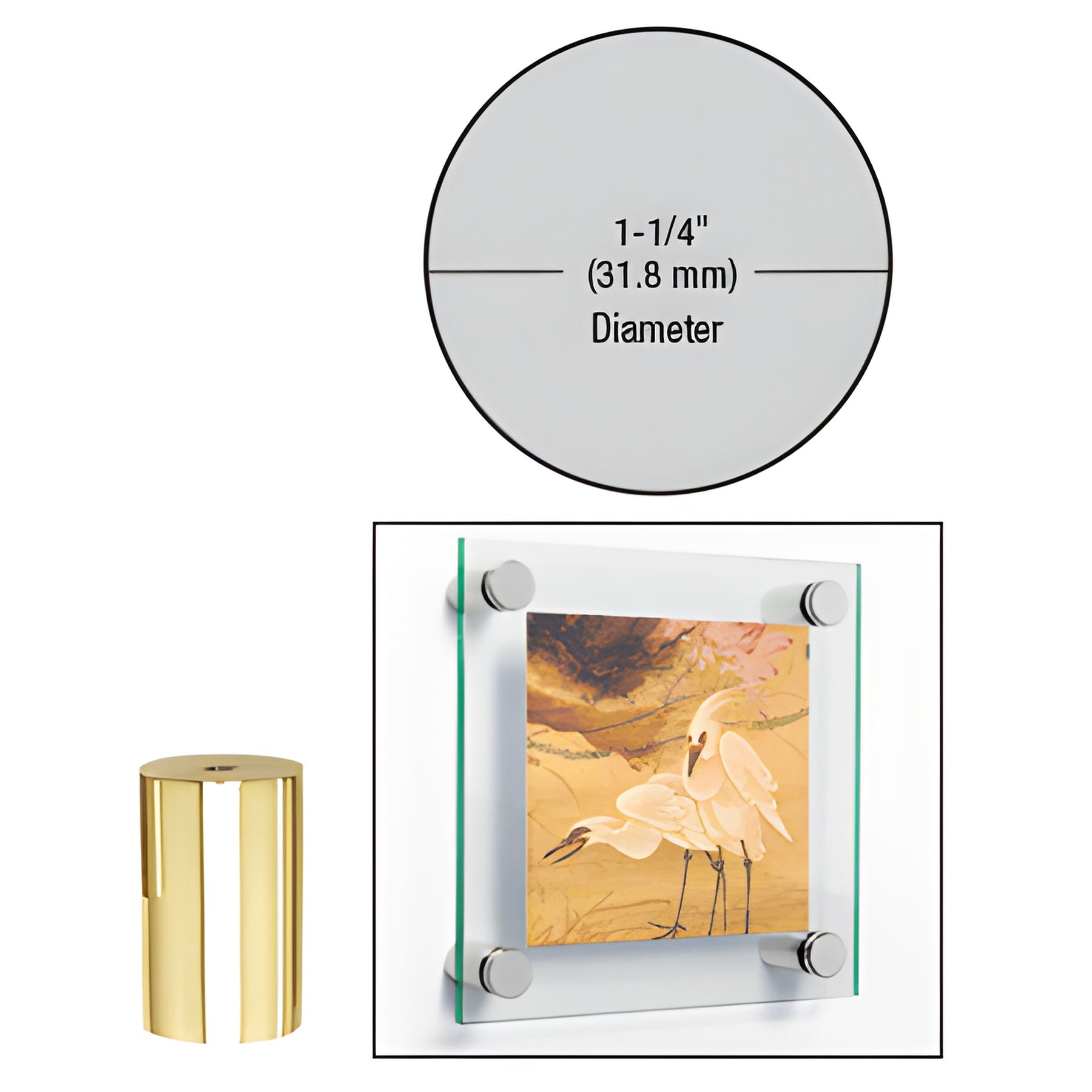

CRL Brass 1-1/4" Dia x 2" Glass Standoff Base

• Available in Several Lengths
• Custom Lengths and Finishes Available
• Six Popular Decorator Finishes
• Use Monolithic Tempered Glass

With CRL's 1-1/4" Diameter Standoff System you can create multiple contemporary looks using our 1-1/4" (32 mm) standoffs. The variety of bases and caps lets you design retail, commercial, or residential projects—ideal for glass signage, architectural panels, and display mounting. By drilling 5/8" (16 mm) holes in glass, plastic, or wood panels and polishing the edges, you achieve a polished, modern standoff installation. Each stock 1-1/4" (32 mm) round or square standoff base is drilled and tapped 5/16"-18 through the complete length. Custom lengths and finishes are available—request a quote from our Technical Sales Department. SKU: S0B1142BR

Available in many distinctive and popular finishes, CRL's standoffs combine high-tech design with durable appearance. The flexible system can incorporate CRL Edge Grips and Swivel Fittings for maximum versatility. 1-1/4" (32 mm) standoff bases come in eight lengths, from 1/4" to 6" (6 to 152.4 mm). Matching Cap Assemblies must be ordered separately.

The CRL Standoff System includes a full range of Mounting Accessories available in any quantity to avoid unused components. For installation techniques or design assistance using our standoffs, contact our Technical Sales Department.

NOTE: Minimum material thickness for use with 1-1/4" (32 mm) diameter standoff bases is 1/4" (6 mm) when used with Standard and Low Profile Caps, and 3/8" (10 mm) when used with Flush Mount Cap.

Product Warning:

Due to diverse applications, weight limitations for standoff systems depend on wall or substrate anchoring and material strengths. Verify anchoring and substrate capacity for glass standoffs and signage mounting before installation.
