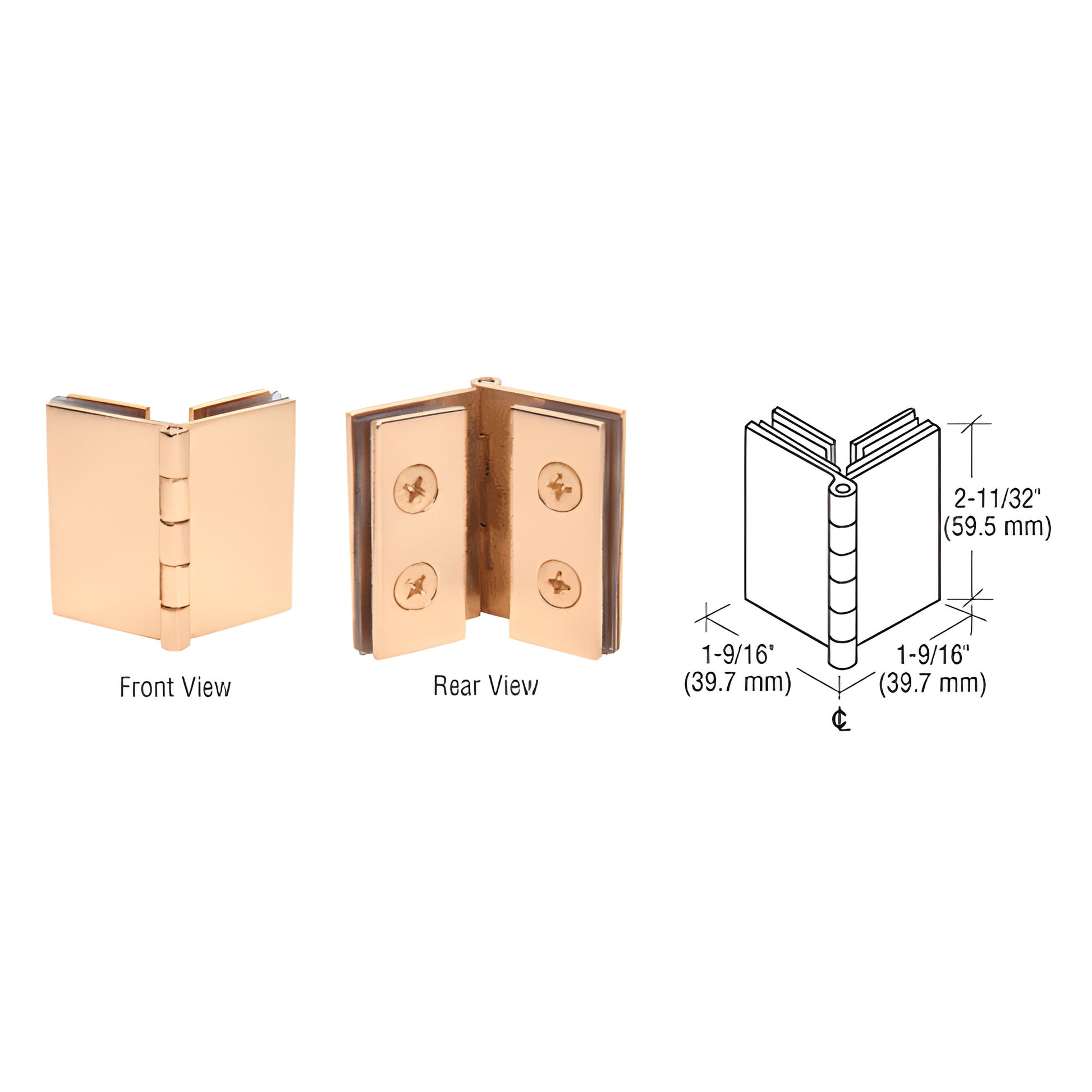

• EH252 polished brass double glass-to-glass 90 return hinge, front and rear views, for 1/4-5/16" (6-8mm) glass.
1 1

CRL

CRL Brass Glass-to-Glass 90° Return Hinge for Shower Doors

CRL Brass Glass-to-Glass 90° Return Hinge for Shower Doors

$121.60 CAD
$121.60 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# EH252
Shipping Weight: 1.08 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Polished Brass
Glazing Thickness
1/4 in. To 5/16 in. (6mm To 8 mm)
Height
2-11/32 in. (59.5 mm)
Material
Brass
Maximum Door Width
22 in. (558.8 mm)
Pack Quantity
2
Weight Capacity
30 lbs. (13.6 kg)
Width
1-9/16 in. (39.7 mm)

Overview

  • For 1/4" to 5/16" (6 to 8 mm) glass
  • Two per package
  • Four 1/2" (12 mm) holes required

For glass-to-glass 90 degree return applications, CRL Brass Double Glass-to-Glass 90 Degree Return Hinges (SKU: EH252) feature forged brass construction with a screw-attachment design and clear vinyl pad inserts to protect glass. Ideal for frameless glass doors and shower return panels, these double glass-to-glass 90° return hinges are available in polished brass with lacquered finish or chrome plated. Requires four 1/2" (12 mm) holes in glass for mounting. Maximum recommended door width is 22" (559 mm); maximum weight should not exceed 30 lbs. (13.6 kg).

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.

Brass Finish Advisory:
Although durable, brass is prone to oxidation and can develop a tarnished appearance over time. For care and maintenance details, view the Brass Finish Disclaimer in the Technical References section below.

Choose EH252 for durable, protective brass double glass-to-glass 90° return hinges—order now or contact CRL for more information.
