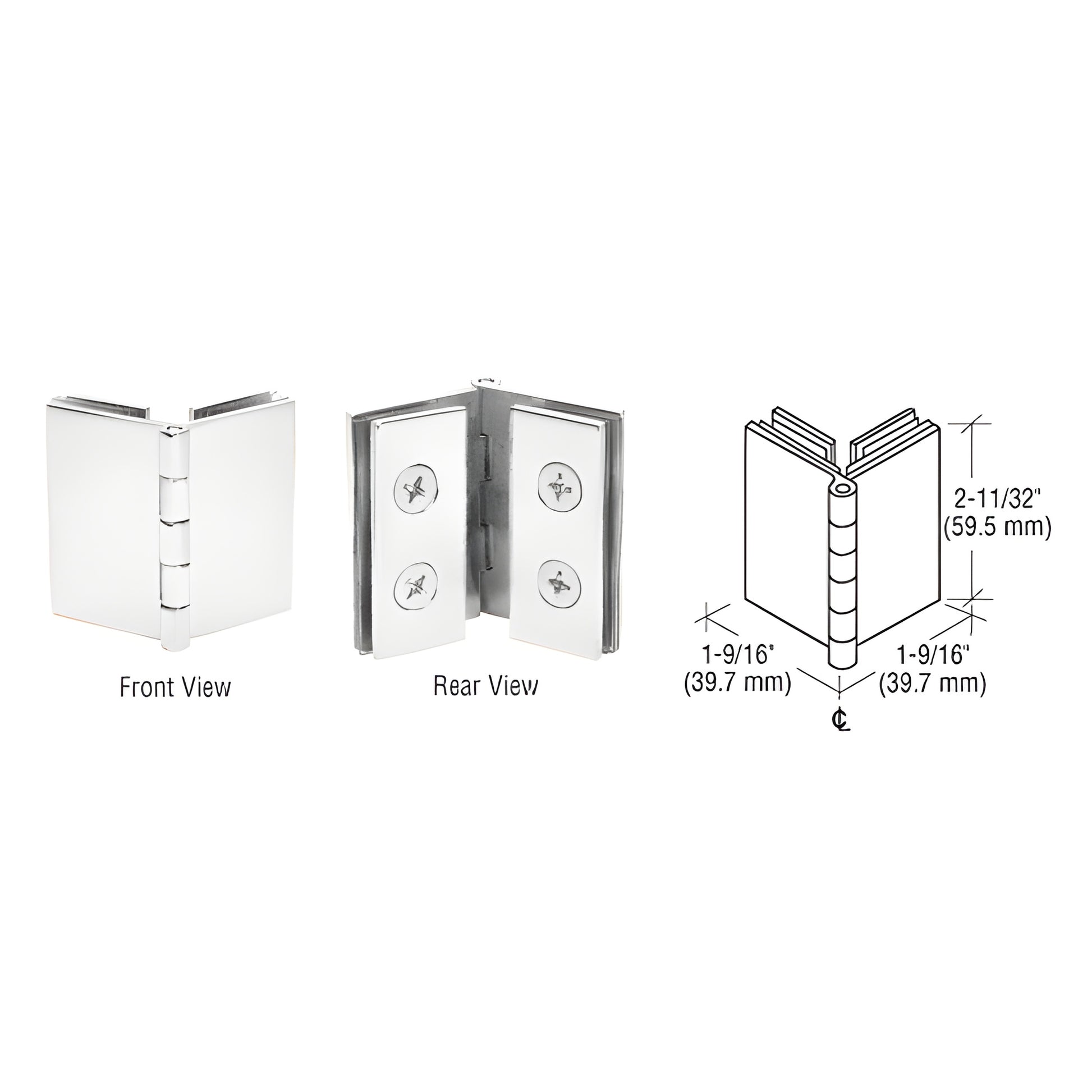

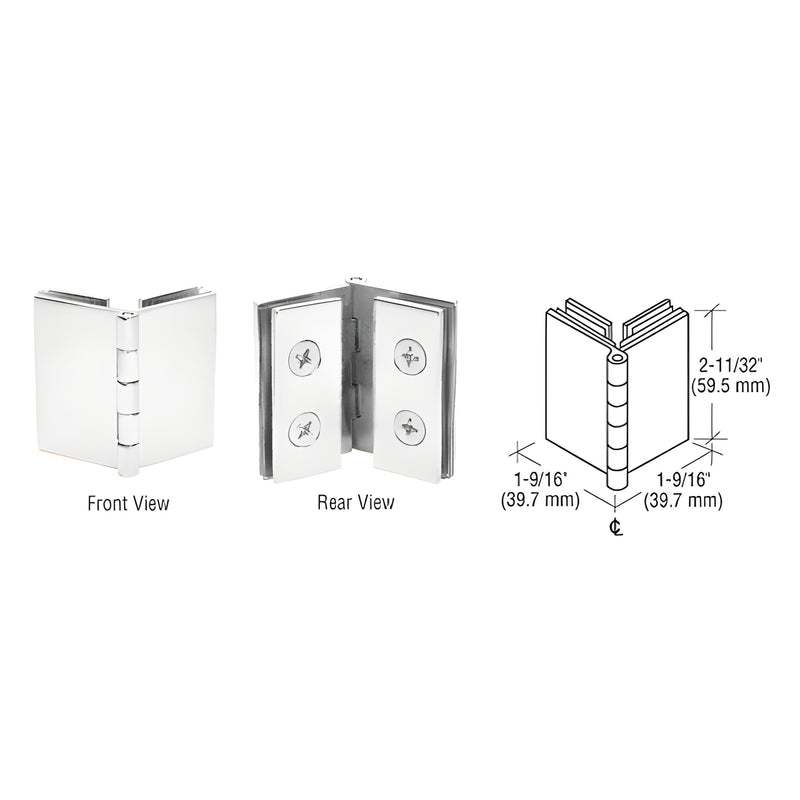

CRL Chrome 90° Double Glass-to-Glass Shower Door Hinge
CRL Chrome 90° Double Glass-to-Glass Shower Door Hinge
Regular price
$127.13 CAD
Regular price
Sale price
$127.13 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH254
Shipping Weight: 1.1 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.1 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Chrome
Glazing Thickness
1/4 in. To 5/16 in. (6mm To 8 mm)
Height
2-11/32 in. (59.5 mm)
Material
Brass
Maximum Door Width
22 in. (558.8 mm)
Pack Quantity
2
Weight Capacity
30 lbs. (13.6 kg)
Width
1-9/16 in. (39.7 mm)
Overview
- For 1/4" to 5/16" (6 to 8 mm) glass
- Two per package
- Four 1/2" (12 mm) holes required
For glass-to-glass 90° return installations, the CRL Brass Double Glass-to-Glass 90 Degree Return Hinges (SKU: EH254) provide forged brass construction with a screw-attachment design for secure mounting. Clear vinyl pad inserts protect glass surfaces. Available finishes: polished brass with lacquer or chrome plated. Requires four 1/2" (12 mm) holes in the glass. Maximum recommended door width: 22" (559 mm). Maximum weight: 30 lbs. (13.6 kg). These hinges are a durable option for frameless glass-to-glass 90-degree return connections and replacement projects requiring 6–8 mm glass hardware.
Specifications
CAD Drawings - dwg
