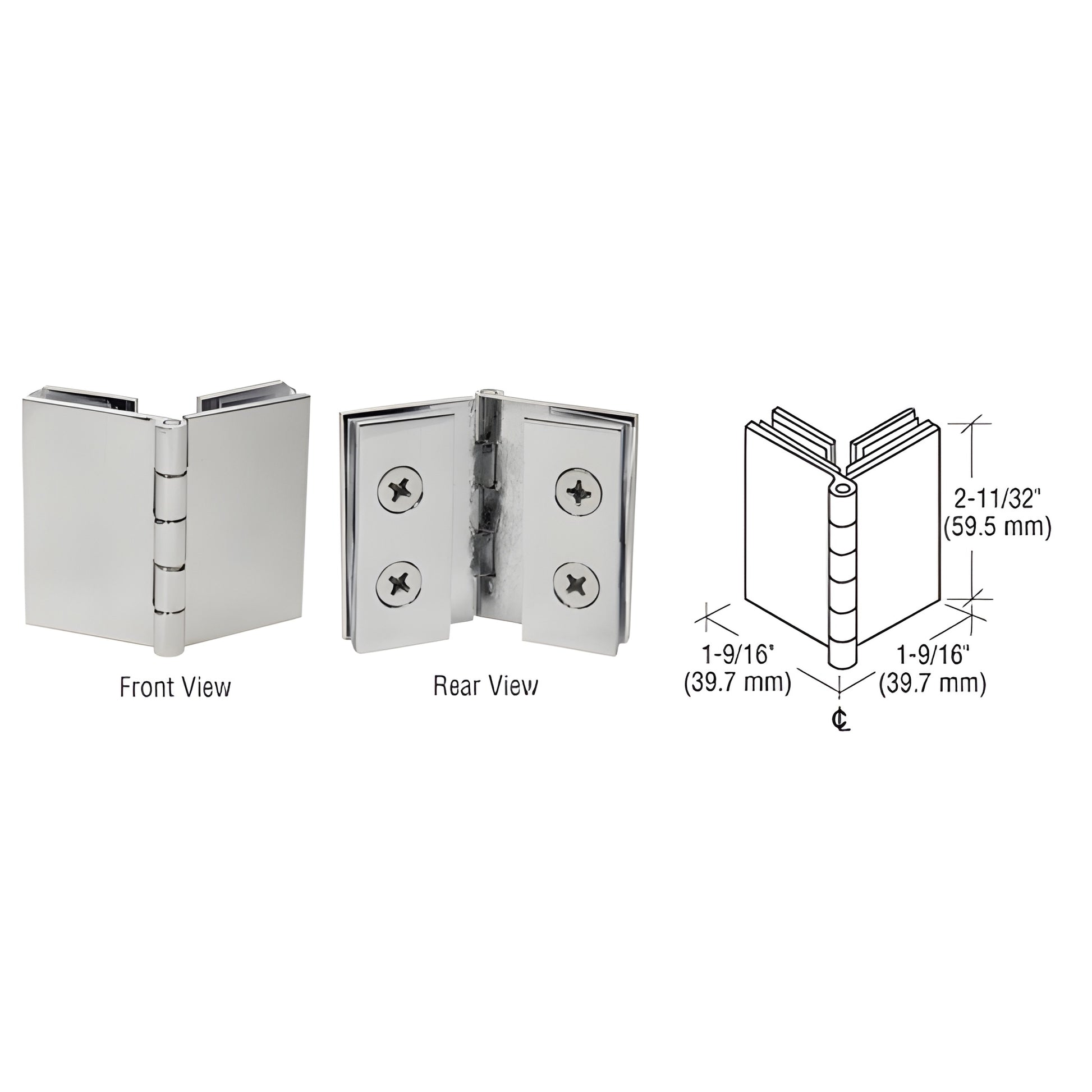

CRL Brushed Nickel Double Glass-to-Glass 90 Degree Return Hinge

Finish (3)

Polished Brass
Brushed Nickel
Polished Chrome

Overview

SKU	EH253
Sold as	1 Pack
Finish/Color:	Brushed Nickel
Glazing Thickness	1/4 in. To 5/16 in. (6mm To 8 mm)
Height	2-11/32 in. (59.5 mm)
Material	Brass
Maximum Door Width	22 in. (558.8 mm)
Weight Capacity	30 lbs. (13.6 kg)
Width	1-9/16 in. (39.7 mm)

Description

Product Details

For 1/4" to 5/16" (6 to 8 mm) Glass
Two Per Package
Four 1/2" (12 mm) Holes Required

For glass-to-glass 90 degree return applications. CRL Brass Double Glass-to-Glass 90 Degree Return Hinges are made of forged brass construction with a screw attachment feature. Clear vinyl pad inserts protect glass. Available in polished brass with lacquered finish or chrome plated. Requires four 1/2" (12 mm) holes in glass for mounting. The maximum recommended door width is 22" (559 mm). Maximum weight should not exceed 30 lbs. (13.6 kg).
