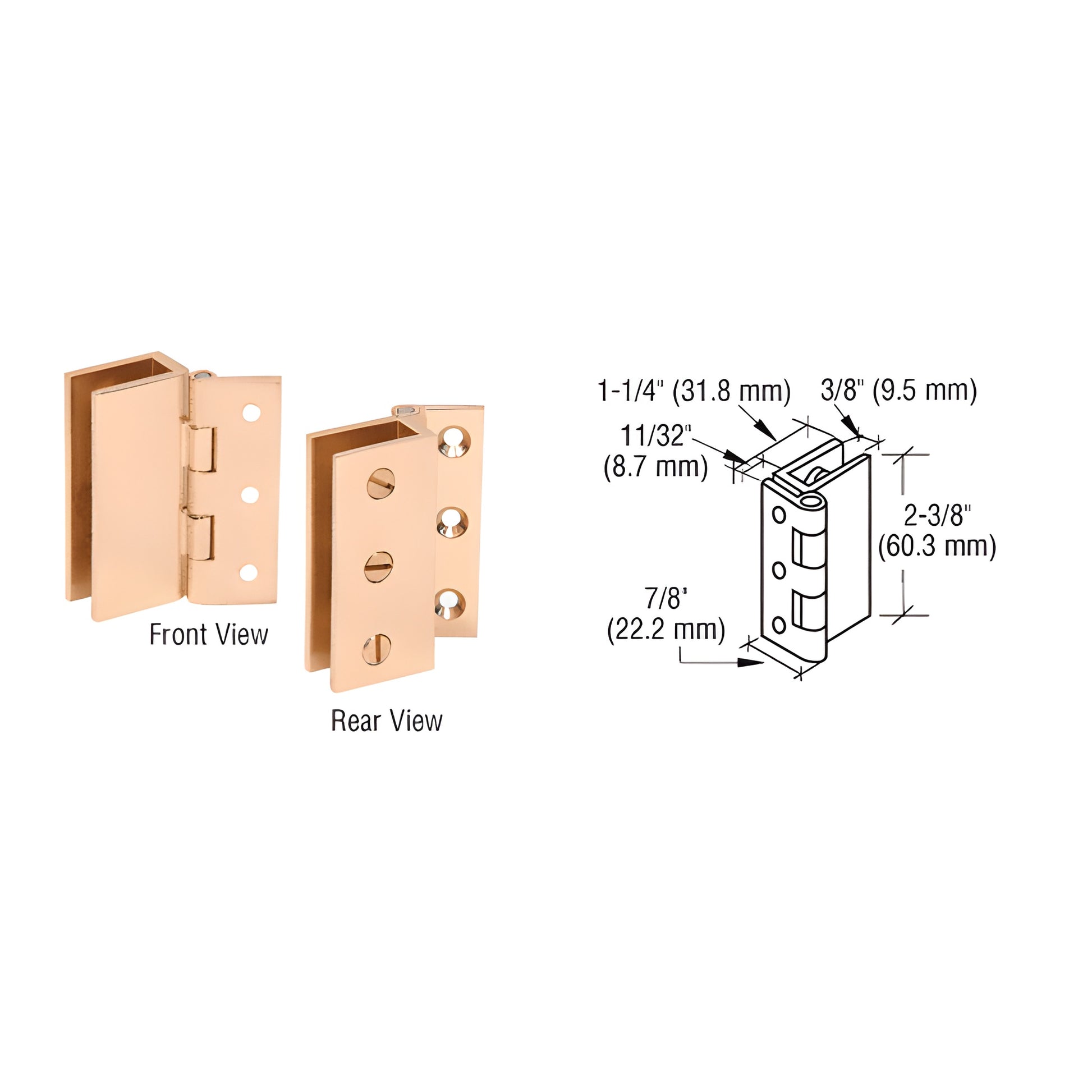

CRL Brass Large Wall-Mount Set Screw Door Hinge - Heavy-Duty
CRL Brass Large Wall-Mount Set Screw Door Hinge - Heavy-Duty
Regular price
$76.00 CAD
Regular price
Sale price
$76.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH170
Shipping Weight: 10.56 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.56 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Brass
Glazing Thickness
3/16 in. To 5/16 in. (5 mm To 8 mm)
Height
2-3/8 in. (60.3 mm)
Material
Brass
Maximum Door Width
18 in. (457.2 mm)
Pack Quantity
2
Weight Capacity
20 lbs. (9.1 kg)
Width
1-1/4 in. (31.8 mm)
Overview
- For 3/16" to 5/16" (5 to 8 mm) tempered glass
- No holes or cut-outs required — no-drill attachment
- Use with monolithic tempered glass
- Two hinges per package with matching finish wood screws
CRL Large Wall Mount Set Screw Hinges—designed for glass shower doors and interior tempered glass panels that require a clean, frameless look. These wall-mount set-screw hinges accept 3/16" to 5/16" (4.8 to 7.9 mm) tempered glass and secure the glass using three plastic-tipped set screws to prevent glazing damage. Recommended maximum door width: 18" (457 mm). Maximum recommended weight per door: 20 lbs (9 kg). Smooth operation and a thick-glass appearance without drilling or glass cut-outs make these hinges ideal for frameless glass shower doors, cabinet doors, and partition panels.
Brass Finish Advisory:
Brass is durable but can oxidize, which may cause a tarnished appearance over time regardless of packaging or storage. See the Brass Finish Disclaimer in the Technical References for care and maintenance tips.
Two-per-pack. SKU: EH170. Order now to upgrade your frameless glass installation with no-drill, set-screw wall mount hinges.
