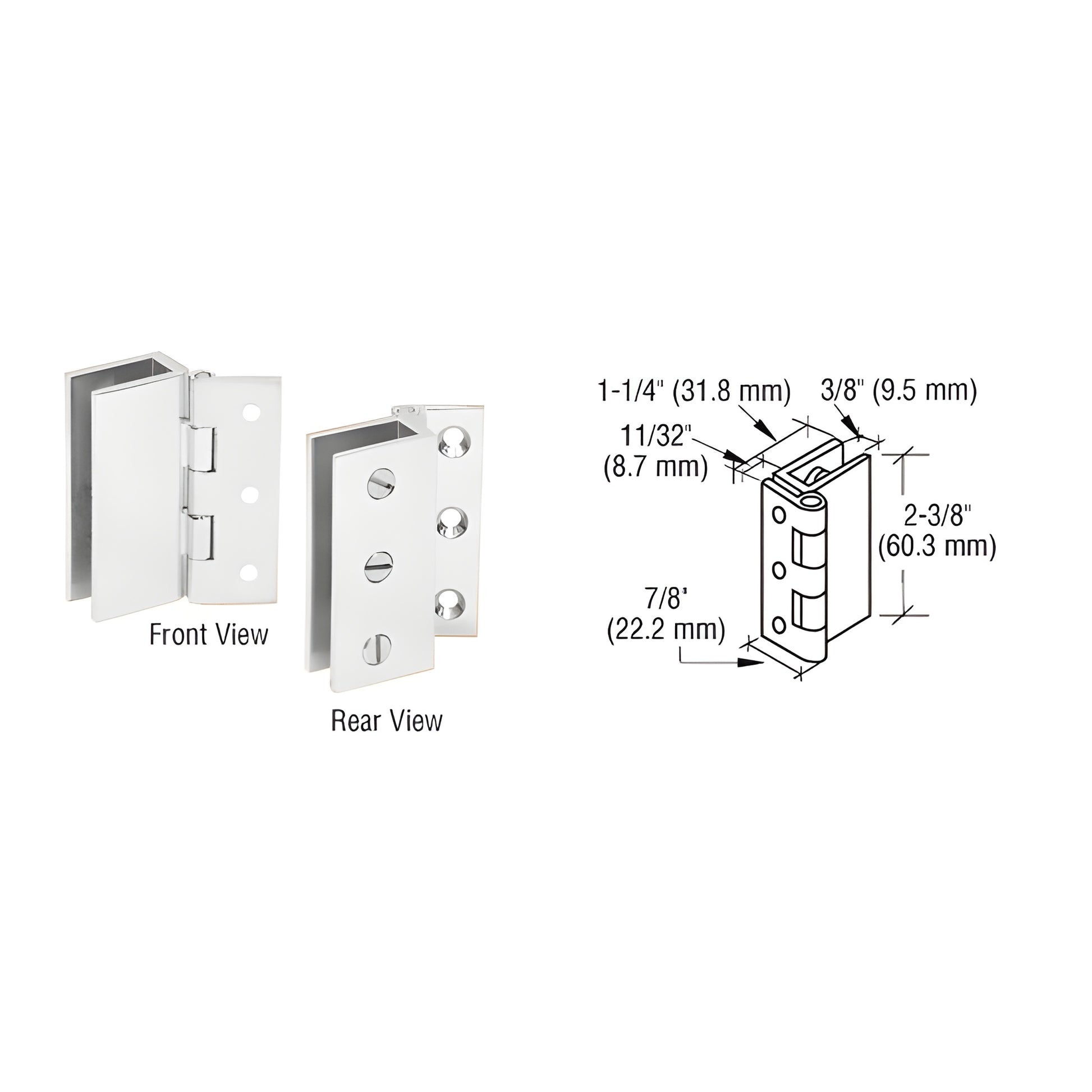

CRL Chrome Large Wall-Mount Set-Screw Hinge for Shower Glass Doors
CRL Chrome Large Wall-Mount Set-Screw Hinge for Shower Glass Doors
Regular price
$80.14 CAD
Regular price
Sale price
$80.14 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH168
Shipping Weight: 4.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Chrome
Glazing Thickness
3/16 in. To 5/16 in. (5 mm To 8 mm)
Height
2-3/8 in. (60.3 mm)
Material
Brass
Maximum Door Width
18 in. (457.2 mm)
Pack Quantity
2
Weight Capacity
20 lbs. (9.1 kg)
Width
1-1/4 in. (31.8 mm)
Overview
- Fits 3/16" to 5/16" (5 to 8 mm) monolithic tempered glass
- No holes or cut-outs required — no-drill set-screw glass mounting
- Three plastic-tipped set screws secure the glass
- Two hinges per package; includes matching finish wood screws
These CRL Large Wall Mount Set Screw Hinges (SKU: EH168) are designed for tempered glass doors and panels, providing a thick-glass look with smooth operation. Accepts 3/16" to 5/16" (4.8 to 7.9 mm) tempered glass. Recommended maximum door width: 18" (457 mm). Recommended maximum door weight: 20 lbs. (9 kg). Key benefits: easy no-drill installation, durable set-screw retention, and a clean wall-mounted appearance—ideal for shower doors, glass cabinet doors, and display cases that require a large wall-mount hinge for tempered glass.
Order EH168 now to get two wall-mount set-screw hinges per pack for your tempered glass door project.
Specifications
CAD Drawings - dwg
