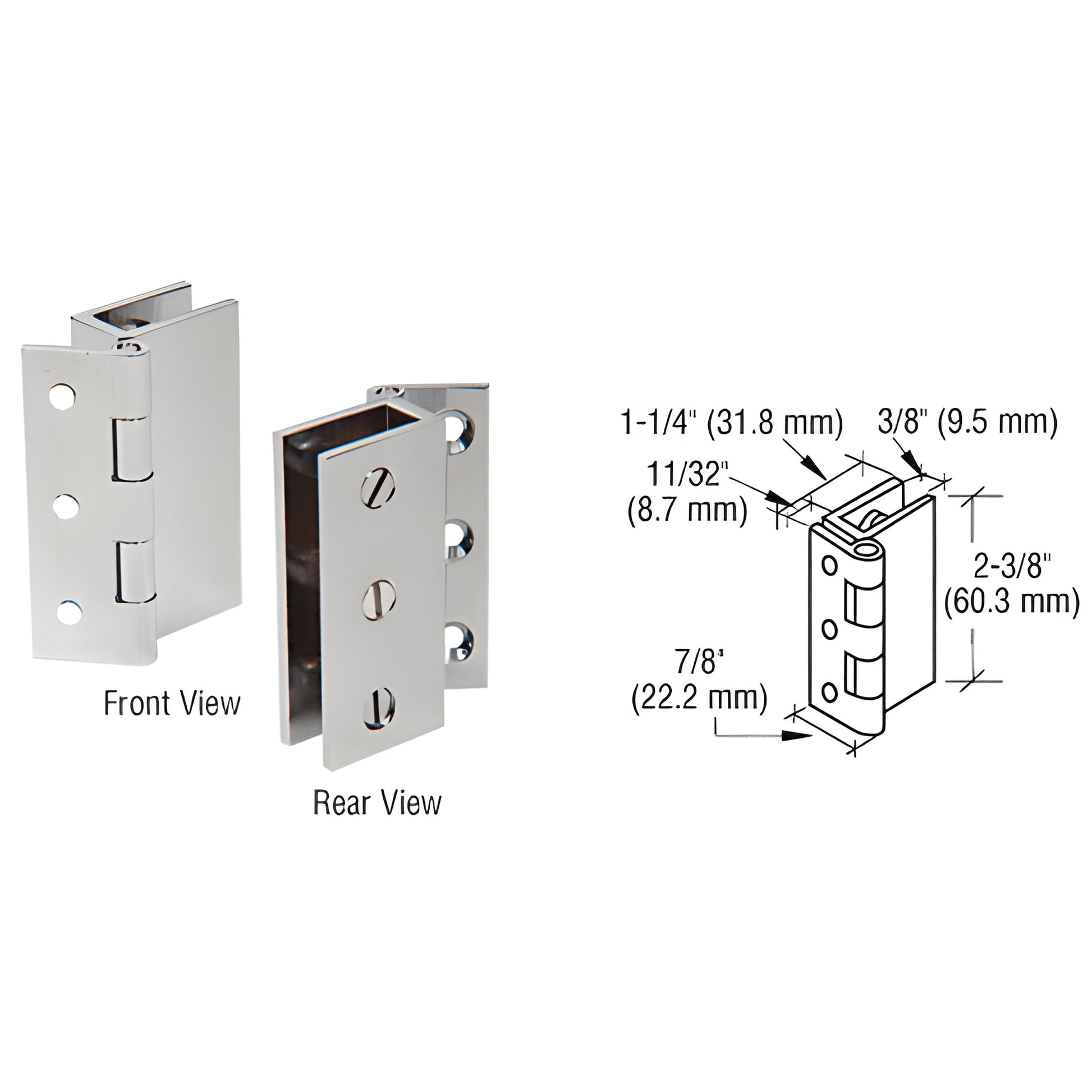

CRL Brushed Nickel Large Wall Mount Set Screw Door Hinge
CRL Brushed Nickel Large Wall Mount Set Screw Door Hinge
Regular price
$80.14 CAD
Regular price
Sale price
$80.14 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH169
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Nickel
Glazing Thickness
3/16 in. To 5/16 in. (5 mm To 8 mm)
Height
2-3/8 in. (60.3 mm)
Material
Brass
Maximum Door Width
18 in. (457.2 mm)
Pack Quantity
2
Weight Capacity
20 lbs. (9.1 kg)
Width
1-1/4 in. (31.8 mm)
Overview
- For 3/16" to 5/16" (5 to 8 mm) glass
- No holes or cut-outs required — no-drill glass hinge
- Use monolithic tempered glass
- Two per package
These CRL Large Wall Mount Set Screw Hinges (SKU: EH169) accept 3/16" to 5/16" (4.8 to 7.9 mm) tempered glass to achieve a thick-glass look while maintaining smooth operation. Recommended maximum door width: 18" (457 mm). Maximum door weight: 20 lbs. (9 kg). Glass is secured with three plastic-tipped set screws for a no-drill attachment—ideal for wall mount set screw hinges for tempered glass doors and frameless glass installations. Two hinges per pack with matching finish wood screws.
Order EH169 now for durable, no-drill tempered glass hinges.
Specifications
CAD Drawings - dwg
