Product Details
- Choice of Two Styles Available in Several Popular Finishes
- Low Profile Cap Assembly
- 1 Each Cap
- 1 Each 1" (25.4 mm) Allen Screw
- 1 Each Washer (Cat. No. HW058 )
- 1 Each Washer with Sleeve (Cat. No. HW057 ). Custom Finishes quoted upon request. Quotes are available to current CRL customers who are Signed In, CRL Technical Sales . Product Warning: Due to the diversified variety of applications, weight limitations for Standoff systems are dependent upon wall or substrate anchoring. Brass Finish Advisory: Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

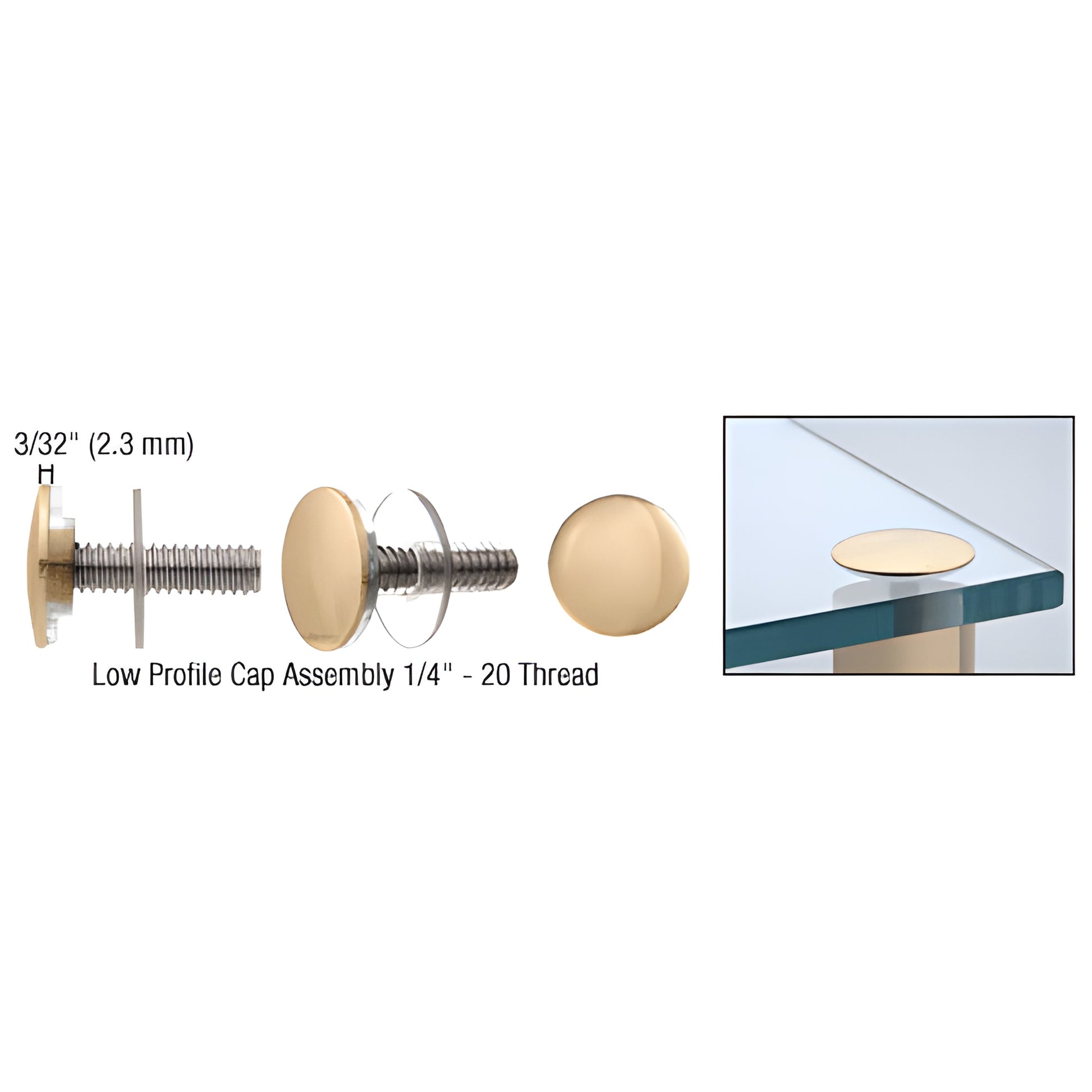

This CRL Standoff Cap Assembly is used in conjunction with the CRL 3/4" (19 mm) Standoff Base to create displays, furniture or signage. Standard Cap Assemblies are easily installed using our Cat. No. S0W Standard Wrench. The new Low Profile Cap Assemblies, which measure 3/32" (2.3 mm) in height, are used for desk tops or furniture where a low profile design is preferred. Low Profile Caps are tightened by placing a flat neoprene or rubber pad in the palm of your hand, applying pressure and turning. Available in several finishes that can be used indoors or outdoors.
NOTE: Panels require 1/2" (12.7 mm) holes for assembly.
Cap Assemblies Consist of:
1 Each Cap
1 Each 1" (25.4 mm) Allen Screw
1 Each Washer (Cat. No. HW058)
1 Each Washer with Sleeve (Cat. No. HW057).
Custom Finishes quoted upon request. Quotes are available to current CRL customers who are Signed In, CRL Technical Sales.
Product Warning:
Due to the diversified variety of applications, weight limitations for Standoff systems are dependent upon wall or substrate anchoring.
Brass Finish Advisory:Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
