CRL Brass Patch Connector for Glass Doors with Support Fin Bracket
CRL Brass Patch Connector for Glass Doors with Support Fin Bracket
Regular price
$171.32 CAD
Regular price
Sale price
$171.32 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH81BR
Shipping Weight: 2.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Brass
Glazing Thickness
3/8 in.,1/2 in. (10 mm,12 mm)
Overview
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Use Monolithic Tempered Glass

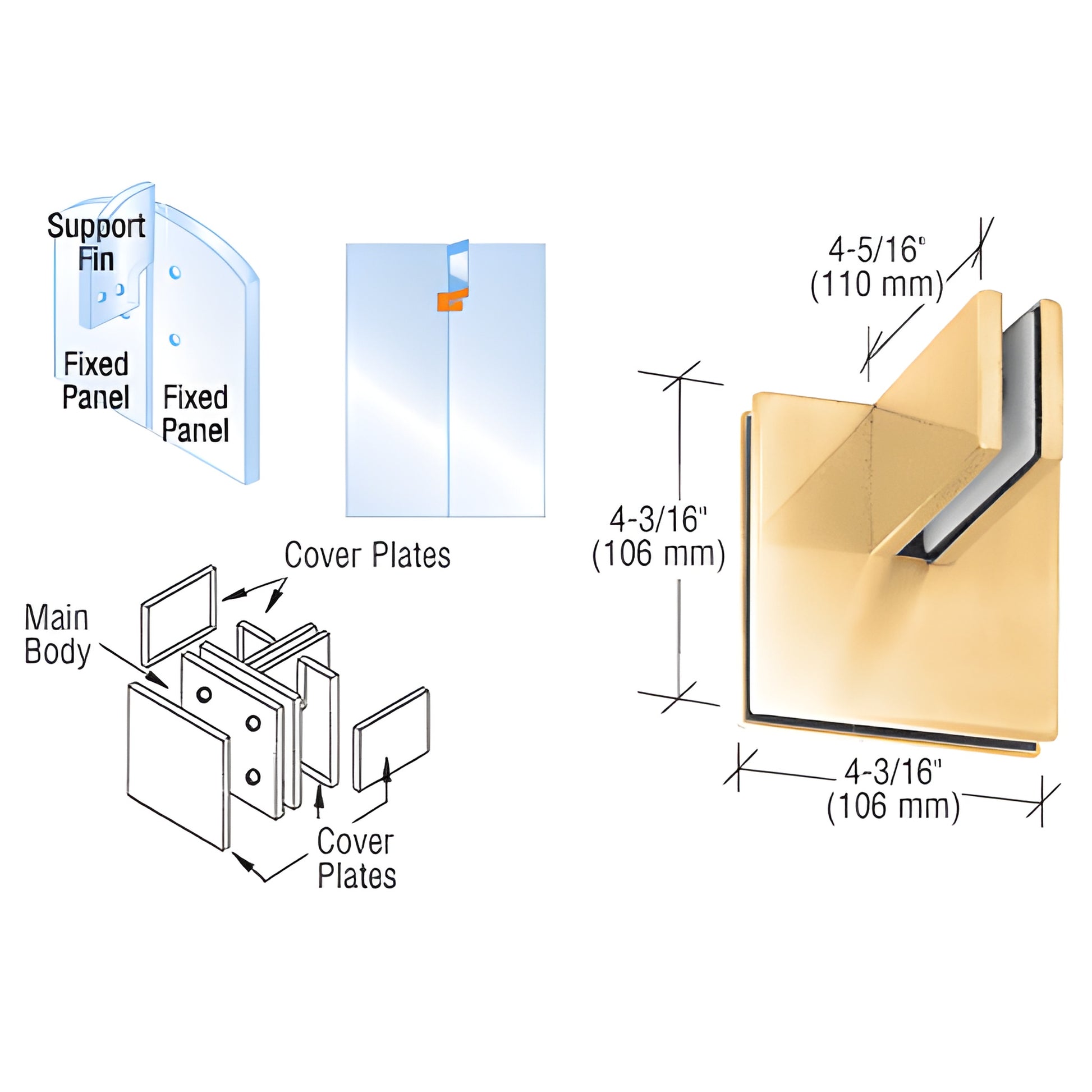

This CRL Patch Connector with Support Fin Bracket (SKU: PH81BR) joins a two‑lite glass junction and provides extra structural support where increased glass connection strength is required. The support fin glass must meet approved sizing criteria (refer to GANA or the Manufacturer's Manual) and is secured to the ceiling with a PH94 Ceiling Mounted Support Fin Bracket.
GLASS FABRICATION REQUIRED:
Six 3/4" (19 mm) diameter holes and a corner notch
COMES WITH:
Template and instructions
Product Warning:
These fittings are not for use with laminated glass.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and can develop a tarnished appearance over time regardless of packaging or storage. See the Brass Finish Disclaimer in Technical References for care and maintenance guidance.
Ideal for frameless glass partition systems and commercial shower or storefront applications requiring reinforced two‑lite connections — order PH81BR or contact us for installation support.
