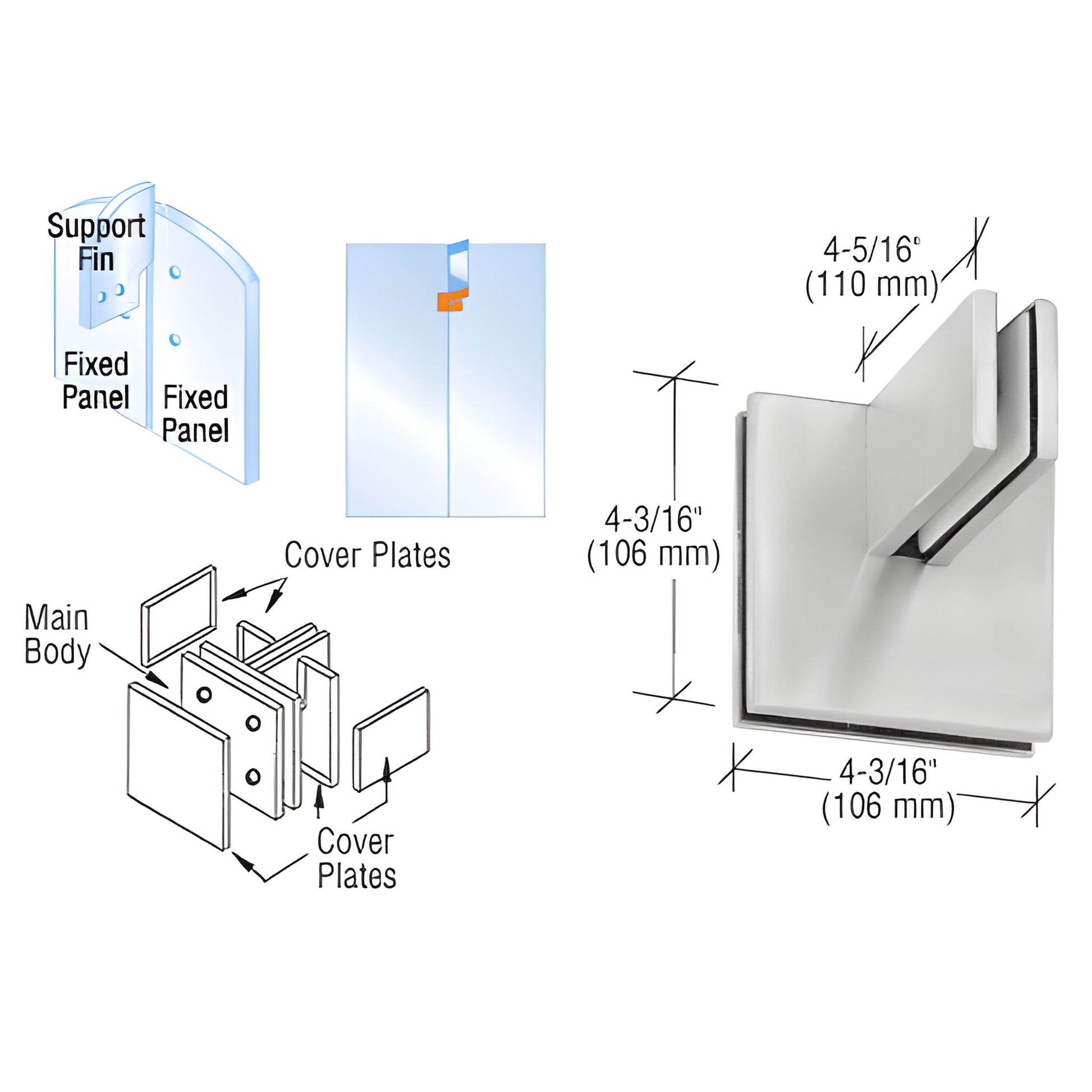

CRL Brushed Stainless Patch Connector Support Fin Bracket for Glass
CRL Brushed Stainless Patch Connector Support Fin Bracket for Glass
Regular price
$178.46 CAD
Regular price
Sale price
$178.46 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH81BS
Shipping Weight: 1.12 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.12 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in.,1/2 in. (10 mm,12 mm)
Overview
- For 3/8" or 1/2" (10 or 12 mm) glass
- Use monolithic tempered glass
SKU: PH81BS
This CRL patch connector with support fin bracket is designed to join a two‑lite glass junction that requires added structural support. Use with a properly sized support fin glass per GANA or manufacturer guidelines, and secure the support fin to the ceiling using the PH94 Ceiling Mounted Support Fin Bracket. Ideal for frameless glass partitions and commercial glass installations needing reinforced corner support.
GLASS FABRICATION REQUIRED:
Six 3/4" (19 mm) diameter holes and corner notch
COMES WITH:
Template and instructions
Product Warning:
Not for use with laminated glass. Use only with monolithic tempered glass specified above.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not rust‑proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
For secure, code‑compliant glass junctions using tempered glass, choose the PH81BS patch connector with support fin bracket. Order now or contact CRL for technical assistance.
