CRL Satin Anodized Glass Door Patch Connector with Support Fin
CRL Satin Anodized Glass Door Patch Connector with Support Fin
Regular price
$182.74 CAD
Regular price
Sale price
$182.74 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH81A
Shipping Weight: 1.87 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.87 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in.,1/2 in. (10 mm,12 mm)
Overview
- For 3/8" or 1/2" (10 or 12 mm) glass
- Use monolithic tempered glass

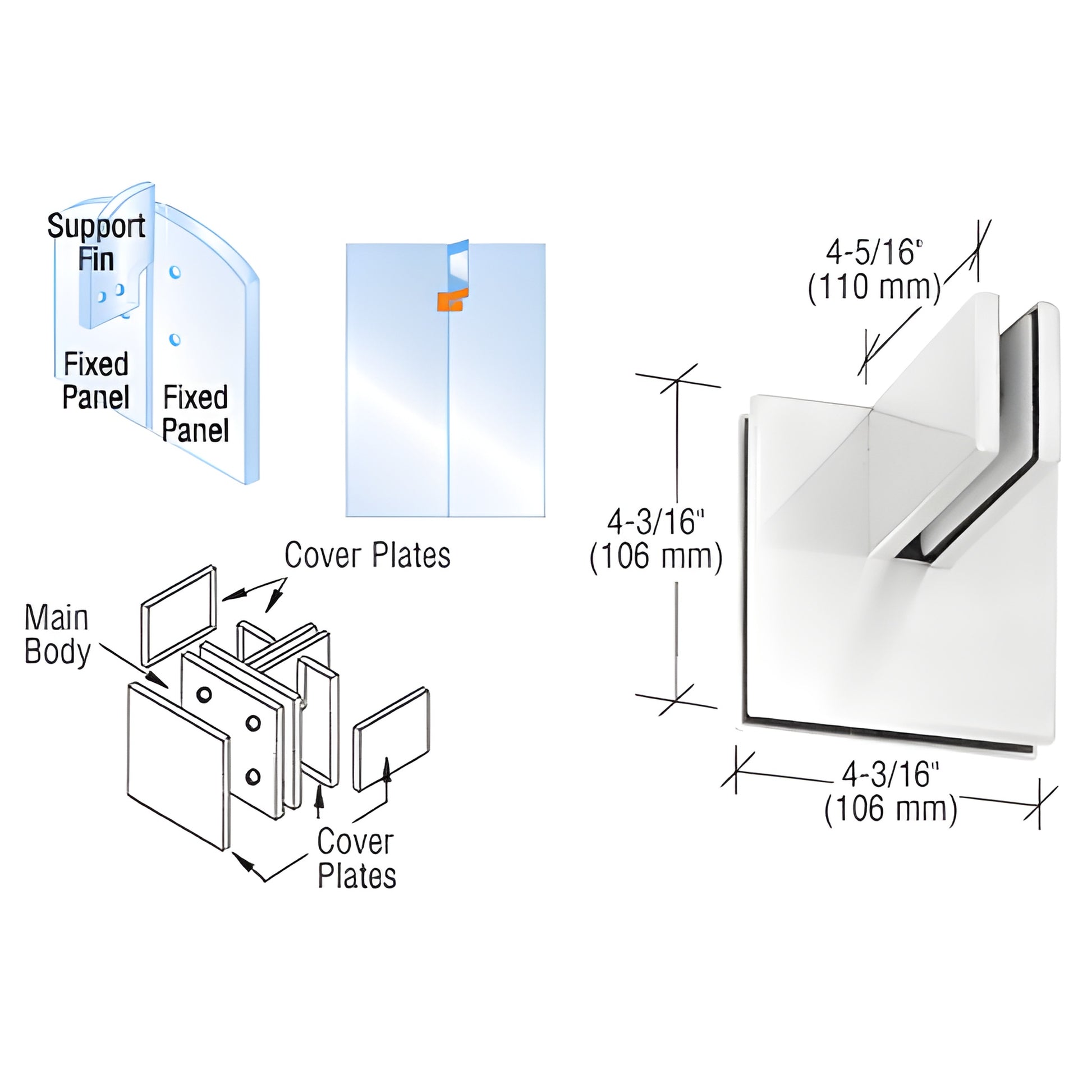

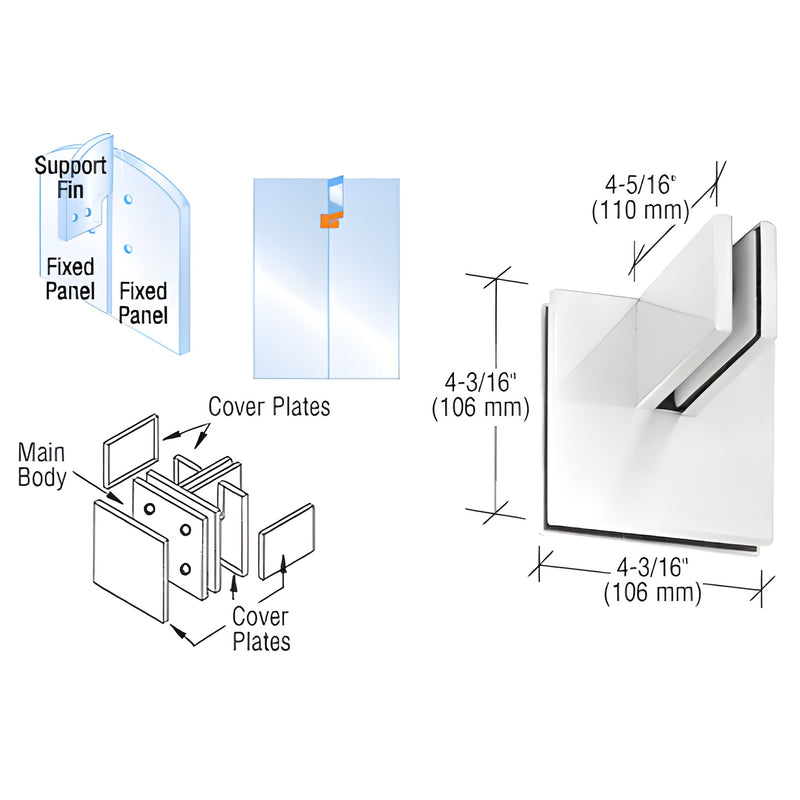

This CRL Patch Connector with Support Fin Bracket (SKU: PH81A) joins a two-lite glass junction where extra structural support is required. Designed for frameless glass systems, the connector secures a support fin to the ceiling (use with PH94 Ceiling Mounted Support Fin Bracket) to meet approved structural criteria. Follow GANA or manufacturer guidelines for support fin sizing and installation.
GLASS FABRICATION REQUIRED:
Six 3/4" (19 mm) diameter holes and corner notch
COMES WITH:
Template and instructions
Product Warning:
Not for use with laminated glass.
Specifications
Templates
