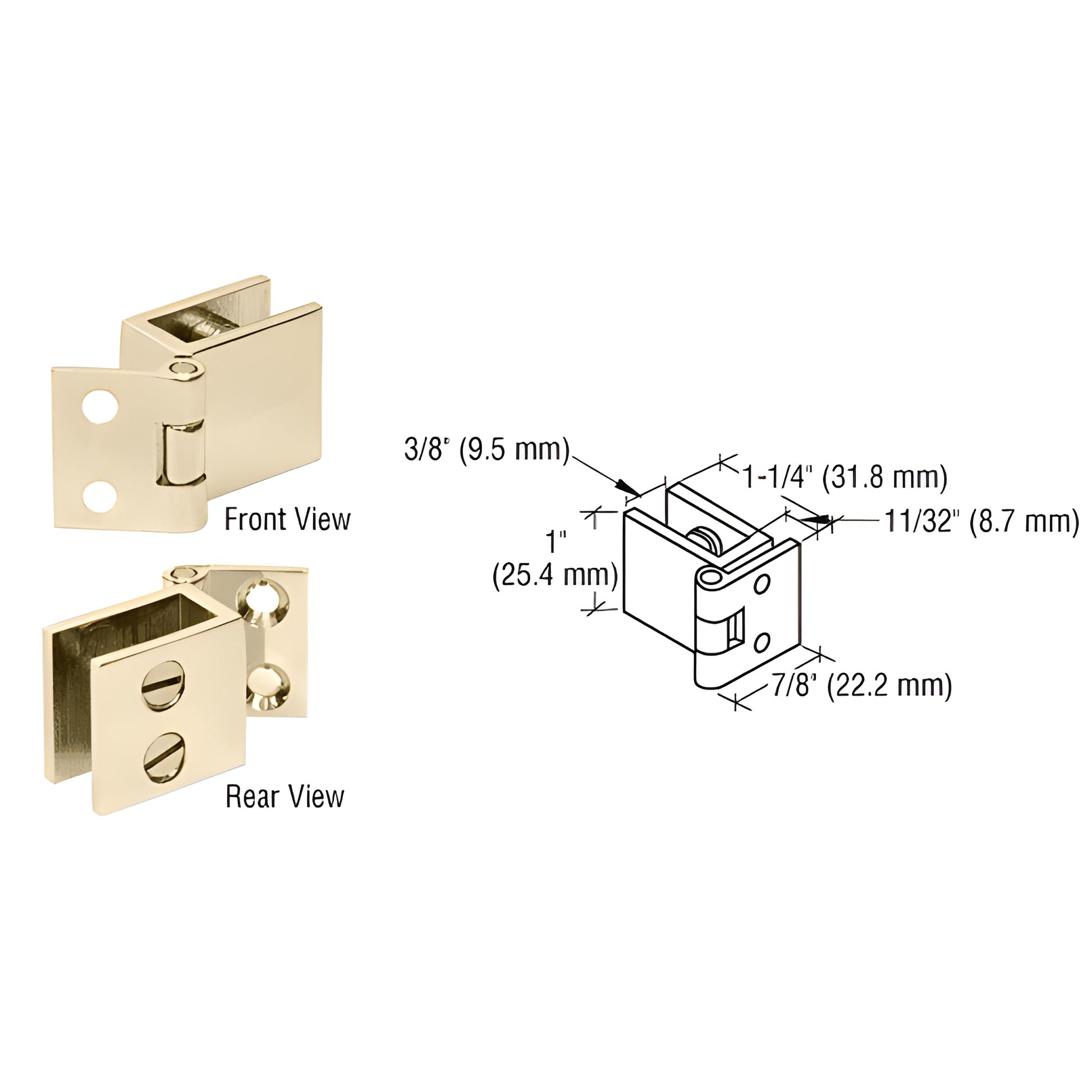

CRL Brass Set Screw Hinge for 1/4–5/16 in Glass Doors
CRL Brass Set Screw Hinge for 1/4–5/16 in Glass Doors
Regular price
$52.49 CAD
Regular price
Sale price
$52.49 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EH74
Shipping Weight: 4.48 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.48 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Brass
Glazing Thickness
1/4 in. To 5/16 in. (6mm To 8 mm)
Height
1 in. (25.4 mm)
Material
Brass
Maximum Door Width
16 in. (406.4 mm)
Pack Quantity
2
Weight Capacity
8 lbs. (3.6 kg)
Width
1-1/4 in. (31.8 mm)
Overview
- Available in several finishes for matching décor
- Fits 1/4" to 5/16" (6 to 8 mm) monolithic tempered glass
- No holes or cut-outs required — no-drill glass-to-wall hinge
- Plastic-tipped set screws secure glass without drilling
This CRL Hinge is a general-purpose glass-to-wall hinge designed for easy, no-drill installation. The glass is secured by plastic-tipped set screws to prevent damage. Recommended maximum door width: 16" (406 mm). Maximum weight capacity: 8 lb (3.6 kg). Two hinges per pack; includes matching finish wood screws.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time regardless of initial packaging or storage. For details, see the Brass Finish Disclaimer in the Technical References section.
Order EH74 for a reliable no-drill glass hinge—add to cart now.
