CRL Brass Slot-Mount Panel Standoff for 1/2 in Glass Panels
CRL Brass Slot-Mount Panel Standoff for 1/2 in Glass Panels
Regular price
$23.47 CAD
Regular price
Sale price
$23.47 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SM12BR
Shipping Weight: 2.88 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.88 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

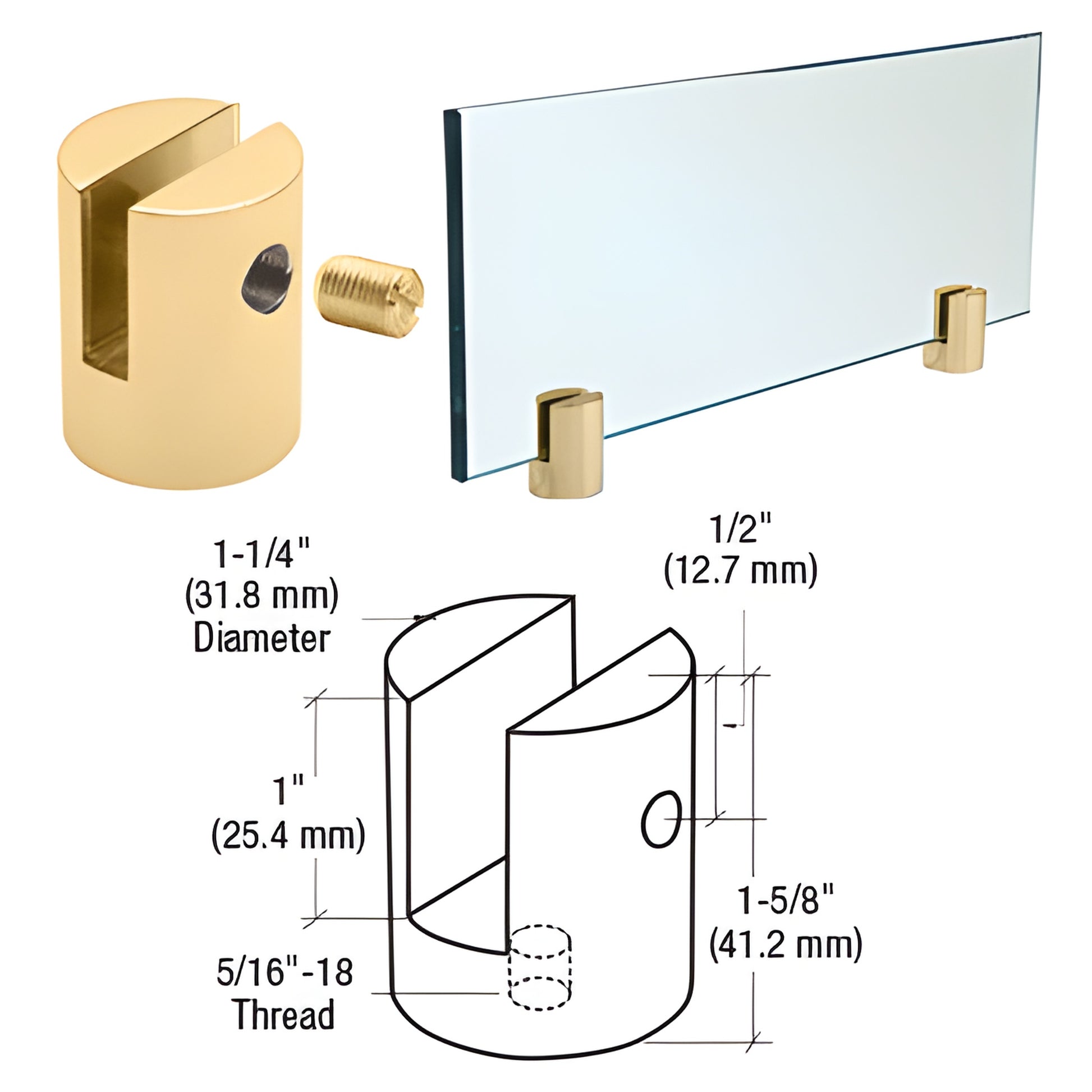

Description
Diameter
1-1/4 in. (31.8 mm)
Finish/Color
Polished Brass
Glazing Thickness
1/2 in. (12 mm)
Height
1-5/8 in. (41.3 mm)
Material
Brass
Overview
- Fits 1/2" (12 mm) thick material
- No drilling required for installation — ideal for retrofit projects
- Available in several architectural finishes
- Use with monolithic tempered glass
CRL Slot Mount Standoffs (SKU: SM12BR) are designed for vertical or horizontal mounting and provide a no-drill solution for installing shelves, glass panels, and display surfaces. The nylon-tip set screw secures panels without marring or cracking glass. This 1-1/4" (32 mm) diameter slot mount standoff holds 1/2" (12.7 mm) thick material; maximum recommended shelf projection from the wall is 5" (127 mm) when anchored to a wall stud.
Slot mount standoffs can be used independently or with Standard Standoff Bases. Available slot widths: 1/4" (6 mm), 3/8" (10 mm), and 1/2" (12.7 mm). These features make them suited for glass shelving, display hardware, and architectural mounting applications where a clean, modern standoff appearance is required.
Slot Mount Standoff Assemblies consist of:
1 Each standoff
1 Each nylon-tip set screw
1 Each clear gasket
Product Warning:
Due to diverse applications, weight capacity of standoff systems depends on wall or substrate anchoring and material strength. Confirm anchoring method and load requirements for your installation.
Brass Finish Advisory:
Brass finishes are durable but prone to oxidation and may develop a tarnished appearance over time. For details see the Brass Finish Disclaimer in the Technical References section.
Call or order online to get SM12BR slot mount standoffs for your next glass shelf or display installation.
