CRL Brite Anodized 1/2 in Deep U-Channel for Fixed Shower Door 144 in
Item# SDCD1212BA
Shipping Weight: 2.183 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.183 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

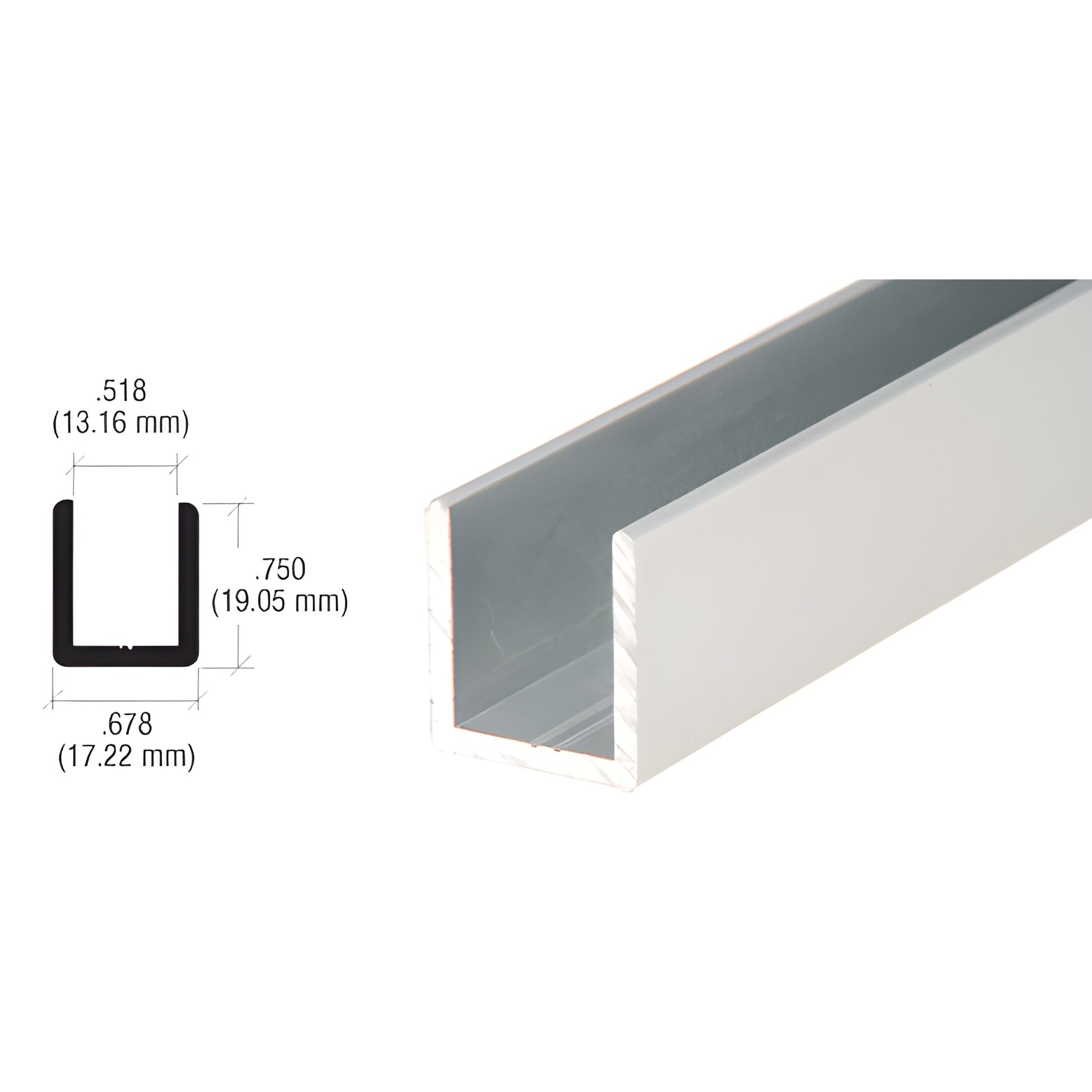

Finish/Color
Brite Anodized
Glazing Pocket Width
.518
Glazing Thickness
1/2 in. (12 mm)
Height
3/4 in. (19 mm)
Length
144 in. (3658 mm)
Material
Aluminum
Profile
Deep
Width
11/16 in. (17.1 mm)
- Deep pocket secures fixed panels of glass for walls, floors or ceilings
- Wet-glazed installation with clear silicone for a secure, clean finish
- Available widths fit 3/8" and 1/2" (10 and 12 mm) monolithic tempered glass
- Popular 144" (3.66 m) stock length for long runs
- End caps available to conceal and finish channel ends
- Can be used alone or as a top channel with a regular-depth U-channel at the bottom
This 3/4" (19 mm) tall profile CRL Deep U-Channel is designed for securing fixed glass panels to the wall, ceiling or floor. Widths suitable for 3/8" and 1/2" (10 and 12 mm) thick monolithic tempered glass are available, and each channel is individually wrapped to protect the finish. The 3/4" (19 mm) deep U-Channel is also commonly used as the top channel in installations where the glass is inserted into the top then lowered into a regular depth U-channel at the bottom. 144" (3.66 m) stock length. SKU: SDCD1212BA.
Product Warning:
Stock lengths must ship via common carrier unless specifically cut for UPS shipment.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and how your monitor is adjusted.
Order SKU SDCD1212BA or contact CRL Customer Service for pricing, cut-to-size options, and shipping details.
