CRL Bronze 13-1/2" Right Hand Casement Window Operator 1-5/8" and 3" Screw Holes
Item # H3571
$96.16
CAD
Handing (2)
- Left Hand
- Right Hand
Overview
| SKU | H3571 |
|---|---|
| Sold As | 1 Pack |
| Arm Length | 9-1/2 |
| Finish/Color | Bronze |
| Handing | Right Hand |
| Inner Mounting Hole | 1 5/8 |
| Outer Mounting Hole | 3 |
| Spline Size | 11/32 |
Description
- Use on Wood or Vinyl Windows

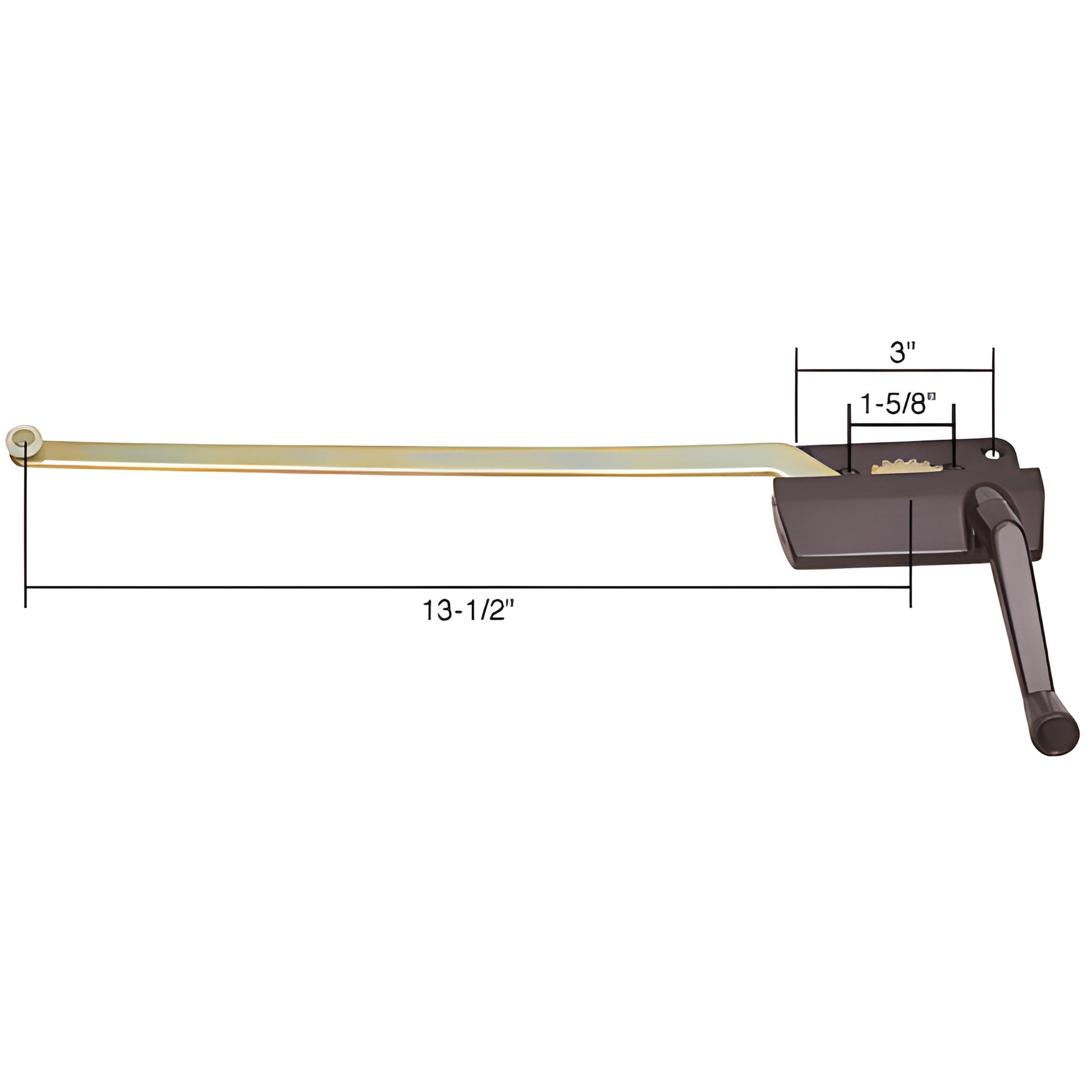

This CRL Casement Operator is used on wood and vinyl framed windows. The 13-1/2" (342.9 mm) arm is driven by a steel worm gear mechanism. The spindle diameter is 11/32" (8.7 mm).
NOTE: Handing is determined by the window hinge location from the inside of the window looking out.
Each package contains one operator, handle and installation screws.
