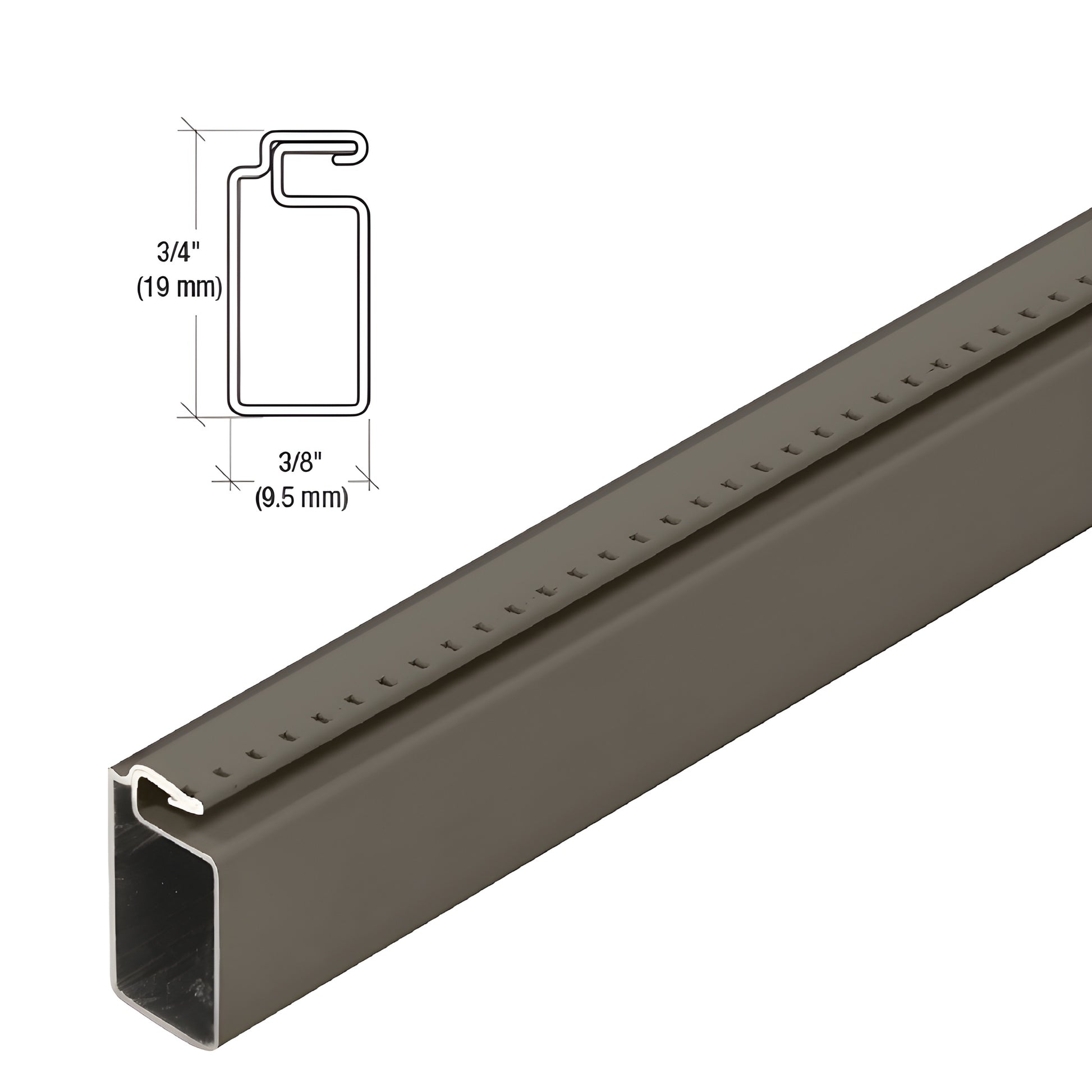

This CRL 3/4" x 3/8" (19 x 9.53 mm) screen frame extrusion (SKU: WSF3438B) is roll-formed from durable aluminum with a knurled lip and a cambered profile to maintain screen tension after installation. Designed for easy assembly, it accepts CRL .150" spline and works with CRL corners for both mitered and square-cut frames.
Compatible corners: WSC106 Aluminum Corners or WSPC106 Plastic Corners for mitered corners; SWSC38 Series Square Cut Plastic Corners for square-cut frames.
SPECIFICATIONS:
Material: Roll formed aluminum
Wall Thickness: .017" (approx. 0.43–0.48 mm) — see product tolerance note below
Spline Size: .150" (3.6 mm)
Compatible Corners: WSC106, WSPC106 (mitered); SWSC38 (square cut)
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment. Because of tolerances in coil stock and stretch during roll forming, actual thickness can vary by ±.002" (.05 mm). This variation is standard in the industry.
Most shipping weights are approximate. If you require an exact weight to determine shipping costs, contact CRL Customer Service before ordering. Product images are representative; colors may vary by monitor.
Order SKU WSF3438B today for a reliable aluminum screen frame extrusion suitable for sliding and storm window repairs
