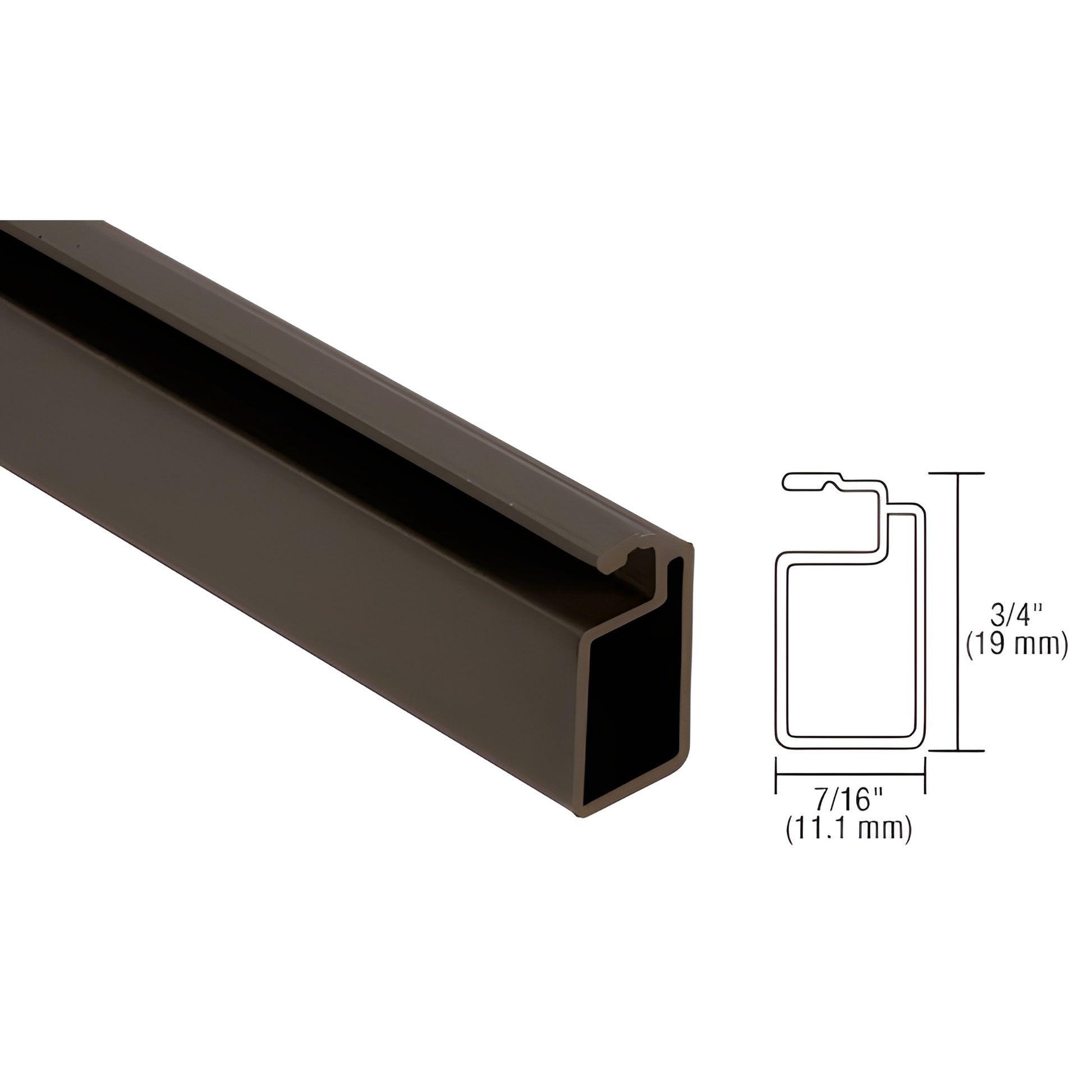

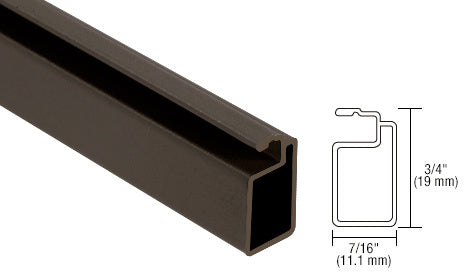

CRL Bronze 3/4" x 7/16" Extruded Screen Frame
Item# A347BRZ
Shipping Weight: 0.43
Shipping Limitations: Requires Cutting Instructions for UPS
Minimum Order Quantity: 1
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 0.43
Shipping Limitations: Requires Cutting Instructions for UPS
Minimum Order Quantity: 1
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
- Case Quantity100
- Finish/Color:Bronze
- Height3/4 in. (19 mm)
- Length12 ft. (3.66 m)
- Wall Thickness0.026 in. (.66 mm)
- Width7/16 in. (11 mm)
- Extruded with Built-In Camber for Even Screen Tension
- .026" (.66 mm) Wall Thickness
- Four Finishes to Choose From
- Individually Polywrapped Stock Lengths
Box-type extruded .026 mil (.66 mm) thickness Frame uses our WSC107 or WSPC107 Mitered Corners or our SWSC716 Square Cut Corners, and our .180" size Spline. Lengths are extruded with built-in camber (slightly bowed) for even screen tension.
SPECIFICATIONS:
Material: Extruded Aluminum
Wall Thickness: .026" (.66 mm)
Uses Spline Size: .180" (4.6 mm)
Uses Corners: WSC107 or WSPC107 for Mitered Corners; SWSC716 for Square Cut Corners
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
