CRL Brushed Chrome Grade 2 Passage Door Lever Lockset
Item# D25PASS
Shipping Weight: 1.9 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.9 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |

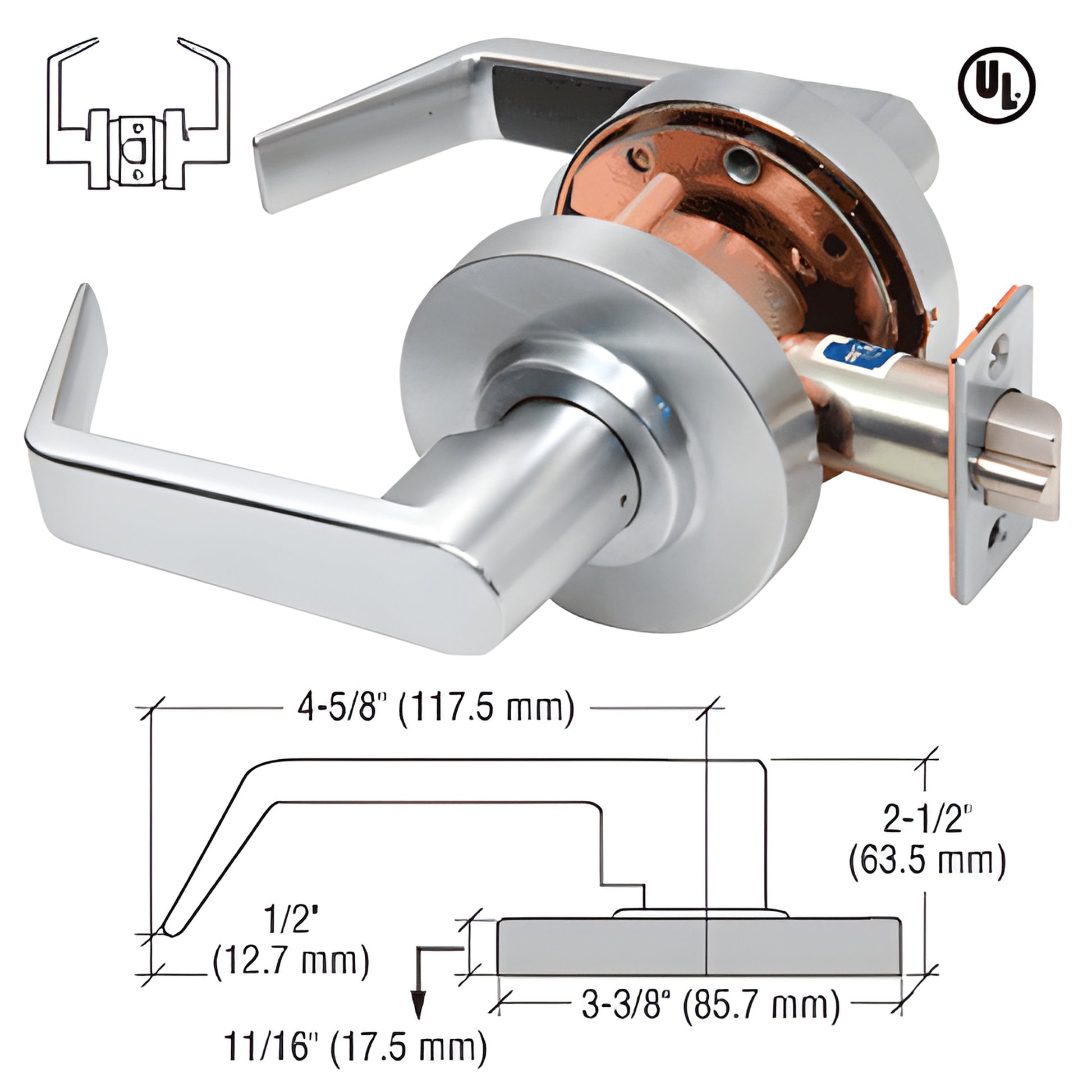

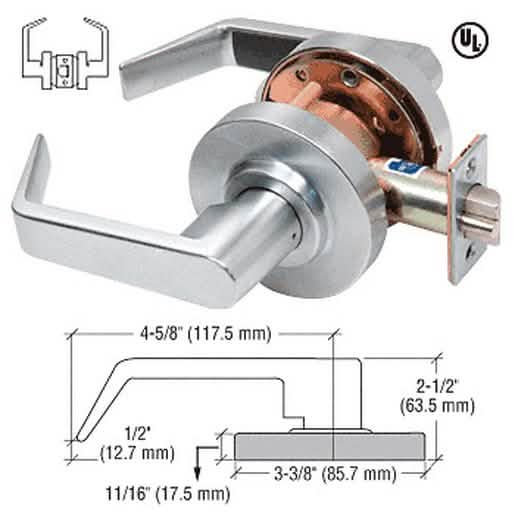

Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 2
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Brushed Chrome
Fire Rating Hour
3
Function
Passage
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Operation Type
F75 Passage Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Standard Duty Lever Lockset
UL Listed
Yes
- 3 Year Warranty
- ANSI A156.2 Grade 2
- UL Listed
These CRL heavy-duty commercial Grade 1 and 2 lever locksets are non-handed and reversible, designed for commercial and institutional doors. The locksets are UL Listed with a 3-hour fire rating and fit door thicknesses from 1-3/8" to 1-3/4" (35 to 45 mm) with a 2-3/4" (70 mm) backset. An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike is included, making these heavy-duty door locks ideal for retrofit and new construction projects.
PASSAGE FUNCTION DESCRIPTION: Both levers are always free—standard passage function for corridors and rooms where locking is not required.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before you complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.
SKU: D25PASS. For pricing or to order this fire-rated commercial lever lockset, contact CRL Customer Service or add to cart now.
