CRL Brushed Nickel Passage Interior Door Lever ANSI Grade 2
CRL Brushed Nickel Passage Interior Door Lever ANSI Grade 2
Regular price
$122.64 CAD
Regular price
Sale price
$122.64 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D25PASSBN
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 2
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Brushed Nickel
Fire Rating Hour
3
Function
Passage
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Operation Type
F75 Passage Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Standard Duty Lever Lockset
UL Listed
Yes
Overview
- 3 Year Warranty
- ANSI A156.2 Grade 2
- UL Listed

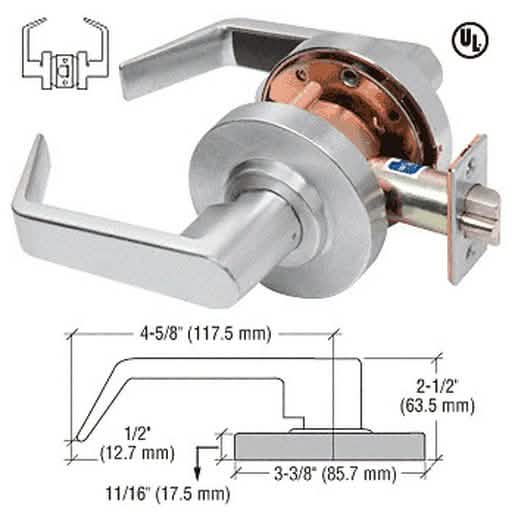

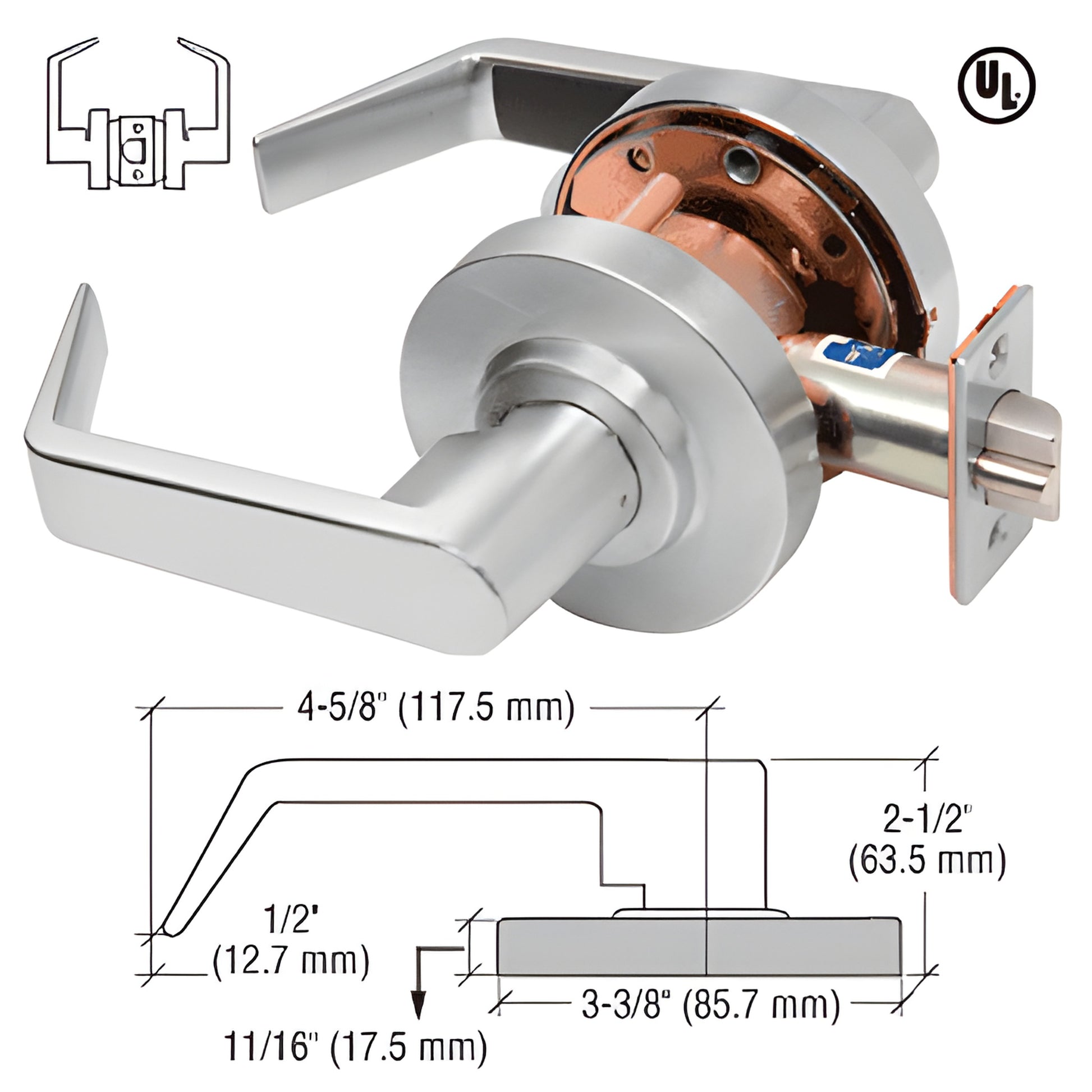

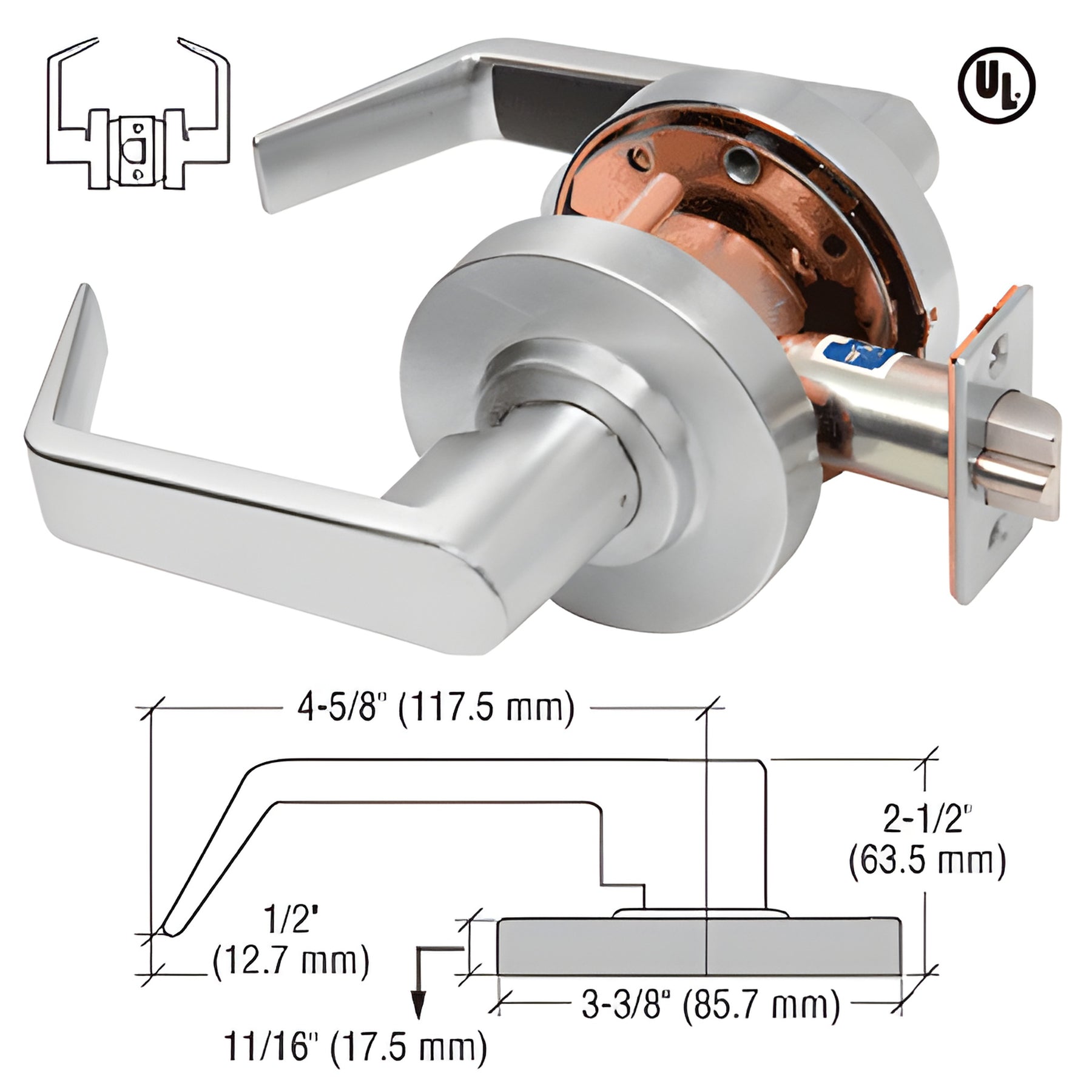

These CRL Heavy-Duty Commercial Grade 1 and 2 Lever Locksets (SKU: D25PASSBN) are non-handed, reversible, and designed for commercial use. UL Listed with a 3-hour fire rating, they fit standard door thicknesses from 1-3/8" to 1-3/4" (35 to 45 mm) and use a 2-3/4" (70 mm) backset. An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike is included for easy installation. These long-lasting, heavy-duty commercial lever locksets are ideal when you need a reliable passage lock for high-traffic interior doors.
PASSAGE FUNCTION DESCRIPTION: Both levers are always free (passage function).
Specifications
Installation Instructions
