CRL Matte Black Passage Interior Door Lever Lockset Grade 2
Item# D25PASSMBL
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 2
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Matte Black
Fire Rating Hour
3
Function
Passage
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Operation Type
F75 Passage Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Standard Duty Lever Lockset
UL Listed
Yes
- 3 Year Warranty
- ANSI A156.2 Grade 2
- UL Listed — 3‑hour fire rating

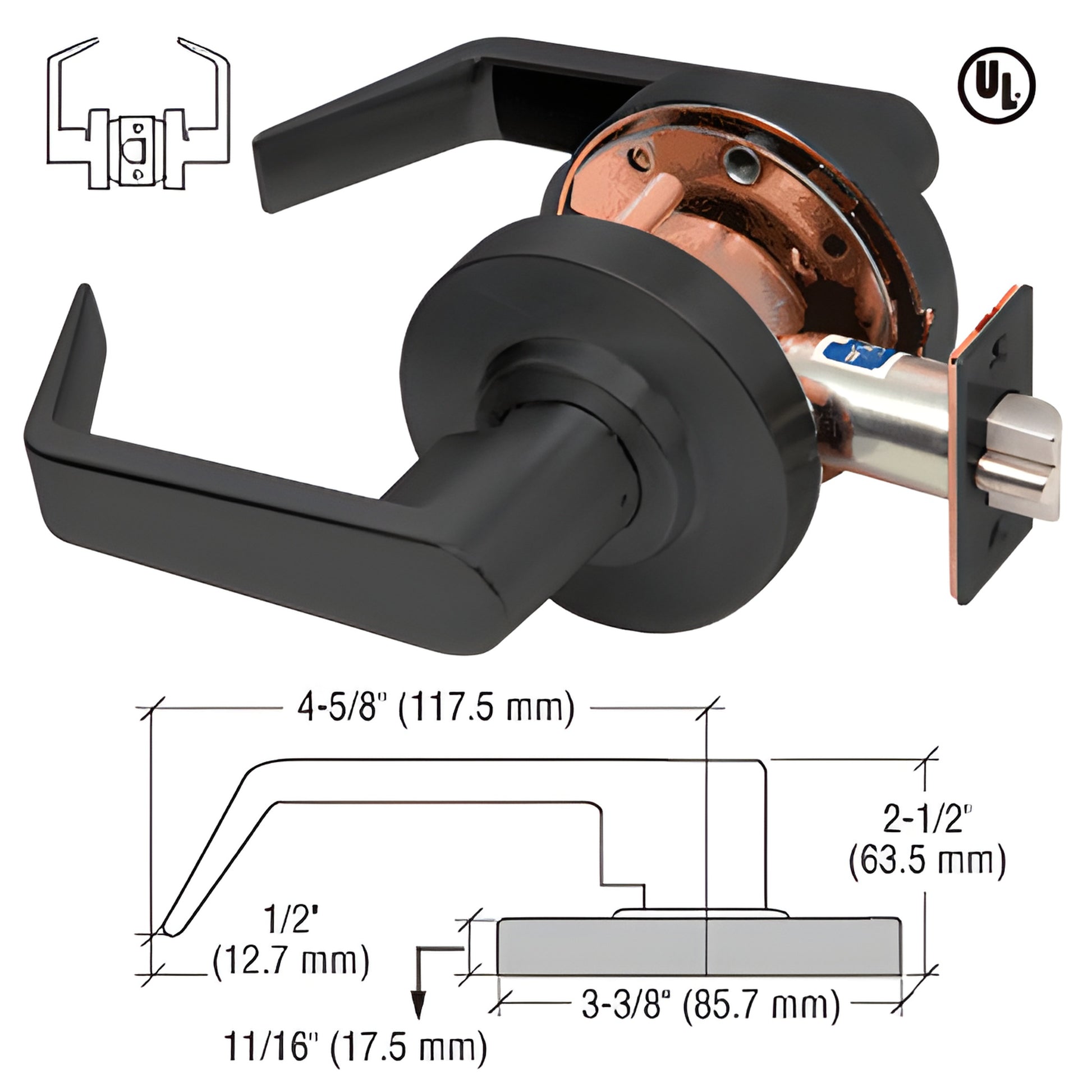

CRL Heavy-Duty Commercial Grade 1 and 2 Lever Locksets — non-handed, reversible commercial passage locksets designed for 1-3/8" to 1-3/4" (35–45 mm) door thickness with a 2-3/4" (70 mm) backset. Includes ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike. Ideal for commercial interior doors requiring a UL-listed, fire-rated passage lever.
Passage function description: Both levers are always free — commercial passage lever lockset for corridors, closets, and offices.
Most shipping weights are approximate and have not been verified. If you need exact weight to determine shipping costs before ordering, contact CRL Customer Service. Product images show the actual product or a close representation; colors may vary by monitor.
Why choose this lockset: Heavy-duty commercial construction, UL-listed 3-hour fire rating, non-handed reversible design, and ANSI-compliant hardware for reliable, code-ready installations.
Order the D25PASSMBL passage lever for dependable commercial performance.
