CRL Brushed Nickel 1/2" 90° Open Center Clamp Type E - Stair Railing Clamp
Item# RH1112BN
Shipping Weight: 5.104 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.104 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Base Type
Flat
Depth
3/4 in. (19 mm)
Finish/Color
Brushed Nickel
Glazing Thickness
1/2 in. (13 mm)
Height
1-7/8 in. (48 mm)
Material
Solid Brass
Width
1-7/8 in. (48 mm)
- Chrome, Brass, and Brushed Nickel finishes
- Custom finishes available on request
- For tempered glass thickness 1/2" (12 mm)
CRL 90 Degree Straight Open Center Clamp 'E' (SKU: RH1112BN) — reversible open center clamp designed for top or bottom midpoint placement on level runs. Ideal for tempered glass railing and partition assemblies using 1/2" (12 mm) glass.
P612** replacement screws
These glass and railing clamps are predrilled and ready for quick installation in metal and glass railings, partitions, room dividers, and commercial or residential railing projects. Two sizes accommodate 3/8" or 1/2" (10 or 12 mm) tempered glass. Stocked in three popular finishes; custom finishes available. Install by loosening the screw on one end, inserting the glass edge, then tightening. Use CRL Tuff-Pak Tape to cushion glass inside the clamp. For wood mounts use Screw Cat. No. 8X212DW; for metal mounts use Screw Cat. No. FHSTMSS. Drawings and templates for all clamps are available from CRL.

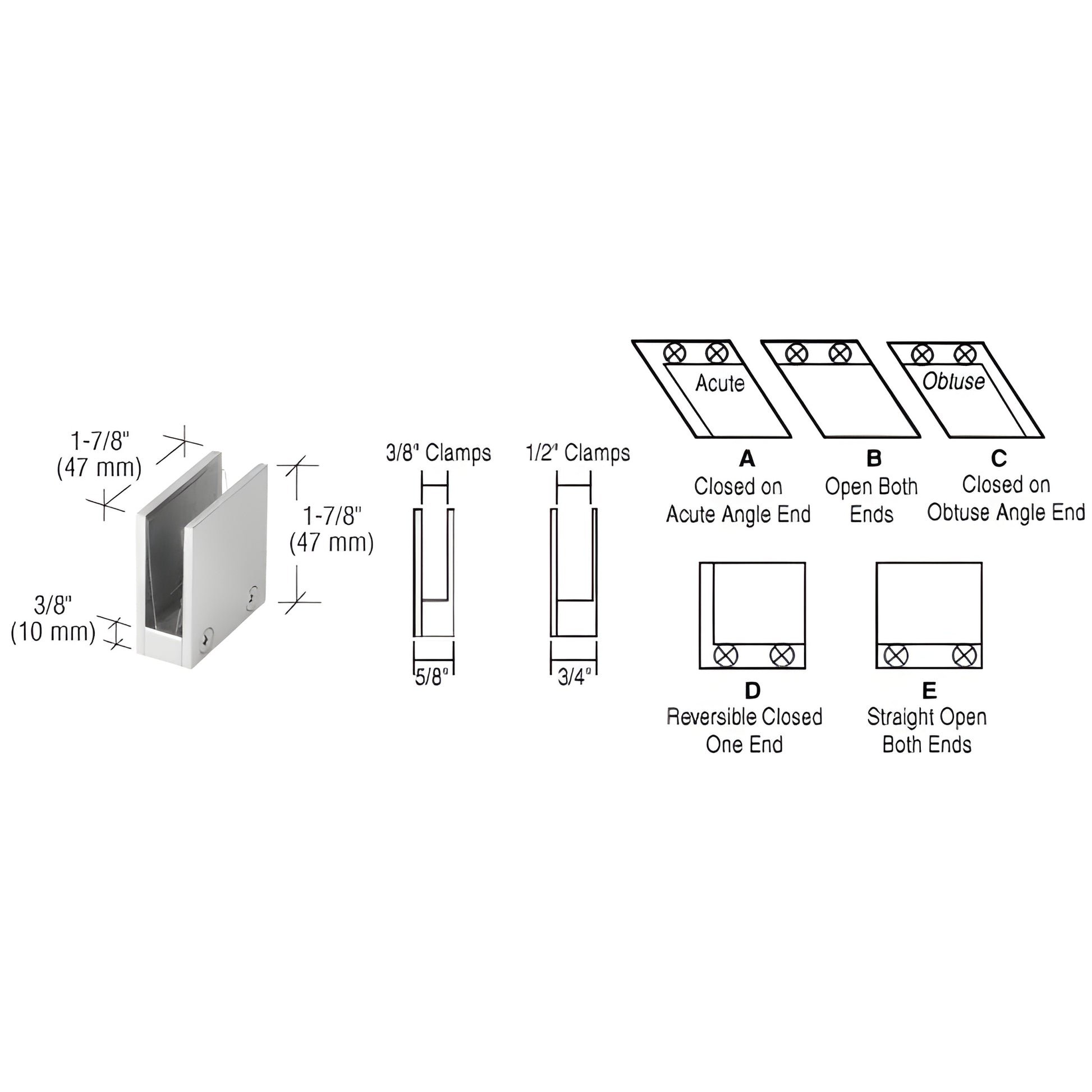

A: Acute End Clamp for slanted railings
B: Open Center Clamp for slanted railings
C: Obtuse End Clamp for slanted railings
D: Straight End Clamp for level railings
E: Straight Open Center Clamp for level railings
Most shipping weights are approximate and have not been verified. If you need an exact weight to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on your monitor.
Order RH1112BN or contact CRL Customer Service for custom finishes, drawings, and installation support.
