CRL Brushed Nickel 3/8" 90° Type E Glass Railing Clamp

• Chrome, Brass, and Brushed Nickel finishes — stocked for fast shipping
• Custom finishes available on request (matching and specialty plating)
• Fits tempered glass 3/8" (10 mm) thickness

CRL 90 Degree Straight Open Center Clamp 'E' (SKU: RH1138BN) — reversible open-center clamp designed for top or bottom midpoint mounting on level runs. Ideal as a glass clamp for 3/8" tempered glass in railings, partitions, and room dividers. Use as a brushed nickel glass clamp or chrome/brass option to match hardware.

P612** replacement screws

Our glass and railing clamps are predrilled and ready for installation in metal-and-glass railings, partitions, room dividers, and commercial or residential projects. Two clamp sizes accommodate 3/8" or 1/2" (10 or 12 mm) tempered glass. Simply loosen the screw on one end, insert the glass edge, and retighten. For cushioning use CRL Tuff-Pak Tape. For wood mounts use Screw Cat. No. 8X212DW; for metal mounts use Screw Cat. No. FHSTMSS. Drawings and templates for all clamps are available on request.

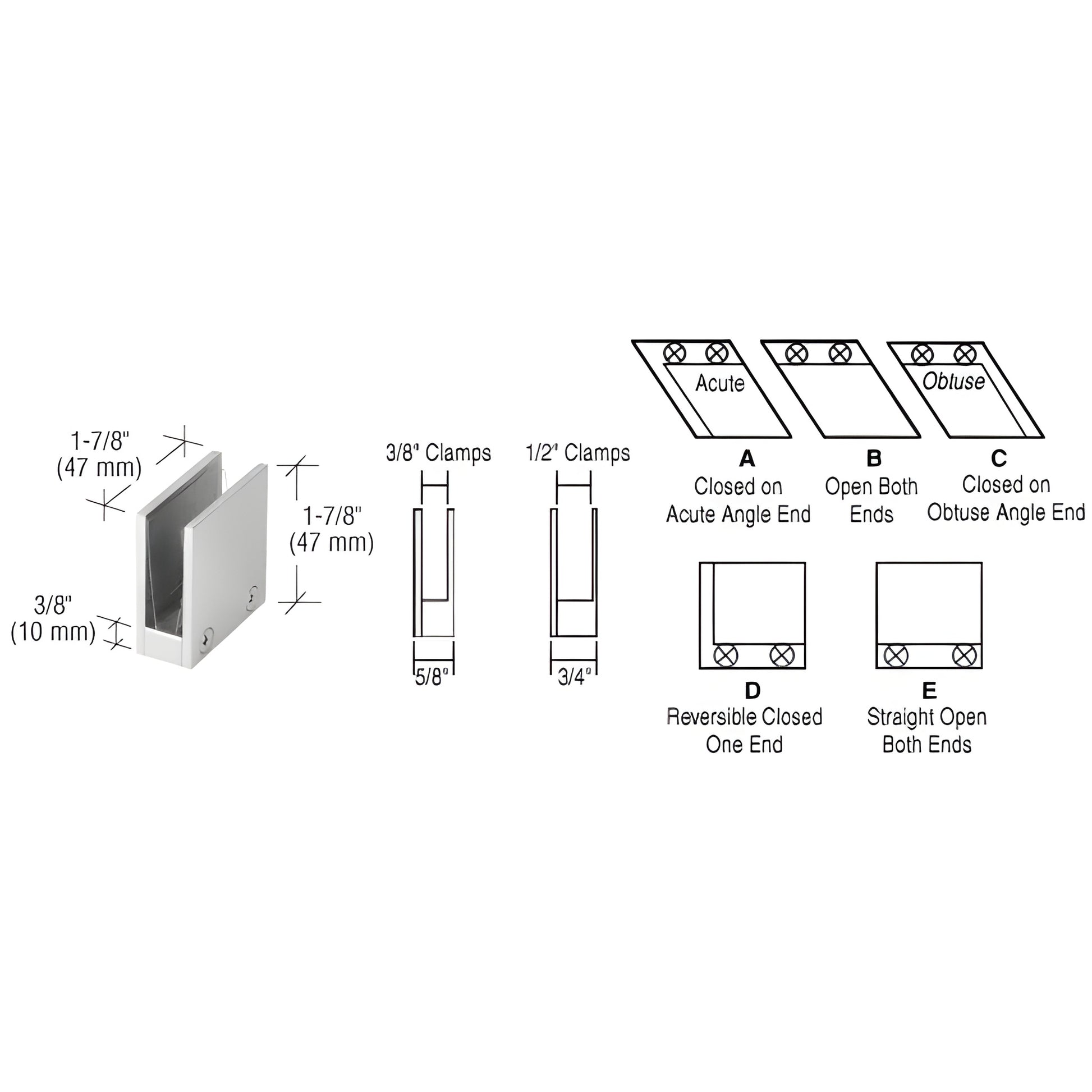

A: Acute End Clamp for slanted railings
B: Open Center Clamp for slanted railings
C: Obtuse End Clamp for slanted railings
D: Straight End Clamp for level railings
E: Straight Open Center Clamp for level railings
