CRL Chrome 3/8 in 90° Open-Center Rail Clamp Type E for Stair/Walkway
CRL Chrome 3/8 in 90° Open-Center Rail Clamp Type E for Stair/Walkway
Regular price
$28.21 CAD
Regular price
Sale price
$28.21 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# RH1138CH
Shipping Weight: 6.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Flat
Depth
5/8 in. (16 mm)
Finish/Color
Chrome
Glazing Thickness
3/8 in. (10 mm)
Height
1-7/8 in. (48 mm)
Material
Solid Brass
Width
1-7/8 in. (48 mm)
Overview
- Chrome, Brass, and Brushed Nickel Finishes
- Custom Finishes Available on Request
- For Glass Thickness 3/8" (10 mm) — fits 3/8" tempered glass
Use CRL 90 Degree Straight Open Center Clamp 'E' (SKU: RH1138CH) on the top or bottom midpoint of glass on level runs. This reversible straight open center clamp provides a secure hold for glass railings and glass partitions and is predrilled for fast installation.
P612** replacement screws
Our glass and railing clamps are predrilled and ready for use in metal and glass railings, stair railings, partitions, room dividers and other architectural glass projects. Two sizes accommodate 3/8" or 1/2" (10 or 12 mm) tempered glass. Stocked finishes include chrome, brass, and brushed nickel; custom finishes available. Installation is simple: loosen the screw on one end, insert the glass edge and tighten. Use CRL Tuff-Pak Tape to cushion glass in clamps. For wood mount attachments use Screw Cat. No. 8X212DW. For metal attachments use Screw Cat. No. FHSTMSS. Drawings and templates for all clamps are available on request.

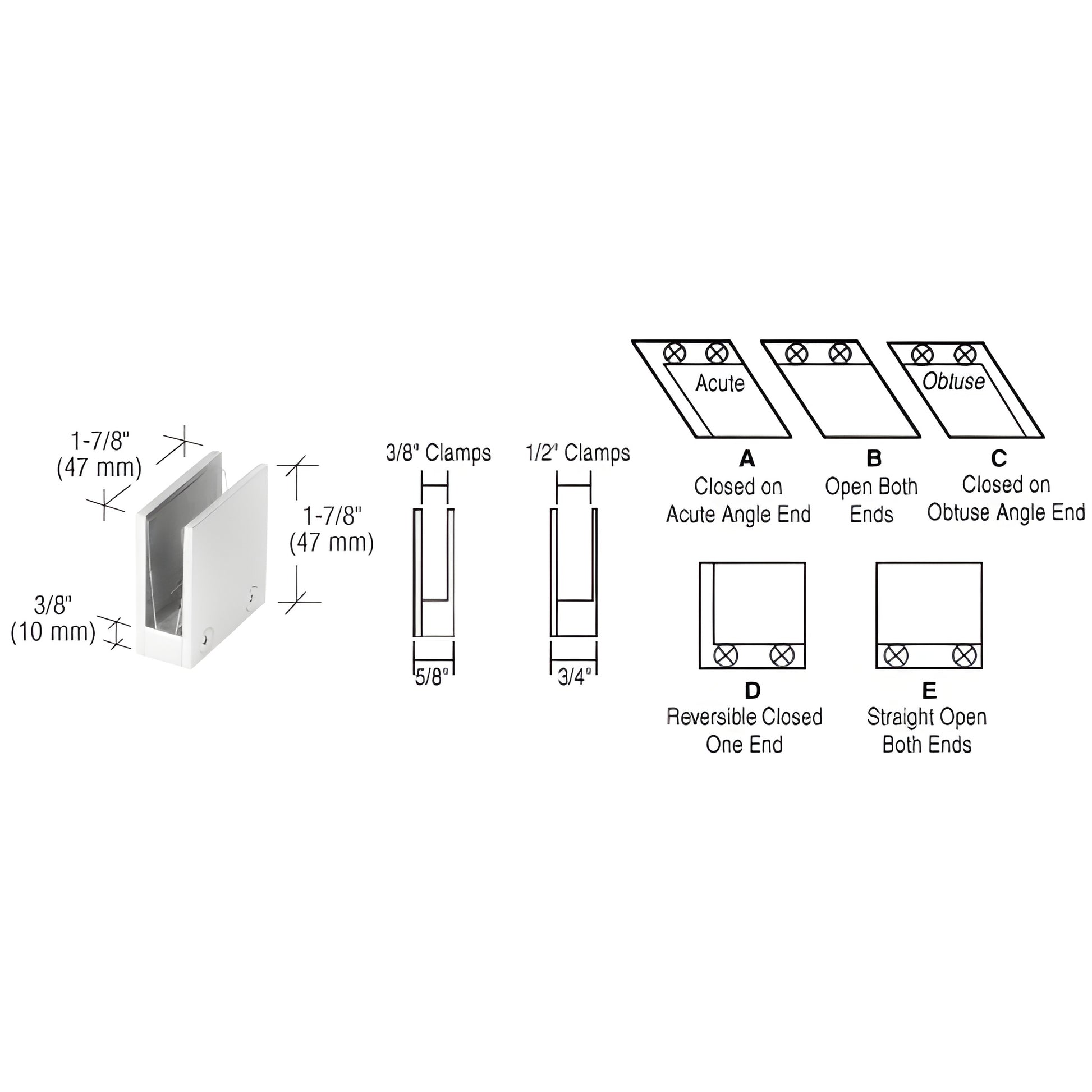

A: Acute End Clamp for Slanted Railings
B: Open Center Clamp for Slanted Railings
C: Obtuse End Clamp for Slanted Railings
D: Straight End Clamp for Level Railings
E: Straight Open Center Clamp for Level Railings
Order RH1138CH today for a predrilled, reversible straight open center clamp that fits 3/8" tempered glass — contact us for custom finishes or technical drawings.
