CRL 48 in Brushed Nickel Sliding Door Track Assembly w/ Nylon Wheels

• Available in Three Convenient Pre-Cut Lengths for Sliding Doors (36", 48", 72")
• Combination Bottom Track for Accurate Panel Alignment
• Satin Anodized and Brushed Nickel Finishes — corrosion-resistant sliding door hardware

The CRL Deluxe Track Assembly is a smooth-working, reliable track system for pre-cut sliding door installations. Offered in 36", 48", and 72" (914 mm, 1.22 m, and 1.83 m) lengths, these cut-to-length extrusions reduce installation time and material waste. The 'H' Bar is factory-cut to allow a 1-1/2" (38 mm) overlap, and the combination lower channel matches the upper channel design for consistent panel travel and improved seal performance.


Replacement parts available: CRL Cat. No. D332 end caps for the 'H' bar. For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C vinyl (sold separately). CRL also offers a selection of ratchet and plunger locks to secure sliding doors.

NOTE: Maximum suggested panel size is 36" W x 48" H (914 mm x 1.22 m).

General Glass Cutting Guidelines: Glass Height = Opening Height minus 1-3/8" (35 mm).

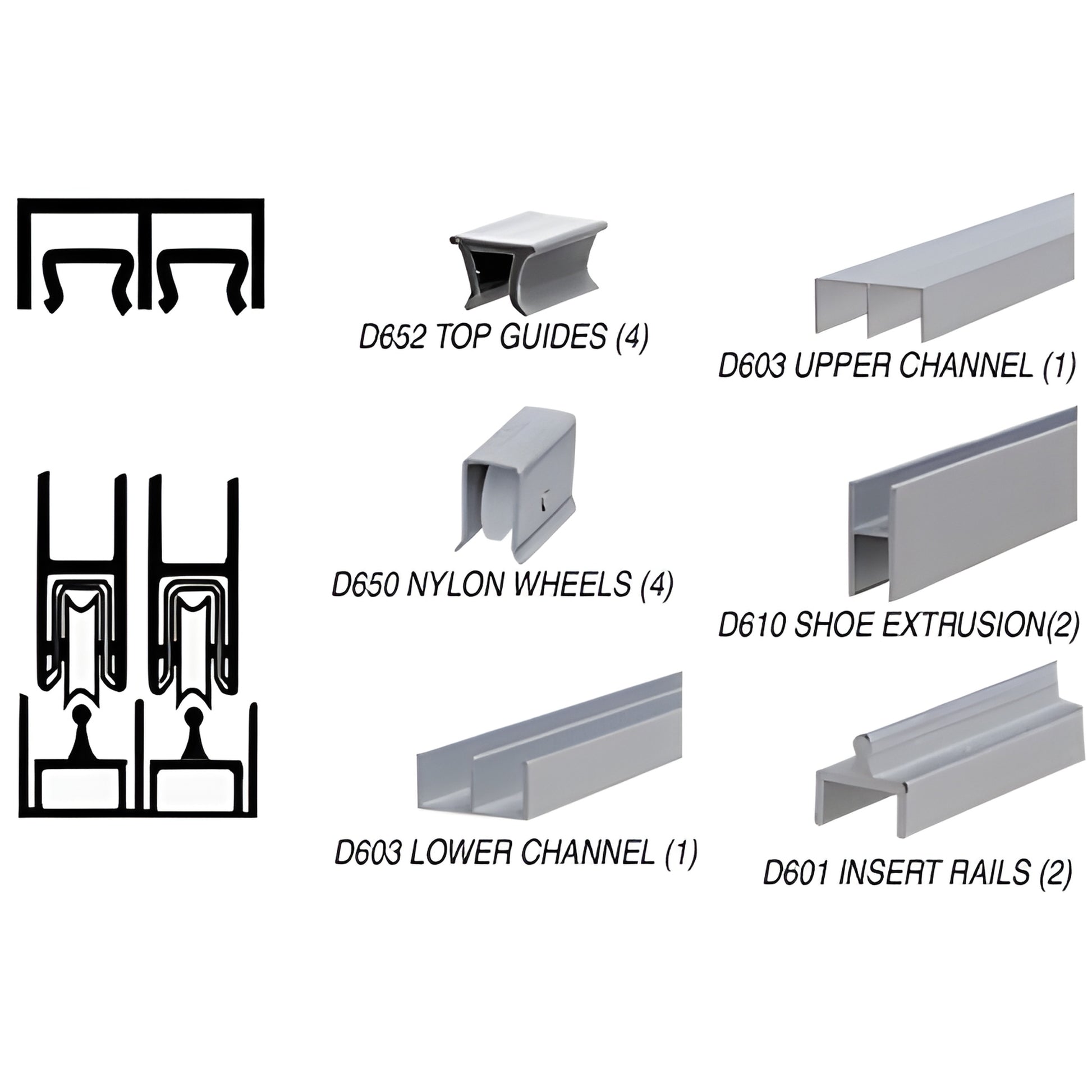

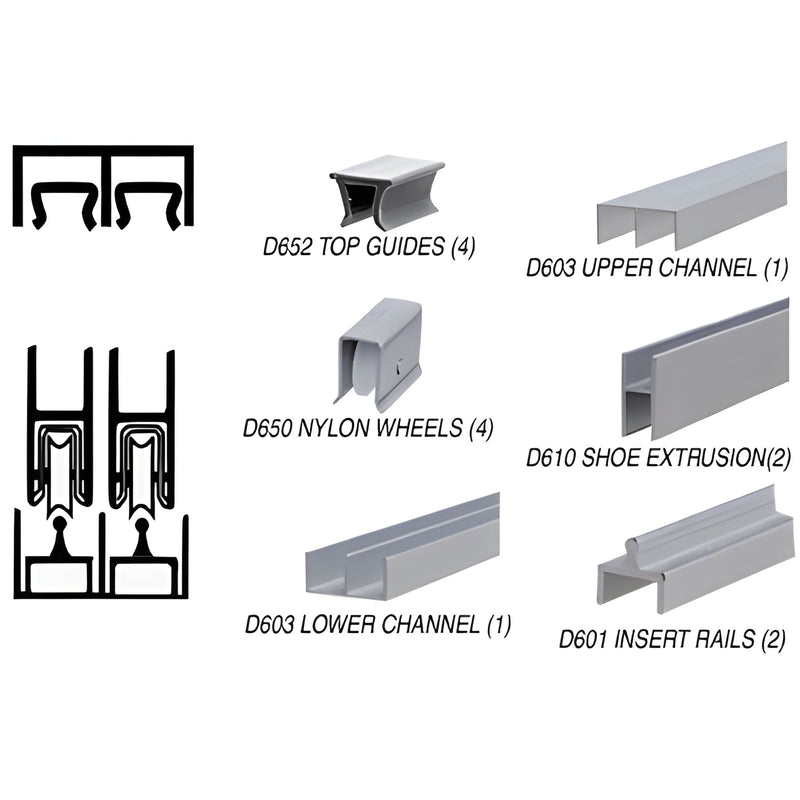

Components for D2301BN

D601 (x2)

D603 (x2)

D610 (x1)

D650 (x12)

D652 (x12)

D9650 (x1)
