CRL Brushed Nickel 66" Deluxe Shower Door Header Kit

• For 5/16", 3/8", and 1/2" (8, 10, and 12 mm) Glass

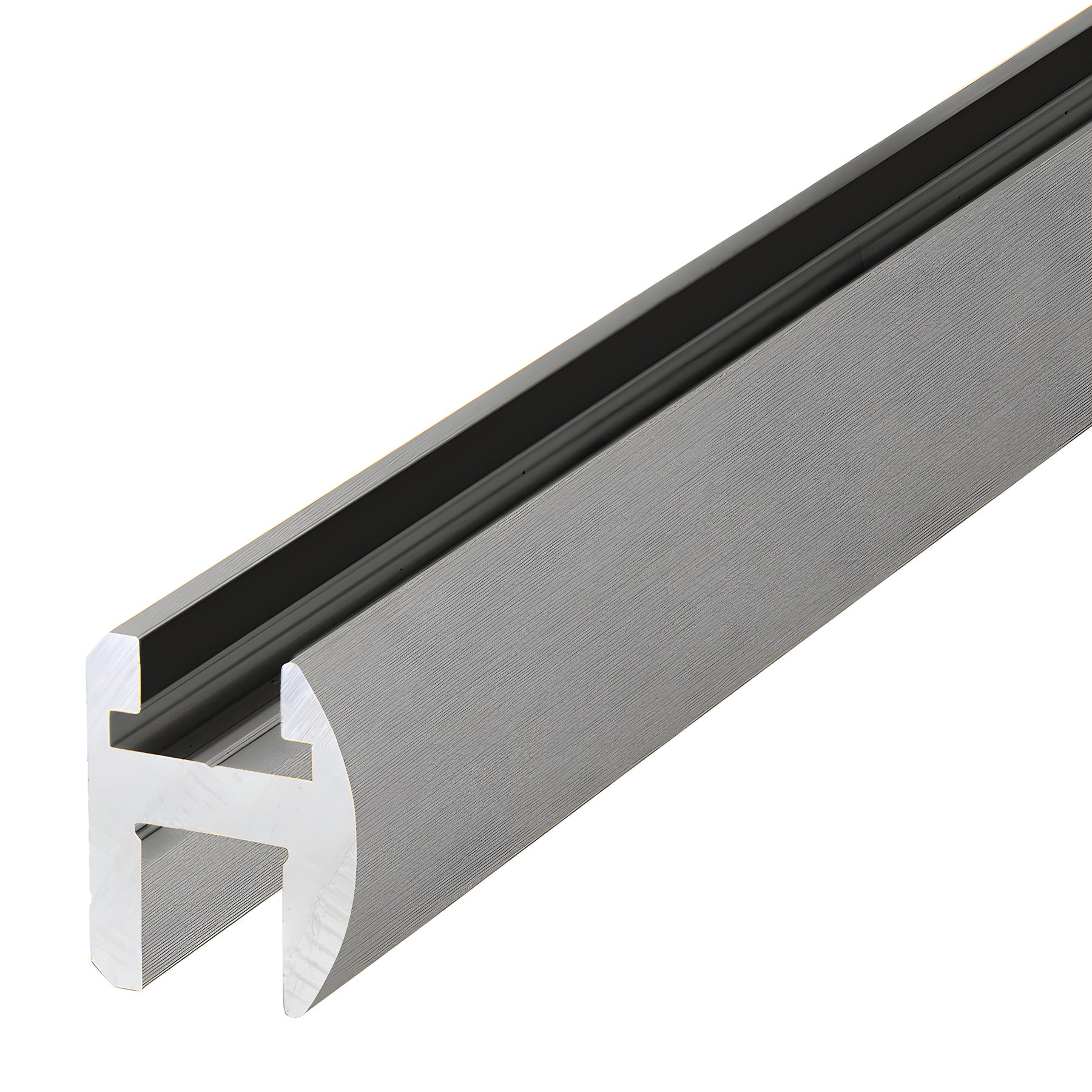

• One 66" (1.67 m), 98" (2.49 m) or 144" (3.66 m) Piece of Aluminum Header Extrusion
• One 36" (914 mm) Piece of Aluminum Snap-In Filler for Door Pocket
• One Pack of Two BWB2 Brass Wall Mounting Brackets
• Clear Vinyl for 5/16" (8 mm) and 3/8" (10 mm) Glass

The CRL Deluxe Header Kit will provide additional support and a level of safety while securing glass panels not reaching the ceiling. Deluxe Header Kits are designed to allow installers to do in-house fabrication using a selection of component parts. Sold in 66", 98" or 144" lengths, each Header Extrusion has a narrow 1-1/4" (32 mm) face to minimize the visible sight line. 90 degree, 135 degree or Adjustable Corners are sold separately. Also available is a special Adapter Block for use on pivot hinge installations. Brass Wall Brackets are included in each kit. A Blank Mounting Bracket is offered separately for installations where the Header does not meet the wall at 90 degree, and the standard Wall Mounting Brackets cannot be used.


This Header Kit is adaptable to Senior Prima, Senior Cardiff, Prima, Cardiff, Rondo or Shell Hinges, if using the Kit with Top and Bottom Mount Pivot Hinges.

EACH DELUXE HEADER KIT CONTAINS:

66" (1.67 m), 98" (2.49 m) or 144" (3.65 m) Piece of Header Extrusion

36" (.91 m) Piece of Snap-In Filler for Door Pocket

Vinyl for 5/16" (8 mm) and 3/8" (10 mm) Glass [not needed for 1/2" (12 mm) Glass]

Pack of BWB2 Brass Wall Mounting Brackets (Pack includes two Brackets)

NOTE: If choosing to use a Header Kit with 1/4" (6 mm) glass, Cat. No. HV140 Clear Vinyl may be ordered separately.
